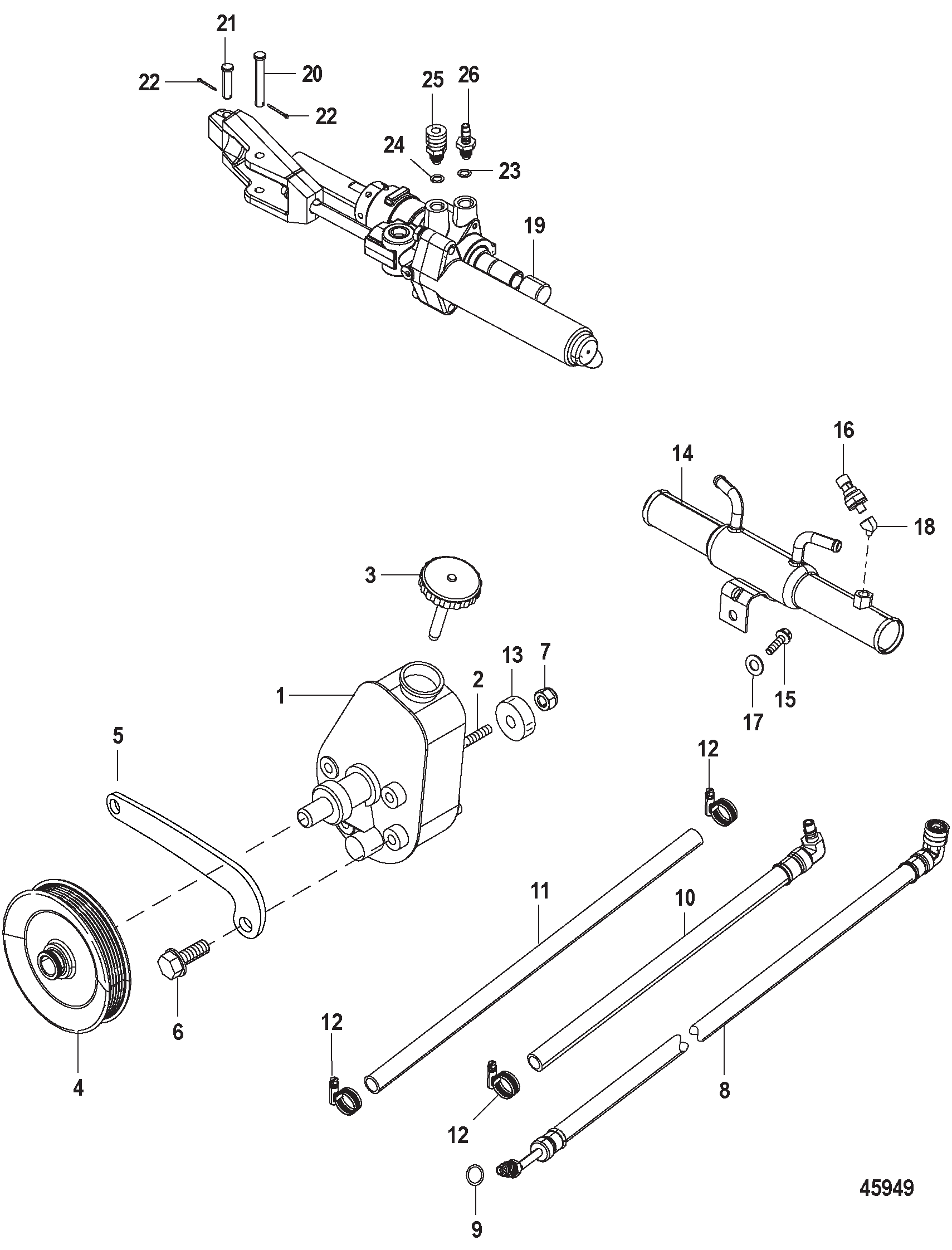

| 1 |
0000 |
OEM: 525-16792A39, Sierra: 676-18-7508 |
PUMP ASSEMBLY Power Steering |
|
1 |
|
| 2 |
0016 |
OEM: 525-16-41877 |
STUD (M10) |
|
2 |
|
| 3 |
0036 |
OEM: 525-36-95805 |
CAP |
|
1 |
|
| 4 |
0000 |
OEM: 525-861578, Sierra: 676-18-8297 |
PULLEY |
|
1 |
|
| 5 |
0000 |
OEM: 525-8M2021996 |
BRACKET Power Steering |
|
1 |
|
| 6 |
0010 |
OEM: 525-10-40001188 |
SCREW (M10 x 20) |
|
1 |
|
| 7 |
0011 |
OEM: 525-11-90517 |
NUT (M10) |
|
2 |
|
| 7 |
0011 |
OEM: 525-11-8M2000545 |
NUT (M10) Stainless Steel |
(SEACORE) |
2 |
|
| 8 |
0032 |
OEM: 525-32-866685 |
HOSE Female Quick Connect (Fittings on Both Ends) |
|
1 |
|
| 8 |
0032 |
OEM: 525-32-866509 |
HOSE Pressure (Fittings on Both Ends) |
(SEACORE) |
1 |
|
| 8 |
0032 |
OEM: 525-32-866689 |
HOSE Female Quick Connect (Fittings on Both Ends) |
Jackshaft Models |
1 |
|
| 9 |
0025 |
OEM: 525-25-89879 |
O-RING (.301 x .064) |
|
1 |
|
| 10 |
0032 |
OEM: 525-32-865390015 |
HOSE Male Quick Connect (Fitting on One End) |
|
1 |
|
| 10 |
0032 |
OEM: 525-32-865390134 |
HOSE Male Quick Connect (Fitting on One End) |
Jackshaft Models |
1 |
|
| 11 |
0032 |
5251914 |
HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37 Inch) |
|
1 |
|
| 12 |
0054 |
OEM: 525-54-815504105 |
CLAMP Worm Gear (11-18 mm) Hose |
|
3 |
|
| 13 |
0023 |
OEM: 525-23-905201 |
SPACER (.750 x .250) |
|
1 |
|
| 14 |
0000 |
OEM: 525-863820T1 |
COOLER Power Steering |
|
1 |
|
| 15 |
0010 |
OEM: 525-10-816585 |
SCREW (.312-18 x .875) |
|
1 |
|
| 16 |
0000 |
881879010 |
SENSOR |
|
1 |
|
| 17 |
0013 |
OEM: 525-13-72521 |
LOCKWASHER Internal Tooth |
|
1 |
|
| 18 |
0022 |
OEM: 525-22-29085 |
FITTING Elbow (45 Degree) |
Closed Cooling |
1 |
|
| 19 |
0000 |
866200A01 |
CYLINDER ASSEMBLY Power Steering |
|
1 |
|
| 20 |
0017 |
OEM: 525-17-15878 |
PIN Clevis Long |
|
1 |
|
| 21 |
0017 |
OEM: 525-17-16419 |
PIN Clevis Short |
|
1 |
|
| 22 |
0018 |
OEM: 525-18-46950 |
COTTER PIN |
|
2 |
|
| 23 |
0025 |
OEM: 525-25-806232 |
O-RING (.239 x .064) |
|
1 |
|
| 24 |
0025 |
OEM: 525-25-89879 |
O-RING (.301 x .064) |
|
2 |
|
| 25 |
0022 |
OEM: 525-22-865415 |
FITTING |
|
1 |
|
| 26 |
0022 |
OEM: 525-22-865414001 |
FITTING |
|
1 |
|
| NS |
0019 |
8079921 |
COVER Hose Clamp End |
(.25 Inside Diameter) |
AR |
|
| NS |
0019 |
8079923 |
COVER Hose Clamp End |
(.375 Inside Diameter) |
1 |
|
| NS |
0000 |
OEM: 525-77054 |
TIE STRAP (14.50 Inches) |
|
1 |
|
