4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - CARBURETOR (WEBER)

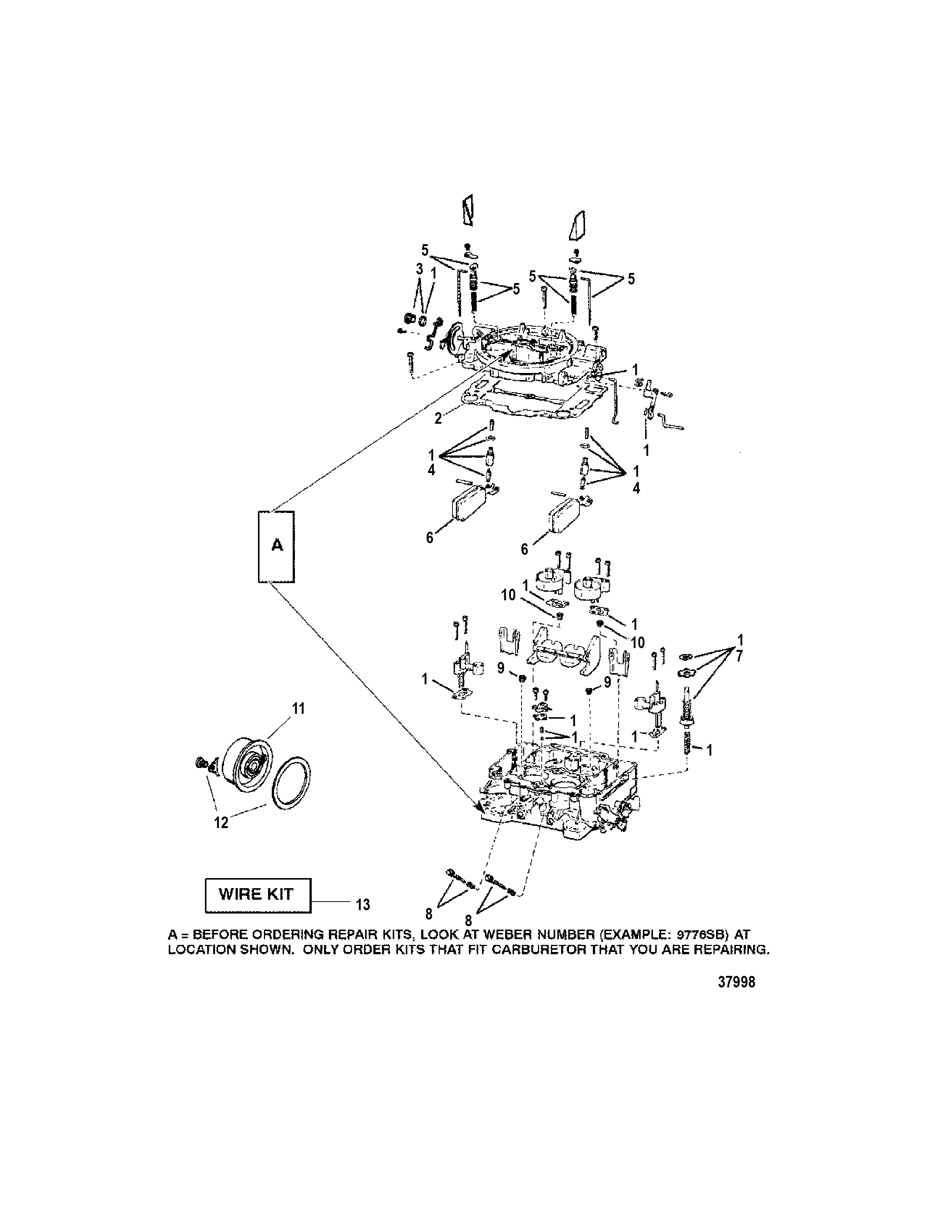

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-835076, Sierra: 676-18-7749 OVERHAUL KIT (9666) 1
1 0000 852947 OVERHAUL KIT (9667) SWISS EMISSIONS (BSO1 and SAV1) 1
2 0027 OEM: 525-27-809077 GASKET   1
3 0000 OEM: 525-811533 FITTING KIT Inlet   1
4 0000 OEM: 525-823727, GLM: 700-40780 NEEDLE/SEAT KIT Inlet (9666) 2
4 0000 OEM: 525-811534, GLM: 700-40770 NEEDLE/SEAT KIT Inlet (9667) SWISS EMISS. (BSO1 and SAV1) 2
5 0000 835077 METERING ROD KIT   1
6 0000 811536 FLOAT KIT   2
7 0000 OEM: 525-811537 PLUNGER KIT Pump   1
8 0000 OEM: 525-811539 SCREW KIT Idle Mixture (9666) 2
8 0000 809072 SCREW KIT Idle Mixture (9667) SWISS EMISS. (BSO1 and SAV1) 2
9 0000 835078 JET Metering - Primary (9666) 2
9   803023 PRIMARY METERING JET (9667) SWISS EMISS. (BSO1 and SAV1) 2
10 0000 OEM: 525-823724 JET Metering - Secondary (9666) 2
10 0000 823723 SECONDARY METERING JET (9667) SWISS EMIS.(BSO1 and SAV1) 2
11 0000 809066 REPAIR KIT Electric Choke   1
12 0000 809095 RETAINER KIT Electric Choke   1
13 0084 809471A1 WIRE KIT   1
