4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - CARBURETOR AND THROTTLE LINKAGE (2 BARREL)

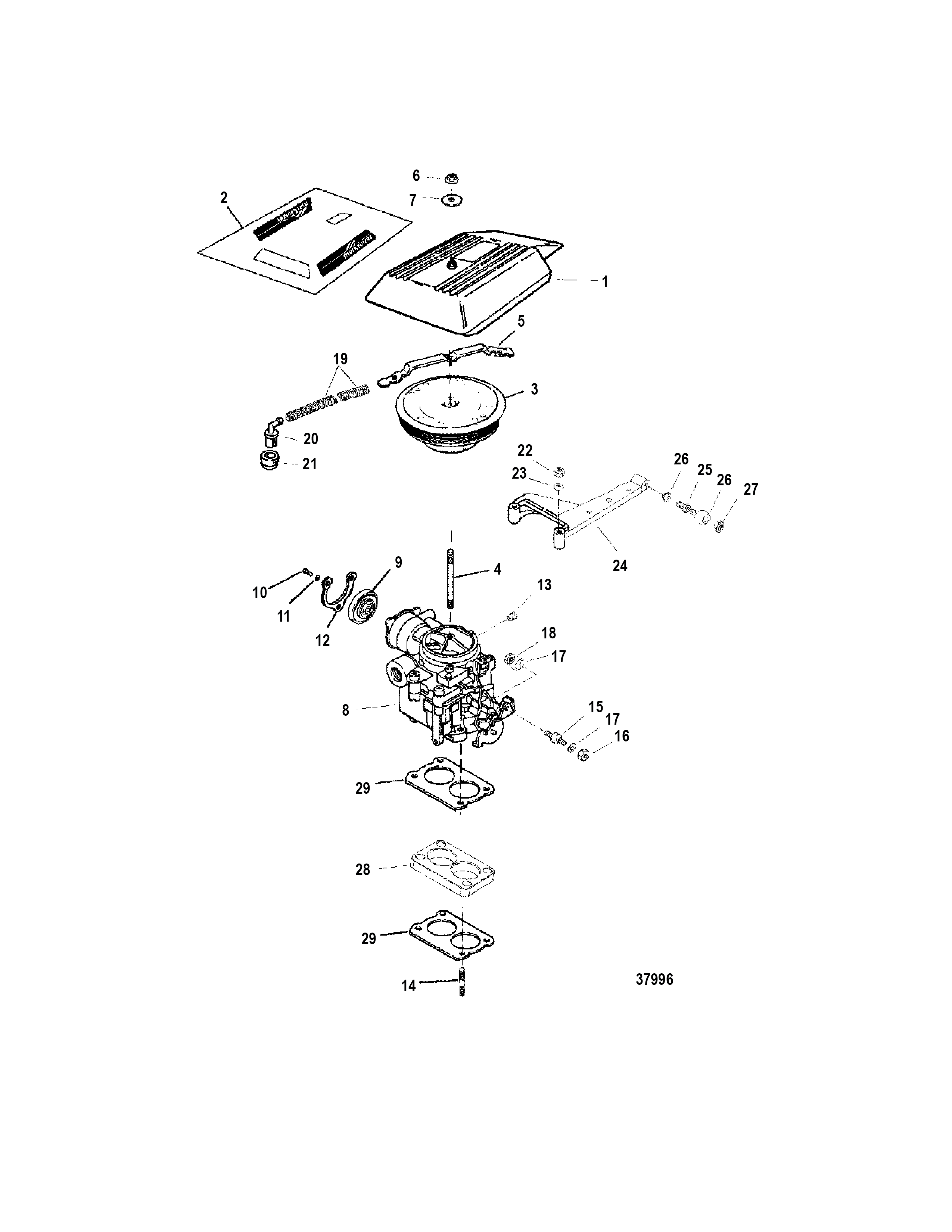

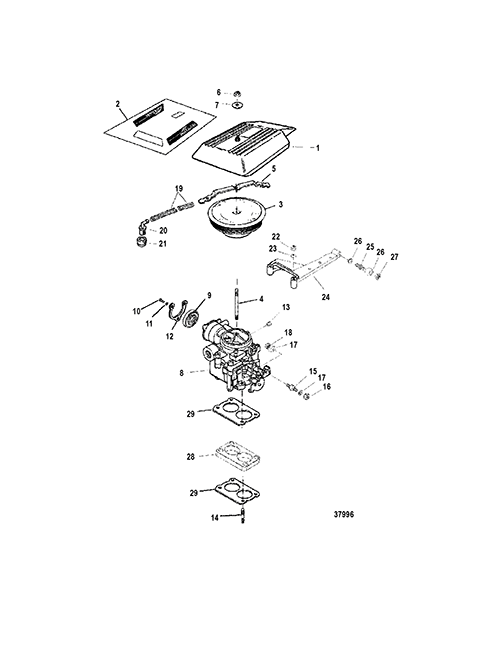

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD (1 PIECE)
- EXHAUST MANIFOLD AND EXHAUST ELBOW (2 PIECE)
- EXHAUST SYSTEM (USE WITH 1 PIECE MANIFOLD)
- EXHAUST SYSTEM (USE WITH 2 PIECE MANIFOLD)
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- Mercathode Components
- MISCELLANEOUS INFORMATION
- OIL PAN AND OIL PUMP
- OIL RESERVOIR BOTTLE AND BRACKET
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER (WITH 16521T ADAPTOR)
- REMOTE OIL FILTER (WITH 860091T ADAPTOR)
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SHIFT BRACKET (ALPHA ENGINES)
- SHIFT BRACKET (BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR PG260 and PG260-F1
- SWISS EMISSIONS PARTS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-18484A3 | COVER | 1 | ||
| 2 | 0037 | 812776A38 | DECAL SET Cover | 1 | ||
| 3 | 0000 | OEM: 525-805016A1, Sierra: 676-18-7234 | FLAME ARRESTOR | 1 | ||
| 4 | 0016 | OEM: 525-16-805295 | STUD (.250-20/.250-28 x Special) | 1 | ||
| 5 | 0000 | 805313 | RETAINER | 1 | ||
| 6 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 7 | 0012 | OEM: 525-12-86400 | WASHER | 1 | ||
| 8 | 3310 | OEM: 525-3310-807764A1 | CARBURETOR ASSEMBLY | (SEE "CARBURETOR (MERCARB - 2 BARREL)" FOR BREAKDOWN) | 1 | [1] |
| 9 | 0000 | 70125A1 | COVER Choke | 1 | ||
| 10 | 0010 | 33047 | SCREW | 3 | ||
| 11 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel | 3 | ||
| 12 | 0053 | OEM: 525-53-805140 | PLATE | 1 | ||
| 13 | 0022 | OEM: 525-22-56800 | PLUG Pipe (.0625-27) | 1 | ||
| 14 | 0016 | OEM: 525-16-65868 | STUD (.312-18/.312-24 x 2.120) | 2 | ||
| 14 | 0016 | OEM: 525-16-807849 | STUD (.312-18/.312-24 x 3.380) | 2 | ||
| 15 | 0016 | 96112 | STUD (.250-28 x 2.00) Throttle Cable Anchor | 1 | ||
| 16 | 0011 | 20361 | NUT (.250-28) | 1 | ||
| 17 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 18 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 19 | 0032 | 1589418 | HOSE Breather | 2 | ||
| 20 | 0000 | 97850 | ELBOW 90 Degree Breather | 2 | ||
| 21 | 0025 | OEM: 525-25-827152 | GROMMET | 2 | ||
| 22 | 0011 | 25594 | NUT (.9375-24) | 4 | ||
| 23 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) | 4 | ||
| 24 | 0000 | OEM: 525-805489T | BRACKET | 1 | ||
| 25 | 0016 | OEM: 525-16-38525 | STUD | 1 | ||
| 26 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 27 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 28 | 0000 | OEM: 525-807726A2 | ADAPTER | 1 | ||
| 29 | 0027 | 807982 | GASKET | 2 | [2] | |
| - | 0027 | 824326A96 | GASKET SET Overhaul | 1 |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
807764A 1QS
[2] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET
