4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - STARTER MOTOR PG260 and PG260-F1

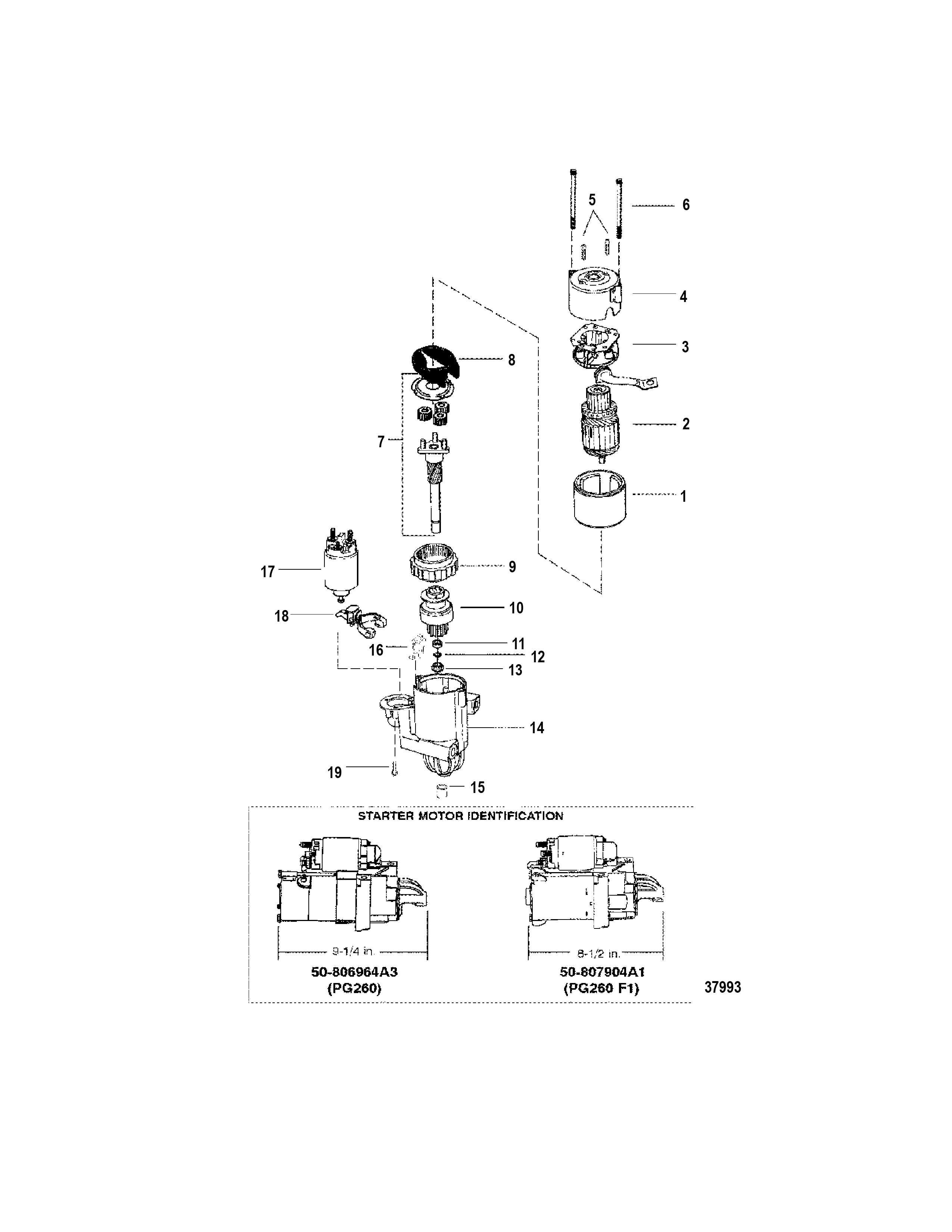

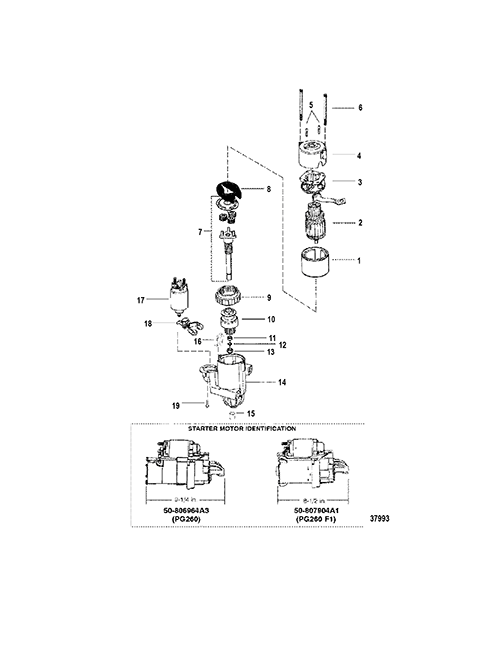

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD (1 PIECE)
- EXHAUST MANIFOLD AND EXHAUST ELBOW (2 PIECE)
- EXHAUST SYSTEM (USE WITH 1 PIECE MANIFOLD)
- EXHAUST SYSTEM (USE WITH 2 PIECE MANIFOLD)
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- Mercathode Components
- MISCELLANEOUS INFORMATION
- OIL PAN AND OIL PUMP
- OIL RESERVOIR BOTTLE AND BRACKET
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER (WITH 16521T ADAPTOR)
- REMOTE OIL FILTER (WITH 860091T ADAPTOR)
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SHIFT BRACKET (ALPHA ENGINES)
- SHIFT BRACKET (BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR PG260 and PG260-F1
- SWISS EMISSIONS PARTS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 806964A3 | STARTER MOTOR ASSEMBLY | PG260 | 1 | [1] |
| 1 | 0050 | 807904A1 | STARTER MOTOR ASSEMBLY | PG260-F1 | 1 | [2] |
| 2 | NSS | NOT SOLD SEPARATE Armature | 1 | |||
| 3 | NSS | NOT SOLD SEPARATE Brush Holder and Spring | 1 | |||
| 4 | NSS | NOT SOLD SEPARATE Frame | 1 | |||
| 5 | NSS | NOT SOLD SEPARATE Screw | 2 | |||
| 6 | NSS | NOT SOLD SEPARATE Thru Bolt | PG260 | 2 | ||
| 6 | 0016 | OEM: 525-16-803004 | THRU BOLT (EXTENDED) | PG260-F1 | 1 | |
| 6 | 0010 | 803005 | THRU BOLT | PG260-F1 | 1 | |
| 7 | NSS | NOT SOLD SEPARATE Shaft and Gear | 1 | |||
| 8 | NSS | NOT SOLD SEPARATE Gasket | 1 | |||
| 9 | NSS | NOT SOLD SEPARATE Gear | 1 | |||
| 10 | NSS | NOT SOLD SEPARATE Drive | PG260 | 1 | ||
| 10 | 0000 | 803003 | DRIVE | PG260-F1 | 1 | |
| 11 | 0000 | 33291 | COLLAR | 1 | ||
| 12 | 0053 | 33290 | RING Retaining | 1 | ||
| 13 | NSS | NOT SOLD SEPARATE Collar-Thrust | 1 | |||
| 14 | 0000 | 809459 | HOUSING | PG260 | 1 | |
| 14 | 0000 | 803001 | HOUSING Drive | PG260-F1 | 1 | |
| 15 | 0023 | 814476 | BUSHING | 1 | ||
| 16 | NSS | NOT SOLD SEPARATE Grommet | 1 | |||
| 17 | 0000 | OEM: 525-809463A1, Sierra: 676-18-5811, GLM: 700-72450 | SOLENOID KIT | 1 | ||
| 18 | NSS | NOT SOLD SEPARATE Lever | 1 | |||
| 19 | NSS | NOT SOLD SEPARATE Screw | 3 |
PART NOTES:
[1] - Alternate part numbers:
806964A 3QS
864340R02Reman
[2] - Alternate part numbers:
807904A 1QS
863007R01Reman
