Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
- |

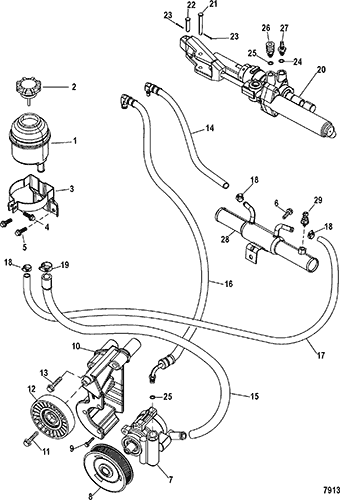

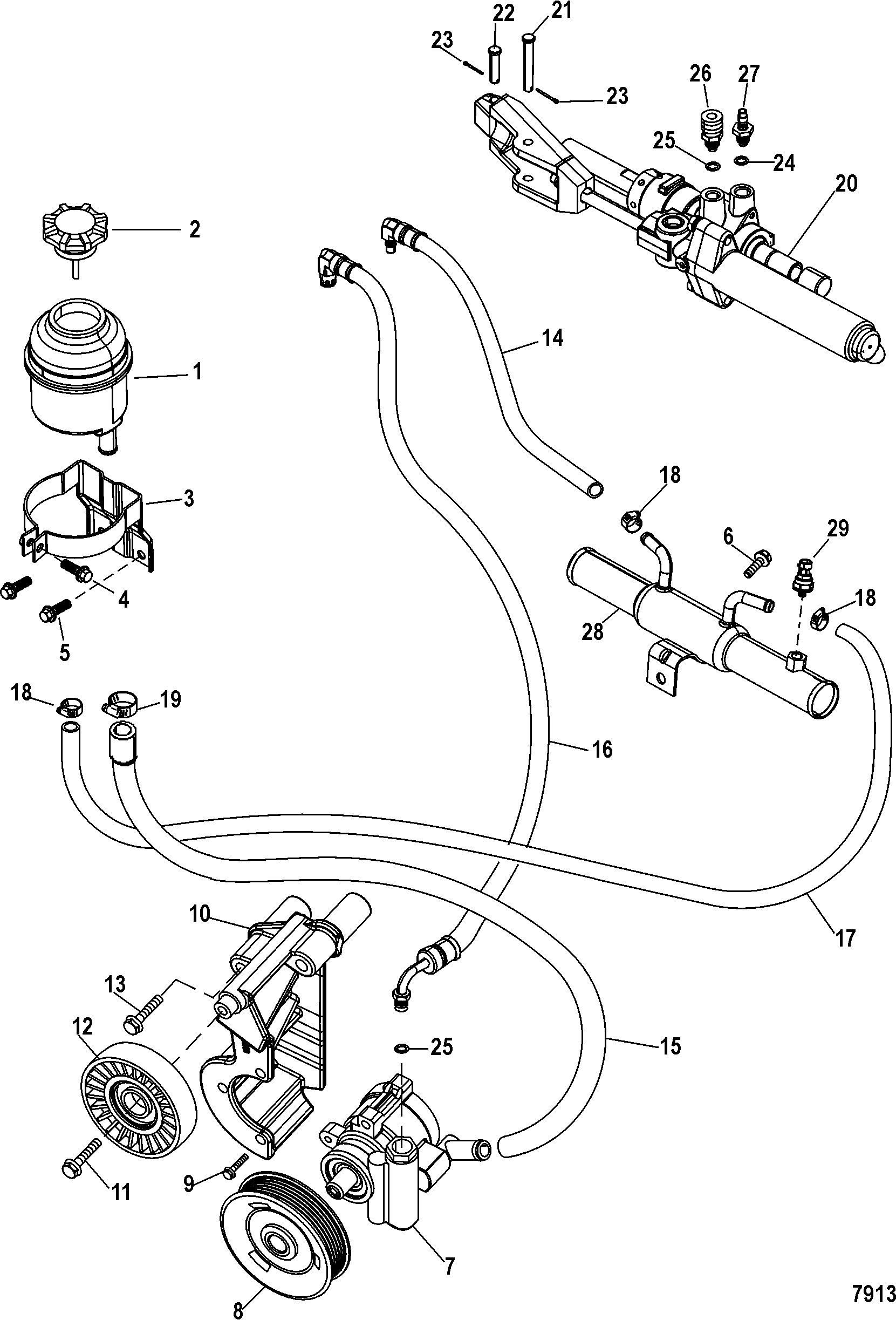

865264A06 |
|
|
|
|
RESERVOIR KIT |
1 |
865264A02 |
|
1 |
865264T |
|
|
|
|
RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering |
1 |
|
|
2 |
19-865263 |
|
|
|
|
CAP, Oil Reservoir - Brown |
1 |
|
|
3 |
865262A02 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
865262A01 |
|
4 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
1 |
|
|
5 |
10-4000354 |
|
|
|
|
SCREW, (M8 x 30) |
2 |
|
|
6 |
10-816585 |
|
|
|
|
SCREW, (.375-18 x .875) |
1 |
|
|
7 |
806230T |
|
|
|
|
PUMP, Power Steering |
1 |
|
|
8 |
862751 |
|
|
|
|
PULLEY, Power Steering |
1 |
|
|
9 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
3 |
|
|
10 |
863856T |
|
|
|
|
BRACKET, Power Steering Pump |
1 |
|
|
11 |
10-4010816 |
|
|
|
|
SCREW, (M10 x 16) Hex Flange - Stainless Steel |
1 |
|
|
12 |
8M6500024 |
|
|
|
|
PULLEY |
1 |
865598 |
|
13 |
10-8M0012503 |
|
|
|
|
SCREW, (M10 x 100) Hex Flange - Stainless Steel |
3 |
10-40108100 |
|
14 |
32-865390015 |
|
|
|
|
HOSE, Male Quick Connect (Cylinder to Cooler) |
1 |
|
|
15 |
32-864229 |
|
|
|
|
HOSE (Pump to Reservoir) |
1 |
|
|
16 |
32-866687 |
|
|
|
|
HOSE, Female Quick Connect (Pump to Cylinder) |
1 |
32-865387060 |
|
17 |
32-865717 |
|
|
|
|
HOSE (Reservoir to Cooler) |
1 |
|
|
18 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm), Hose |
3 |
|
|
19 |
54-815504210 |
|
|
|
|
CLAMP, Worm Gear, Hose |
2 |
|
|
20 |
865383A02 |
|
|
|
|
ACTUATOR ASSEMBLY, Steering |
1 |
|
|
21 |
17-15878 |
|
|
|
|
PIN, Clevis, Clevis |
1 |
|
(Long) |
22 |
17-16419 |
|
|
|
|
PIN, Clevis, Clevis |
1 |
|
(Short) |
23 |
18-46950 |
|
|
|
|
COTTER PIN, Cotter |
2 |
|
|
24 |
25-806232 |
|
|
|
|
O-RING, (.239 x .064) |
1 |
|
|
25 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
2 |
|
|
26 |
22-865415 |
|
|
|
|
FITTING |
1 |
|
|
27 |
22-865414001 |
|
|
|
|
FITTING |
1 |
22-865414 |
|
28 |
863820T1 |
|
|
|
|
COOLER, Power Steering |
1 |
|
|
29 |
8M6000623 |
|
|
|
|
SENSOR |
1 |
8818793 |
|
NS |
19-8079921 |
|
|
|
|
COVER, Hose Clamp End |
AR |
|
No longer made, limited availability |
