496 Mag HO Model - Serial 0W060000 Thru 0W309999 - Smart Craft Sensor and Harnesses

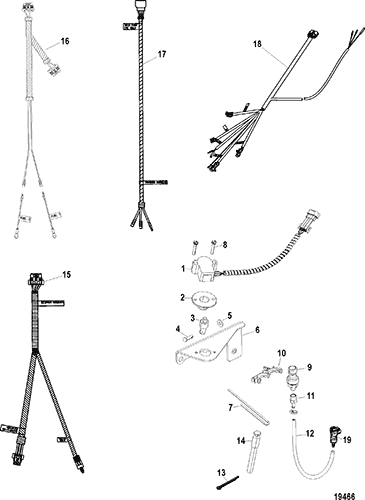

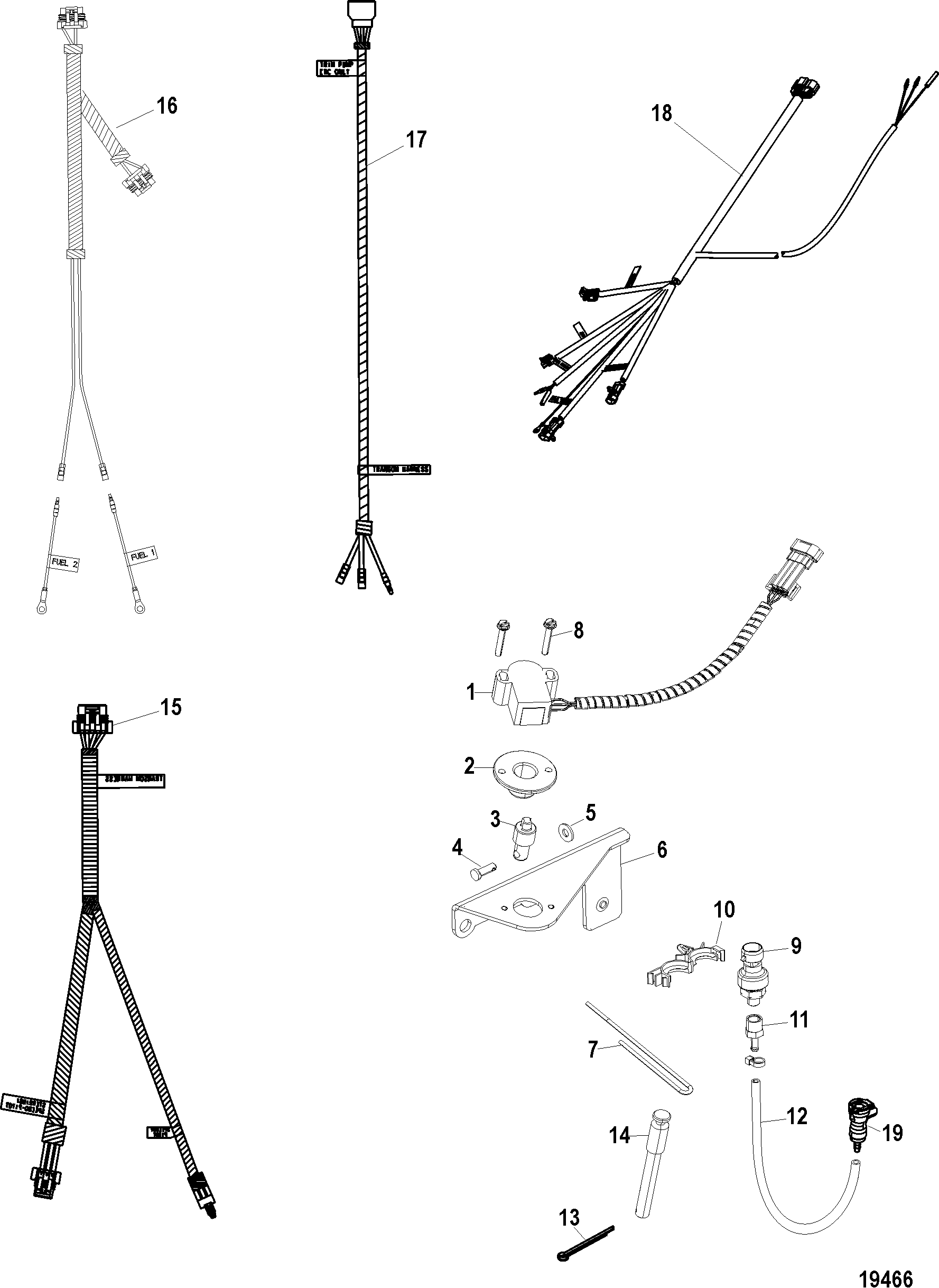

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 863188A3



SENSOR KIT, Steering, Steering/pitot 1   (Digital Throttle Shift)
1 863188T



SENSOR, Steering 1

2 863175



ADAPTOR, Sensor 1
3 863174



DRIVER 1

4 17-863176



PIN 1
5 12-35044



WASHER, (.281 x .625 x .065) Stainless Steel 1
6 863178



BRACKET, Steering Sensor 1
7 863177



GUIDE 1
8 10-812987



SCREW, (#10-24 x 1.250) 2
9 881879A2



SENSOR KIT, (100 PSI), Pitot Pressure 1
10 54-883066



CLIP, (.865) 1
11 22-856594



FITTING, Barbed 1
12 32-5495025



TUBING, (25.00 Feet Bulk), Cut to Length 1
13 18-46950



COTTER PIN 1
14 17-863179



PIN, Clevis 1
15 84-863736T



HARNESS ASSEMBLY, Steering Sensor and Speed Pitot 1   (Accessory Kit Only)
16 84-865891T01



HARNESS ASSEMBLY, Fuel/Paddle, Fuel Tank/Paddle Wheel 1
17 84-863735



HARNESS ASSEMBLY, Trim Pump 1
18 84-865677T01



HARNESS ASSEMBLY, Transom Harness 1
19 22-865417



FITTING, Female Quick Connect 1
