496 Mag EC HO Model - Serial 1A066166 Thru 1A350440 - AXIUS Steering, Hydraulic Pump and Reservoir,Gen I

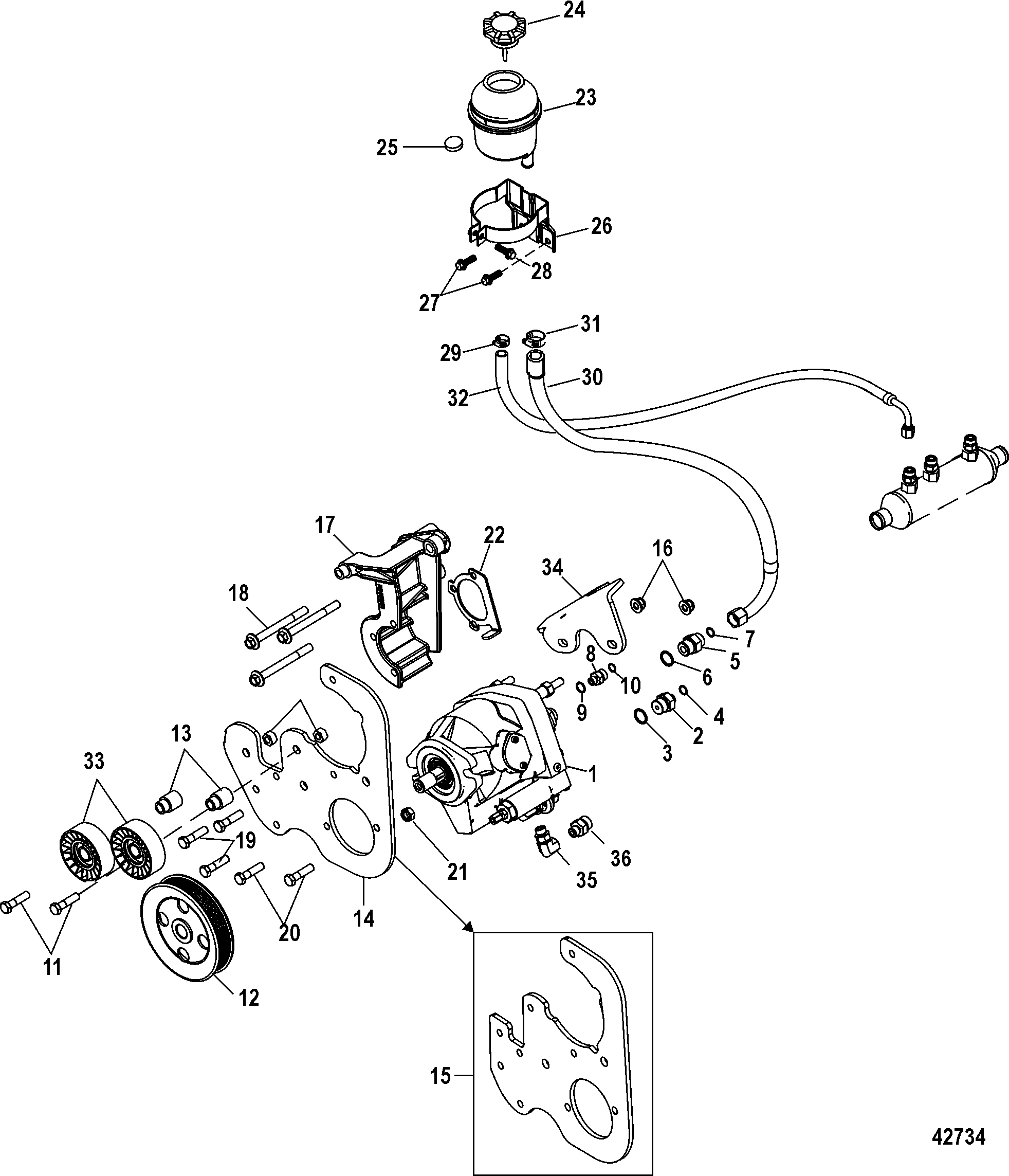

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Hydraulic Pump and Reservoir,Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879194T51 | PUMP | 1 | ||||||
| 2 | 22-8M2007281 | FITTING | 1 | ||||||
| 3 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 4 | 25-8M2004603 | O-RING | 1 | ||||||
| 5 | 22-8M2008373 | FITTING, (1.25 in.) | 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 7 | 25-8M2008541 | O-RING | 1 | ||||||
| 8 | 22-8M2007090 | FITTING, (-6ORF TO -8ORB) Straight | 1 | ||||||
| 9 | 8M2004354 | O-RING | 1 | ||||||
| 10 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 11 | 10-4010860 | SCREW, (M10 x 60) Hex Flange - Stainless Steel | 2 | ||||||
| 12 | 8M2001037 | PULLEY, Power Steering | 2 | SN# 1A349534 & Below | |||||
| 12 | 8M8020627 | PULLEY, Power Steering | 2 | SN# 1A349535 & Up | |||||
| 13 | 8M8020541 | BUSHING | 2 | 23-8M2006173 | |||||
| 14 | 8M2007248 | BRACKET, Power Steering Pump | 1 | SN# 1A349534 & Below | |||||
| 15 | 8M2013950 | BRACKET, Power Steering Pump | 1 | SN# 1A349535 & Up | |||||
| 16 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 17 | 865595T01 | BRACKET | 1 | ||||||
| 18 | 10-8M0012503 | SCREW, (M10 x 100) Hex Flange - Stainless Steel | 3 | 10-40108100 | |||||
| 19 | 10-4010720 | SCREW, (M8 x 20) | 3 | ||||||
| 20 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 21 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 22 | 8M2009215 | BRACKET | 1 | ||||||
| 23 | 865264T | RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering | 1 | ||||||
| 24 | 19-865263 | CAP, Oil Reservoir - Brown | 1 | ||||||
| 25 | 87919455T | MAGNET, Power Steering Reservoir | 1 | ||||||
| 26 | 865262A02 | BRACKET ASSEMBLY | 1 | 865262A01 | |||||
| 27 | 10-4010716 | SCREW, (M8 x 16) | 2 | ||||||
| 28 | 10-4000117 | SCREW, (M5 x 20) | 1 | ||||||
| 29 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 30 | 32-8M2012143 | HOSE, Inlet to Reservoir | 1 | ||||||
| 31 | 54-815504210 | CLAMP, Worm Gear | 1 | ||||||
| 32 | 32-8M2006304 | HOSE | 1 | ||||||
| 33 | 8M6500024 | PULLEY | 2 | 865598 | |||||
| 34 | 8M2007274 | BRACKET | 1 | ||||||
| 35 | 22-8M2009851 | COUPLING (-6) Orb to 1/4 NPT | 1 | ||||||
| 36 | 22-8M2009850 | FITTING, Hydraulic Quick | 1 | ||||||
| - | 879172A34 | PULLEY KIT, High Current, Axius | 1 | SN# 1A349535 & Up |
