350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Closed Cooling System(Easy Drain)

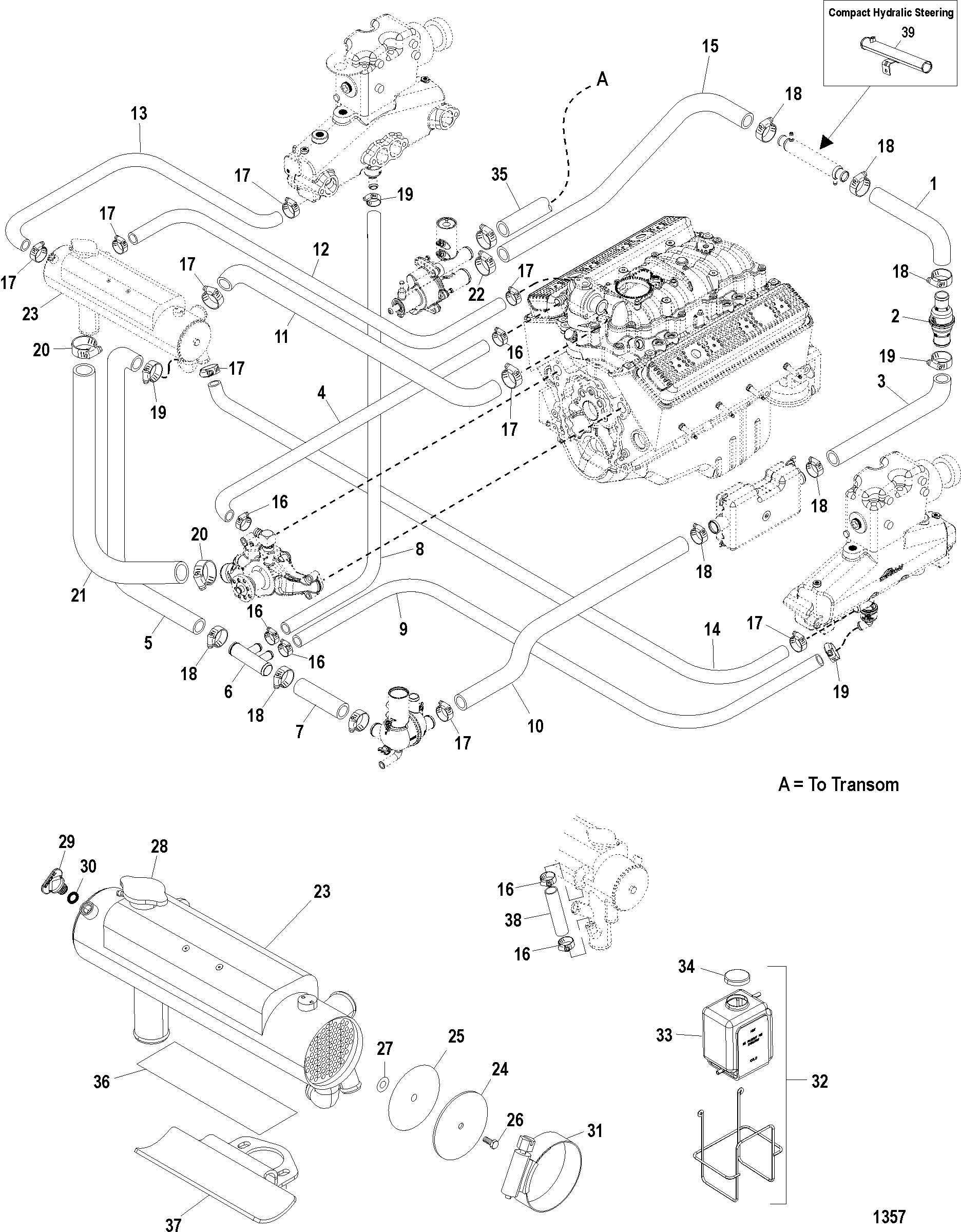

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863489



HOSE, Power Steering Cooler To Check Valve 1
1
2 21-864206A1



CHECK VALVE ASSEMBLY 1
1
3 32-863623



HOSE, Check Valve To Fuel Cooler 1
1
4 32-8638871



HOSE, Intake Bypass To Circulating Pump 1
1
5 32-863793



HOSE, Distribution Fitting To Heat Exchanger 1
1
6 22-863799



FITTING, Distribution 1
1
7 32-863490



HOSE, Distribution Fitting To Accumulator Housing 1
1
8 32-4285069



HOSE, (44.00 Inches Bulk) (Cut To 42.00 Inch Length) 1

9 32-864599



HOSE, Port Manifold Drain 1 32-864258 1
10 32-863670



HOSE, Fuel Cooler To Accumulator Housing 1
(With Power Steering) 1
10 32-863937



HOSE, Fuel Cooler To Accumulator Housing 1
(With Out Power Steering) 1
11 32-863885



HOSE, Heat Exchanger To Thermostat Housing 1
1
12 32-863886



HOSE, Heat Exchanger To Thermostat Housing 1
1
13 32-860421



HOSE, Heat Exchanger To Exhaust Manifold 1
1
14 32-862125



HOSE, Heat Exchanger To Exhaust Manifold 1
1
15 32-863611



HOSE, Sea Pump To Power Steering Cooler 1

16 54-815504212



CLAMP, Worm Gear, Hose 1

17 54-815504216



CLAMP, Worm Gear (1.56 Diameter), Hose 1

18 54-815504222



CLAMP, Worm Gear (1.98 DIameter), Hose 1

19 54-815504228



CLAMP, Worm Gear, Hose 1

20 54-815504232



CLAMP, Worm Gear (2.50 Diameter), Hose 1

21 32-861059



HOSE, Heat Exchanger To Circulating Pump 1

22 54-815504220



CLAMP, Worm Gear, Hose 1

23 863709A02



HEAT EXCHANGER, Closed Cooling 1 863709A1 1
24 8M0036623



COVER, Heat Exchanger End 2 814875
25 8M0036987



GASKET, End Cover 2 27-803644
26 10-814877



BOLT 2

27 8M0039163



O-RING, Special 2 25-814878
28 36-8148791



CAP, Pressure 1

29 22-806608A02



PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
30 25-32509



O-RING, (.489 x .070) 1

31 54-815504388



CLAMP, Worm Gear, Heat Exchanger 1

32 71587A10



RECOVERY KIT, Coolant 1

NS 32-774572



HOSE, (48.00 Inches Bulk) 1

33 71587A11



BOTTLE, Plastic, Coolant Recovery Kit 1

34 72058



CAP, Coolant Recovery Bottle 1

35 32-865672079



HOSE, (96.00 Inches Bulk), Sea Water Pump To Water Pick Up 1 32-1743579
36 18431



PAD, Heat Exchanger 1

37 863680A1



BRACKET, Cooler 1

38 32-4285069



HOSE, (44.00 Inches Bulk) 1
(Cut To 6.00 Inch Length)
39 863841T



TUBE, Water, Brass 1
(Compact Hydralic Steering)
