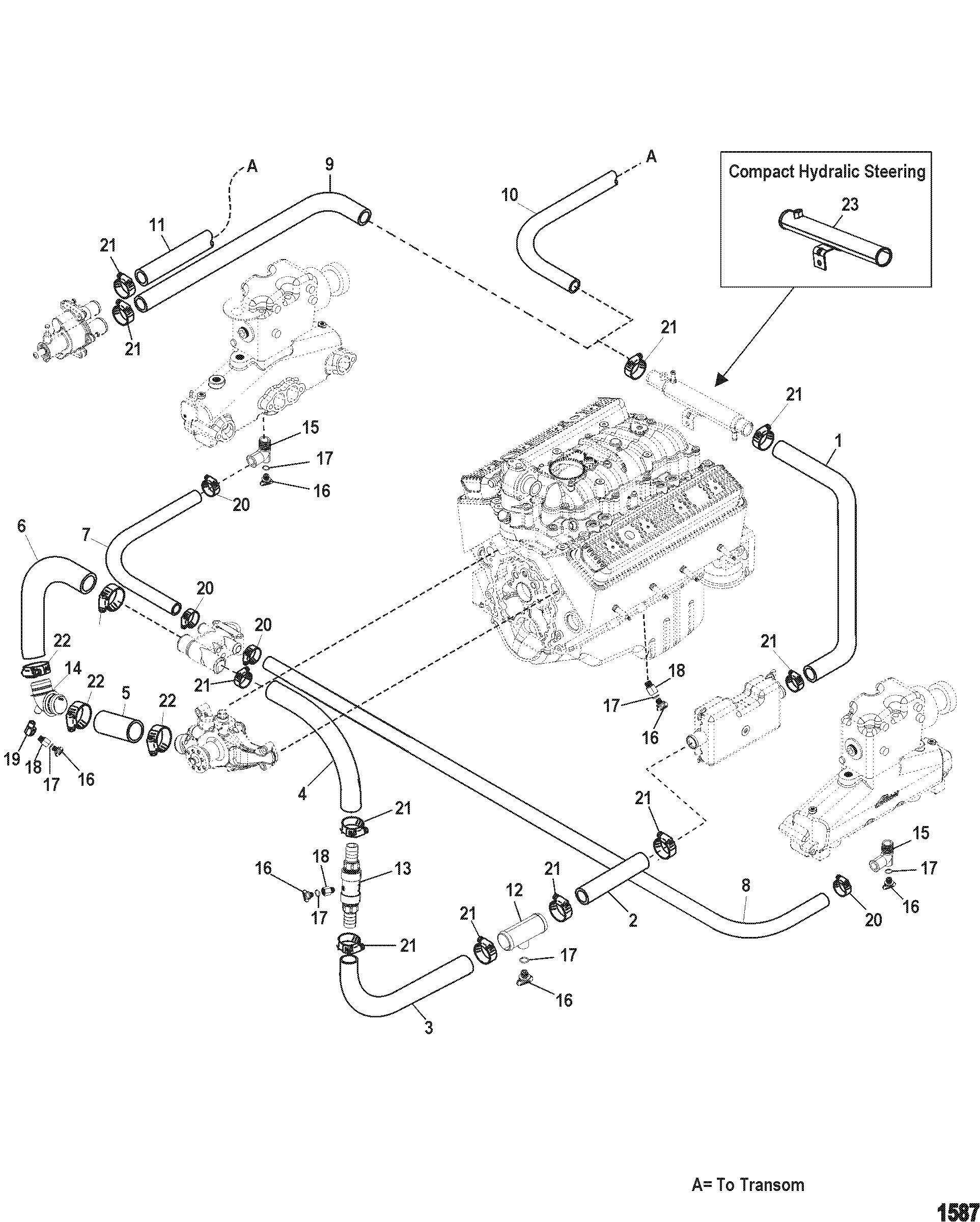

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
32-8600891 |
|
|
|
|
HOSE, Molded |
1 |
|
|
| 2 |
32-866331 |
|
|
|
|
HOSE, (4.00 Inches), Fuel Cooler To Drain Fitting |
1 |
32-80769440 |
(Cut To Length) |
| 3 |
32-864578 |
|
|
|
|
HOSE, Drain Fitting To Check Valve |
1 |
|
|
| 4 |
32-864579 |
|
|
|
|
HOSE, Check Valve To Thermostat Housing |
1 |
|
|
| 5 |
32-842413 |
|
|
|
|
HOSE, Circulating Pump To Drain Elbow |
1 |
|
This Part is No Longer Available |
| 6 |
32-864703 |
|
|
|
|
HOSE, Drain Elbow To Thermostat Housing |
1 |
|
|
| 7 |
32-863459 |
|
|
|
|
HOSE, Thermostat Housing To Starboard Manifold |
1 |
|
|
| 8 |
32-863458 |
|
|
|
|
HOSE, Thermostat Housing To Port Manifold |
1 |
|
|
| 9 |
32-8080441 |
|
|
|
|
HOSE, Molded, Sea Pump To Power Steering Cooler |
1 |
|
(Bravo) |
| 10 |
32-807661 |
|
|
|
|
HOSE, Transom To Power Steering Cooler |
1 |
|
(Alpha) |
| 11 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk), Sea Water Pump To Drive |
1 |
32-1743579 |
(Bravo) |
| 12 |
861505 |
|
|
|
|
FITTING, Drain Tee |
1 |
|
|
| 13 |
21-862271A1 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 14 |
8615871 |
|
|
|
|
ELBOW, Drain |
1 |
|
|
| 15 |
22-862210A01 |
|
676-9-41206 |
700-13991 |
|
ELBOW KIT, Drain |
2 |
22-806926A1 |
|
| 16 |
22-806608A02 |
|
|
700-13992 |
|
PLUG KIT, (.500-13) Royal Blue, Fitting |
9 |
22-806608A1 |
|
| 17 |
25-32509 |
|
|
|
|
O-RING, (.489 x .070) |
9 |
|
|
| 18 |
22-860088 |
|
|
|
|
BUSHING |
4 |
|
|
| 19 |
22-46982 |
|
|
|
|
FITTING, (90 Degree) |
1 |
|
|
| 20 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter), Hose |
4 |
|
|
| 21 |
54-815504222 |
|
|
|
|
CLAMP, Worm Gear (1.98 DIameter), Hose |
11 |
|
|
| 22 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear, Hose |
4 |
|
|
| 23 |
863841T |
|
|
|
|
TUBE, Water, Brass |
1 |
|
(Compact Hydralic Steering) |
