350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Sea Water Pump Assembly

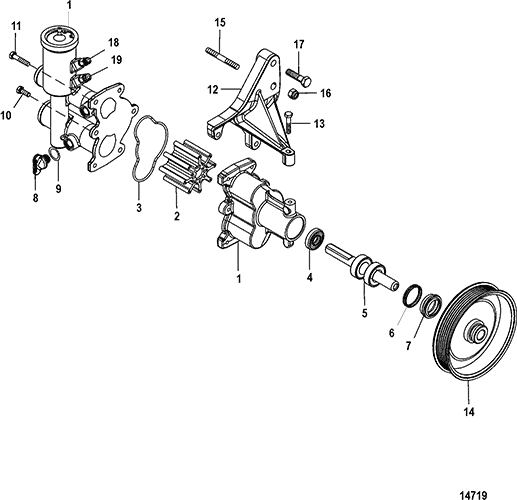

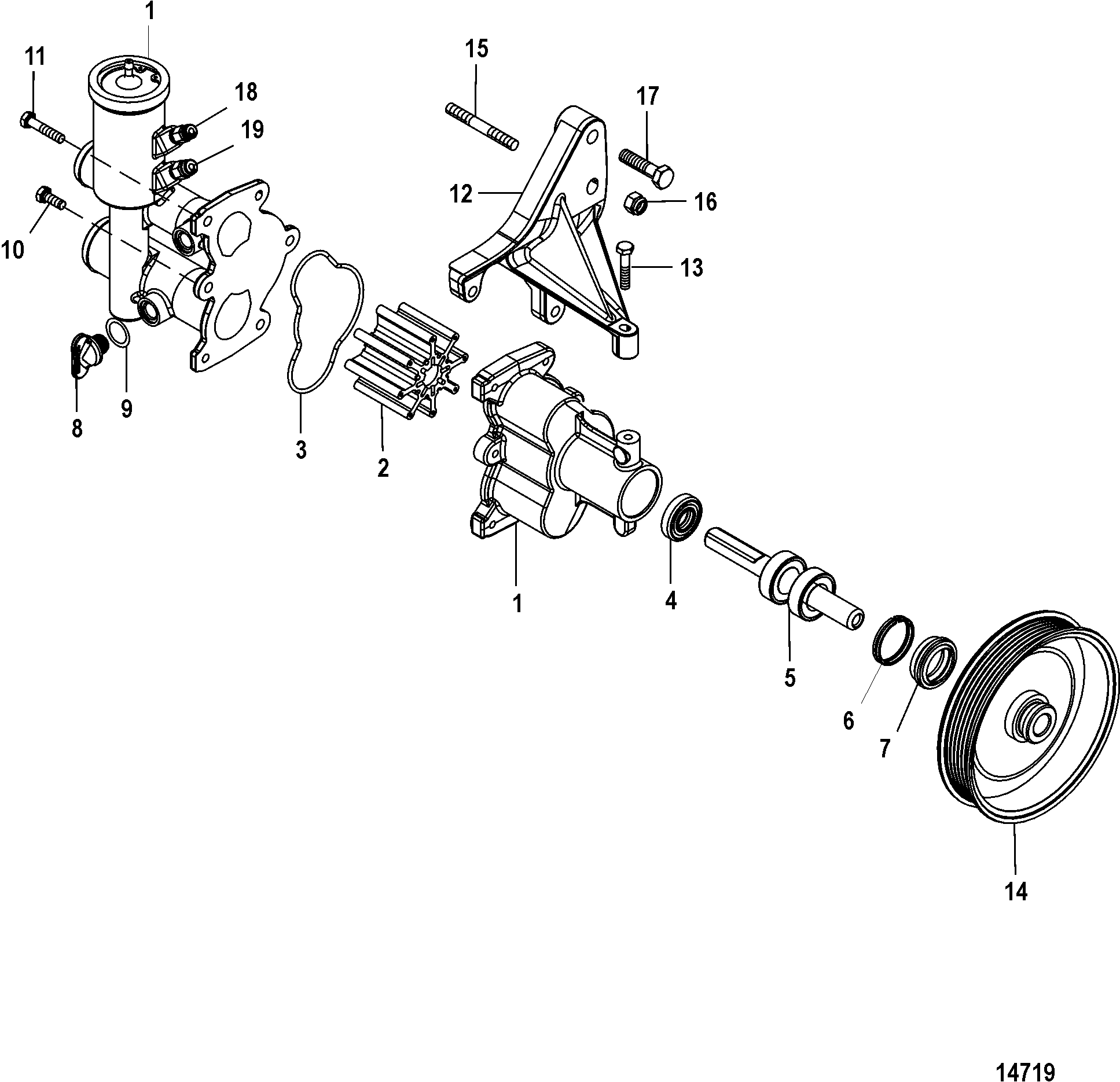

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-862914T10 | PUMP ASSEMBLY | 1 | 46-862914T3 | (With Out Air Fittings) 1 | ||||
| 1 | 46-862914T11 | PUMP ASSEMBLY | 1 | 46-862914T4 | (With Air Fittings) 1 | ||||
| 2 | 47-8M0104229 | IMPELLER | 1 | ||||||
| 3 | 25-841807 | O-RING, (3.500 x .103) | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | 26-862037 | |||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY | 1 | 862235A1 | |||||
| 6 | 862039 | TOLERANCE RING | 1 | ||||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
| 9 | 25-32509 | O-RING, (.489 x .070) | 2 | ||||||
| 10 | 10-4000328 | SCREW, (M6 x 16) | 4 | ||||||
| 11 | 10-4000331 | SCREW, (M6 x 30) | 3 | ||||||
| 12 | 865143T | BRACKET, Sea Water Pump | 1 | 863472T | |||||
| 13 | 10-4000331 | SCREW, (M6 x 30) | 1 | ||||||
| 14 | 862351T | PULLEY | 1 | ||||||
| 15 | 16-863853 | STUD | 2 | ||||||
| 16 | 11-82671112 | NUT, (.375-16) | 2 | ||||||
| 17 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 18 | 22-863718 | FITTING, Gray - Straight, Male Air | 1 | (5/32) (Component Of T-4 Pump) | |||||
| 19 | 22-863719 | FITTING, Orange - Straight, Male Air | 1 | (3/16) (Component Of T-4 Pump) |
