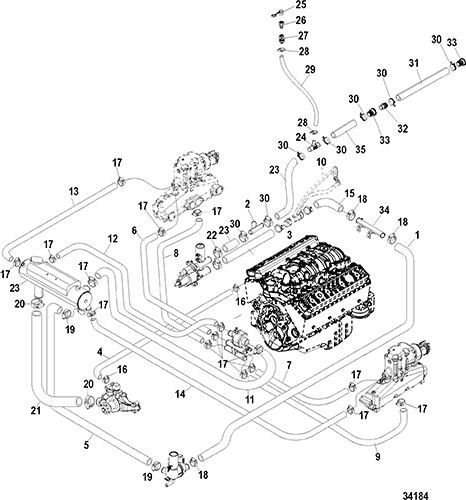

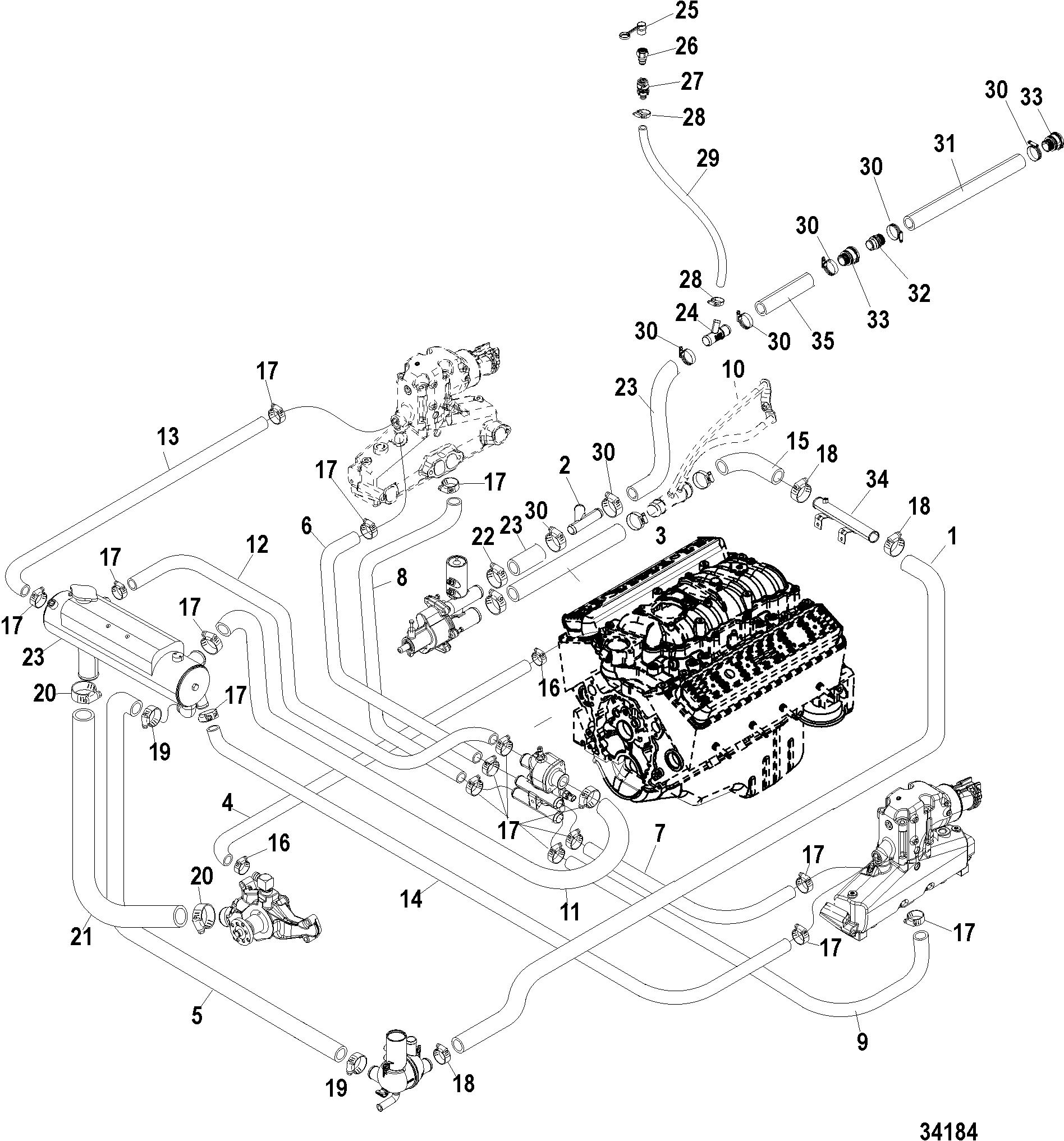

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
32-865247 |
|
|
|
|
HOSE, Power Steering Cooler to Accumulator Housing |
1 |
|
|
| 2 |
22-864727 |
|
|
|
|
FITTING, Y, (3) 1-1/4 In. OD Hose Barbs |
1 |
|
|
| 3 |
32-865234 |
|
|
|
|
HOSE, Sea Water Pump to Water Orifice |
|
|
|
| 4 |
32-864551 |
|
|
|
|
HOSE, Intake Bypass to Circulating Pump |
1 |
|
|
| 5 |
32-864431 |
|
|
|
|
HOSE, Distribution Fitting to Heat Exchanger |
1 |
|
|
| 6 |
32-864539 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold |
1 |
|
(Starboard) (Non Riser) |
| 6 |
32-864956 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold |
1 |
|
(Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
| 7 |
32-864552 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold |
1 |
|
(Port) (Non Riser) |
| 7 |
32-864954 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold |
1 |
|
(Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
| 8 |
32-864509 |
|
|
|
|
HOSE, Thermostat Housing to Lower Manifold |
1 |
|
(Starboard) |
| 9 |
32-864508 |
|
|
|
|
HOSE, Thermostat Housing to Lower Manifold |
1 |
|
(Port) |
| 10 |
NA |
|
|
|
|
NOT AVAILABLE, Orifice Meter Assembly |
1 |
|
(See 'Cool Fuel System -Bravo' for Service Part Number) |
| 11 |
32-864506 |
|
|
|
|
HOSE, Heat Exchanger to Thermostat Housing |
1 |
|
|
| 12 |
32-864507 |
|
|
|
|
HOSE, Heat Exchanger to Thermostat Housing |
1 |
|
|
| 13 |
32-8M2005027 |
|
|
|
|
HOSE, Heat Exchanger to Starboard Elbow |
1 |
|
(Non Riser, 1.7 Inch and 3 Inch Riser) |
| 13 |
32-864955 |
|
|
|
|
HOSE, Heat Exchanger to Starboard Elbow |
1 |
|
(4.7 Inch and 6 Inch Riser) |
| 14 |
32-864726 |
|
|
|
|
HOSE, Heat Exchanger to Port Elbow |
1 |
|
(Non Riser, 1.7 Inch and 3 Inch Riser) |
| 14 |
32-864953 |
|
|
|
|
HOSE, Heat Exchanger to Port Elbow |
1 |
|
(4.7 Inch and 6 Inch Riser) |
| 15 |
32-865235 |
|
|
|
|
HOSE, Water Orifice to Power Steering Cooler |
1 |
|
|
| 16 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 17 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter) |
1 |
|
|
| 18 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 19 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
1 |
54-8M2001490 |
|
| 20 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear (2.50 Diameter) |
1 |
|
|
| 21 |
32-864886 |
|
|
|
|
HOSE, Heat Exchanger to Circulating Pump |
1 |
|
|
| 22 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 23 |
32-865672013 |
|
|
|
|
HOSE, (4.00 Inches) |
1 |
|
|
| 24 |
22-862993 |
|
|
|
|
FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 |
|
|
| 25 |
861427 |
|
|
|
|
CAP |
1 |
|
|
| 26 |
22-857175 |
|
|
|
|
FITTING |
1 |
22-861405 |
|
| 27 |
22-861406 |
|
|
|
|
SOCKET |
1 |
|
|
| 28 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 29 |
32-8M0062635 |
|
|
|
|
HOSE, (34 Inches) |
1 |
32-86438765 |
|
| 30 |
54-815504222 |
|
|
|
|
CLAMP, Worm Gear (1.98 DIameter) |
1 |
|
|
| 31 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk) |
1 |
|
Cut to Fit |
| 32 |
22-865362 |
|
|
|
|
QUICK CONNECT |
1 |
|
|
| 33 |
22-865324 |
|
|
|
|
QUICK CONNECT |
1 |
|
|
| 34 |
863841T |
|
|
|
|
TUBE, Water, Brass |
1 |
|
(Compact Hydraulic Steering) |
| 35 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk), Cut to 19 inchs |
1 |
|
|
