Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

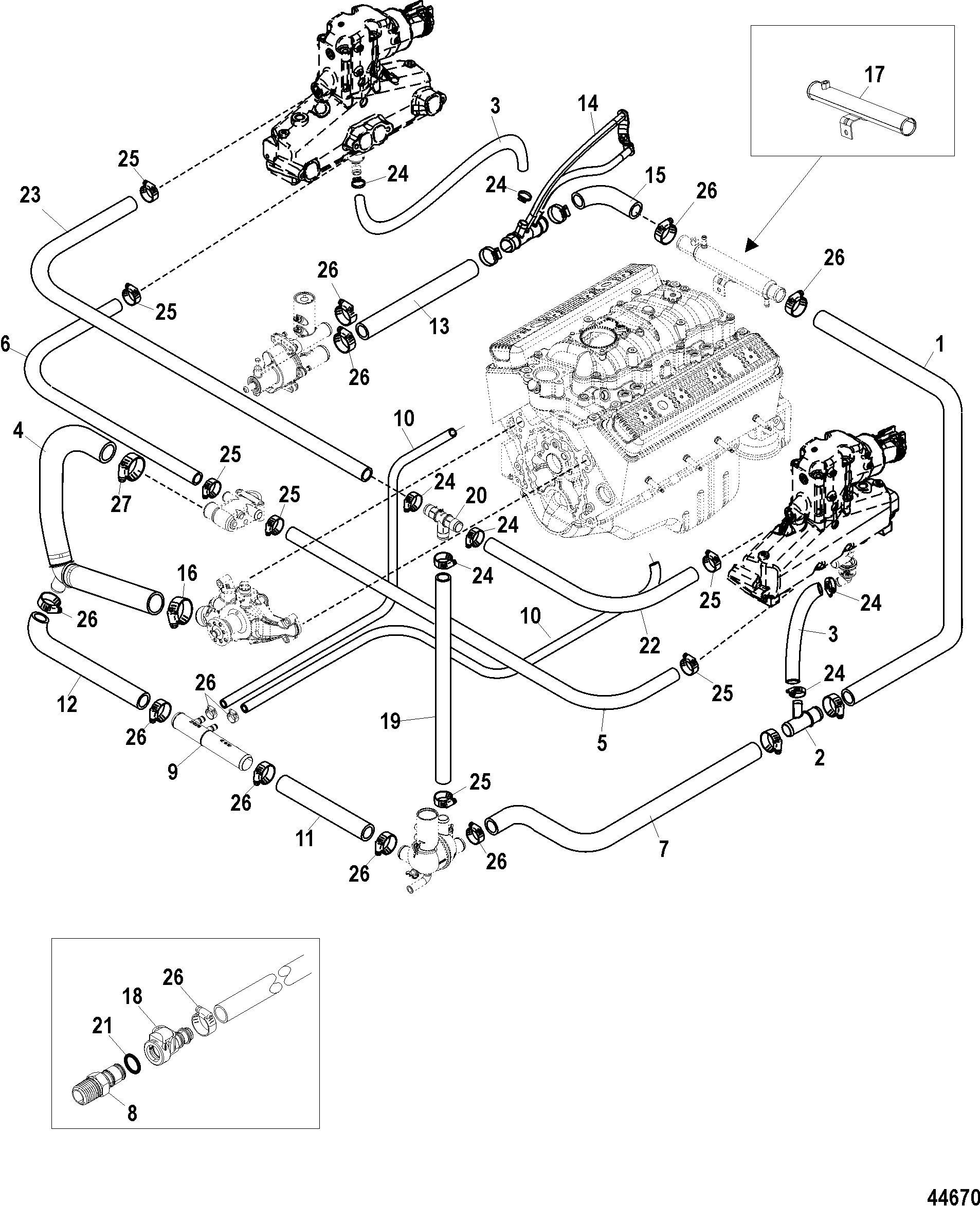

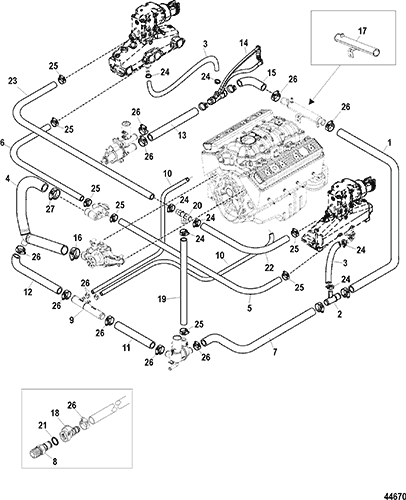

1 |
32-865255 |
|
|
|
|
HOSE, Power Steering Cooler to Accumulator Housing |
1 |
|
|
2 |
22-862993 |
|
|
|
|
FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 |
|
|
3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting |
1 |
|
Port, Cut to 9.00 Inches |
3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting |
1 |
|
Starboard, Cut to 3.5 Inches |
4 |
32-863456A1 |
|
|
|
|
HOSE ASSEMBLY, Thermostat Housing to Circulating Pump |
1 |
|
|
5 |
32-863458 |
|
|
|
|
HOSE, Thermostat Housing to Port Manifold |
1 |
|
|
6 |
32-863459 |
|
|
|
|
HOSE, Thermostat Housing to Starboard Manifold |
1 |
|
|
7 |
32-866331 |
|
|
|
|
HOSE, Y Fitting to Accumulator |
1 |
|
|
8 |
22-862603 |
|
|
|
|
FITTING, Male Quick Connector, Threaded - Engine Block |
2 |
|
|
9 |
22-864989A01 |
|
|
|
|
FITTING ASSEMBLY, Lower Distribution |
1 |
|
|
10 |
32-8M0062590 |
|
|
|
|
HOSE, Cylinder Block Drain to Distribution Fitting |
2 |
32-8623175 |
Port Cut to 23 Inches, Starboard 17 Inches |
11 |
32-863490 |
|
|
|
|
HOSE, Water Drain Accumulator to Distribution Fitting |
1 |
|
|
12 |
32-865394 |
|
|
|
|
HOSE |
1 |
|
|
13 |
32-8M2021656 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
32-865337 |
3 Point Manual Drain |
13 |
32-865234 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
|
Single Point Air Actuated Drain |
14 |
NA |
|
|
|
|
NOT AVAILABLE, Orifice Meter Assembly |
1 |
|
(See Cool Fuel System -Bravo for Service Part Number) |
15 |
32-865235 |
|
|
|
|
HOSE, Water Orifice to Power Steering Cooler |
1 |
|
|
16 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear (2.50 Diameter) |
AR |
|
|
17 |
863841T |
|
|
|
|
TUBE, Water, Brass |
1 |
|
Compact Hydraulic Steering |
18 |
22-862225 |
|
|
|
|
FITTING, Pushlock - Block Drian Hose |
4 |
|
|
19 |
32-863465 |
|
|
|
|
HOSE, Drain Accumulator to Tee Fitting |
1 |
|
|
20 |
22-8M0065823 |
|
|
|
|
FITTING ASSEMBLY, Tee |
1 |
22-863464A1 |
Bravo Only |
21 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
22 |
32-864560 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
Non Riser, 1.7 Inch and 3 Inch Riser |
22 |
32-864965 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
4.7 Inch and 6 Inch Riser |
23 |
32-864561 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
Non Riser, 1.7 Inch and 3 Inch Riser |
23 |
32-864966 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
4.7 Inch and 6 Inch Riser |
24 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
25 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter) |
AR |
|
|
26 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
27 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear (2.50 Diameter) |
1 |
|
|
