| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

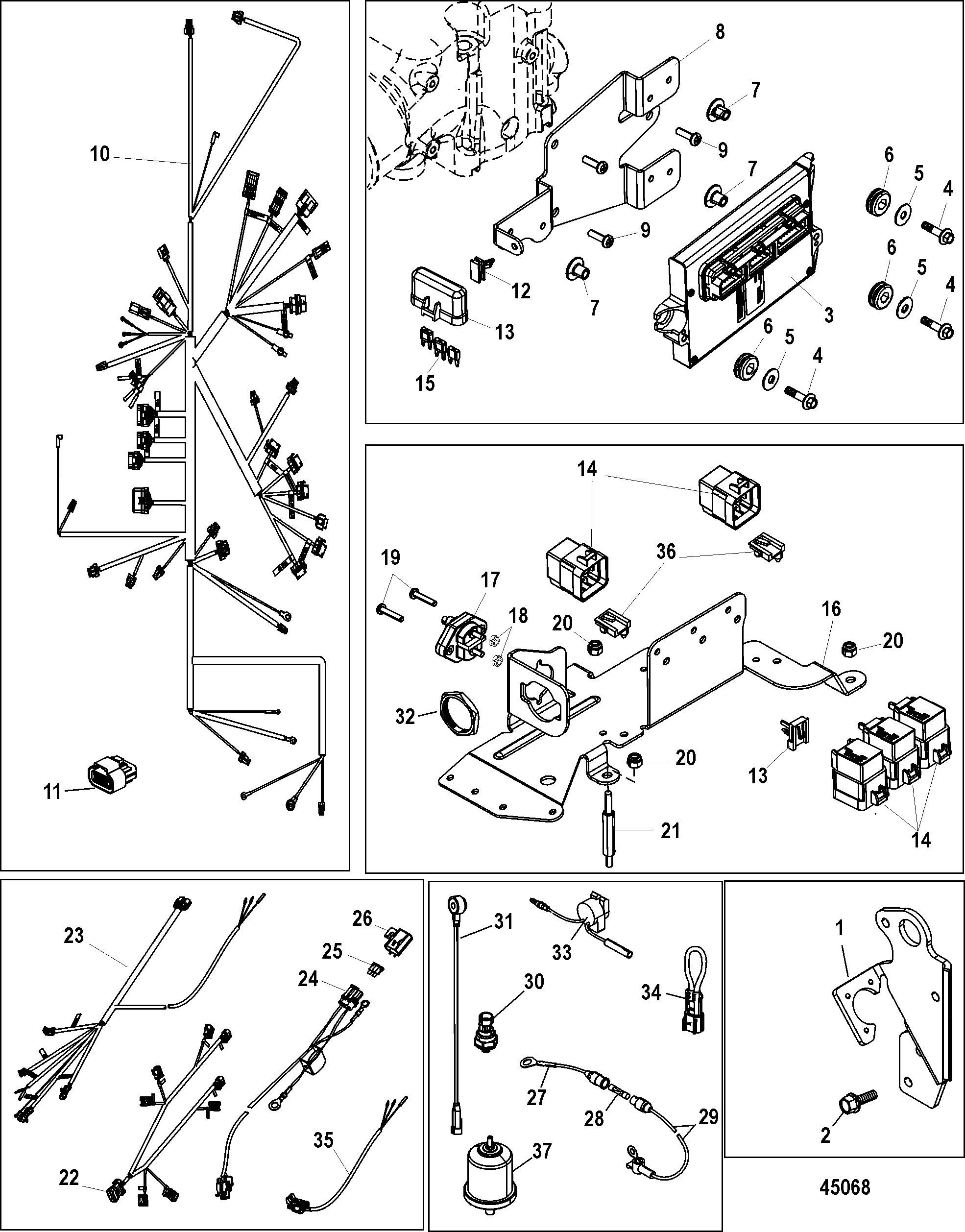

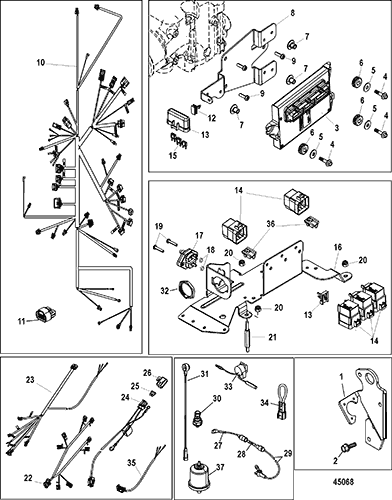

| 1 |
865480T |
|
|
|
|
BRACKET, Harness Mounting/Lifting Eye |
1 |
|
|
| 2 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
2 |
|
|
| 3 |
78-8M0059269 |
|
|
|
|
ECM, Engine Control Module |
1 |
879194T92 |
5.0L MPI, Standard Cooling |
| 3 |
78-8M0059270 |
|
|
|
|
ECM, Engine Control Module |
1 |
879194T93 |
5.0L MPI, Closed Cooling |
| 3 |
78-8M0059271 |
|
|
|
|
ECM, Engine Control Module |
1 |
879194T94 |
350 MAG., Standard Cooling |
| 3 |
78-8M0059272 |
|
|
|
|
ECM, Engine Control Module |
1 |
879194T95 |
350 MAG, Closed Cooling |
| 3 |
78-8M0059273 |
|
|
|
|
ECM, Engine Control Module |
1 |
879288T96 |
377 MAG, Standard Cooling |
| 3 |
78-8M0059274 |
|
|
|
|
ECM, Engine Control Module |
1 |
879288T97 |
377 MAG, Closed Cooling |
| 4 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
| 5 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 6 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 7 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 8 |
865479T01 |
|
|
|
|
BRACKET, ECM Mount |
1 |
|
|
| 9 |
10-860008 |
|
|
|
|
SCREW, (.250-20 x .625) Torx |
3 |
|
|
| 10 |
8M0050326 |
|
|
|
|
HARNESS ASSEMBLY, Main Engine |
1 |
|
Digital Throttle and Shift |
| 11 |
8M0055652 |
|
|
|
|
TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H) |
1 |
|
|
| 12 |
54-804352 |
|
|
|
|
CLIP, Fuse Block Mounting |
1 |
|
|
| 13 |
883562 |
|
|
|
|
COVER, Fuse |
1 |
|
|
| 14 |
882751 |
|
|
|
|
RELAY |
5 |
|
|
| 15 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
3 |
|
|
| 16 |
865483T |
|
|
|
|
BRACKET, Circuit Breaker and Relays |
1 |
|
|
| 17 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-865827T |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 18 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 19 |
10-830861 |
|
|
|
|
SCREW, (#8-32 x .625) |
2 |
|
|
| 20 |
11-401366 |
|
|
|
|
NUT, (M6) Stainless Steel |
3 |
|
|
| 21 |
16-863439 |
|
|
|
|
STUD |
1 |
|
|
| 22 |
84-865983T01 |
|
|
|
|
HARNESS ASSEMBLY, Injectors |
1 |
|
|
| 23 |
84-865677T01 |
|
|
|
|
HARNESS ASSEMBLY, Transom |
1 |
|
|
| 24 |
84-888416T04 |
|
|
|
|
HARNESS ASSEMBLY, DTS, Clean Power |
1 |
|
|
| 25 |
862646 |
|
|
|
|
FUSE, Tan - 5 Ampere |
1 |
|
|
| 26 |
828054 |
|
|
|
|
COVER, Fuse |
1 |
|
|
| 27 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches) Red |
1 |
|
Bravo |
| 28 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
Bravo |
| 29 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip |
1 |
|
Bravo |
| 30 |
8M6000623 |
|
|
|
|
SENSOR, Pressure |
1 |
881879010 |
Power Steering Cooler |
| 30 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI), Oil |
1 |
|
|
| 31 |
878187 |
|
|
|
|
SENSOR ASSEMBLY, Knock |
2 |
|
|
| 32 |
11-889664 |
|
|
|
|
NUT, (1.500-18) Black Nylon |
1 |
|
|
| 33 |
816492A15 |
|
|
|
|
ALARM KIT |
1 |
|
|
| 34 |
864337A1 |
|
|
|
|
CONNECTOR, Black, Jumper |
1 |
|
Black Wire |
| 35 |
84-865774T01 |
|
|
|
|
HARNESS ASSEMBLY, Trim Pump |
1 |
|
|
| 36 |
86-865205 |
|
|
|
|
CLIP, Relay Mounting |
2 |
|
|
| 37 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY |
|
87-815425T |
|
