350 Mag MPI HORIZON Alpha-Bravo EC - Serial 1A611928 Thru 1A623184 - AXIUS Steering, Fluid Filter (High Pressure)

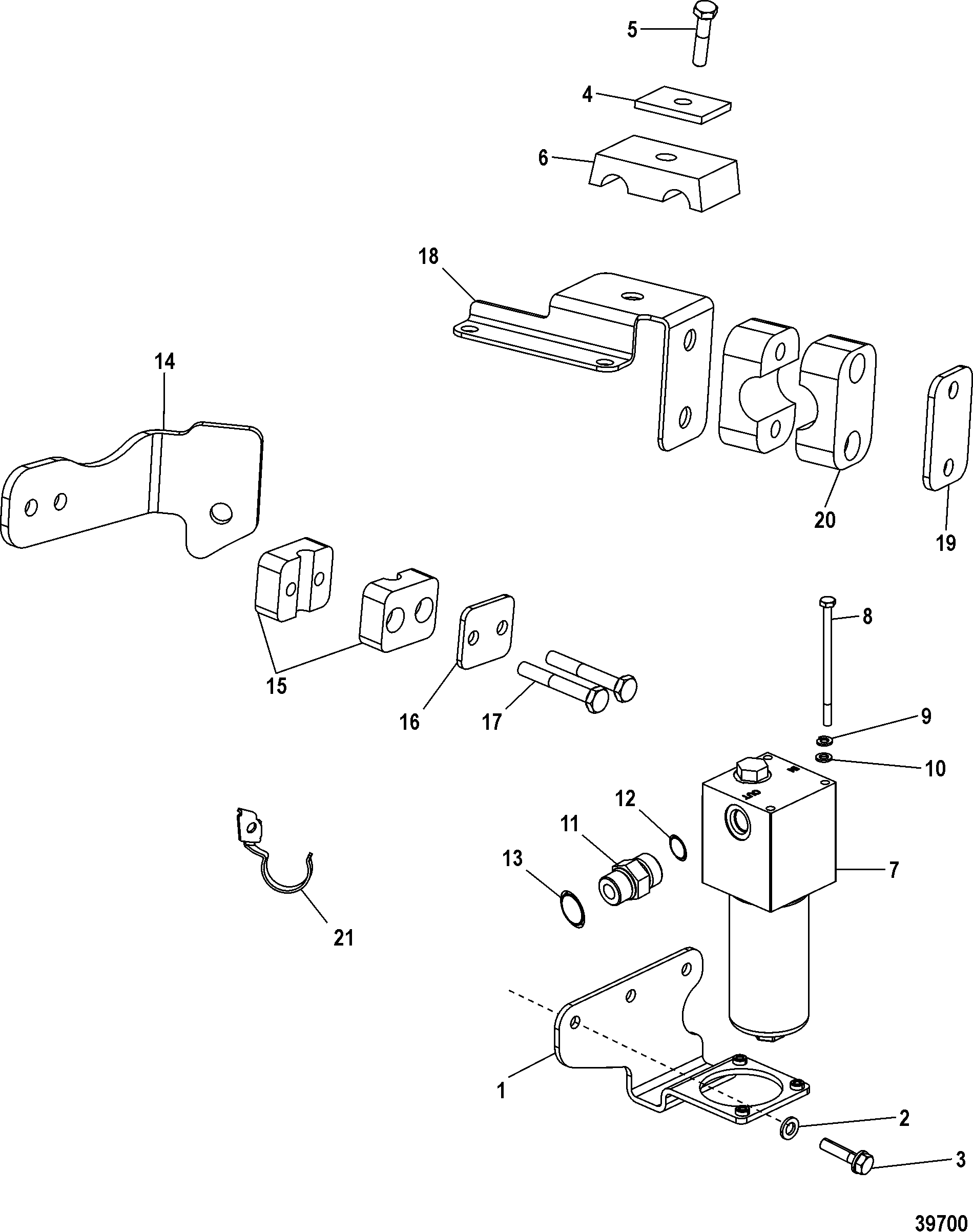

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- AXIUS Steering Components, Hydraulic Pump
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (High Pressure)
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (High Pressure Filter)
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift - Axius
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879172T | BRACKET, Oil Filter Mount | 1 | ||||||
| 2 | 13-72521 | LOCKWASHER, Internal Tooth | 3 | ||||||
| 3 | 10-816585 | SCREW, (.375-18 x .875) | 3 | ||||||
| 4 | 8M2017033 | PLATE, Cover | 1 | ||||||
| 5 | 10-4000332 | SCREW, (M6 x 35) | 1 | ||||||
| 6 | 8M2017031 | CLAMP | 1 | ||||||
| 7 | 879288T | FILTER, High Pressure | 1 | ||||||
| 8 | 10-844886 | SCREW, (.250-20 x 4.250) | 3 | ||||||
| 9 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 3 | ||||||
| 10 | 12-29245 | 602-98-262-25 | WASHER, (.281 x .500 x .060) Stainless Steel | 3 | |||||
| 11 | 8M2015982 | FITTING, Adapter (-6ORF TO -8ORB) | 2 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 13 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 14 | 8M2006728 | BRACKET, Pressure Hose Mount | 1 | ||||||
| 15 | 54-8M2007315 | CLAMP, Tube | 2 | ||||||
| 16 | 8M2007316 | PLATE, Tube Clamp | 1 | ||||||
| 17 | 10-78038 | SCREW, (.250-20 x 1.75) | 2 | ||||||
| 18 | 879194T | BRACKET, Filter Hose Clamp | 1 | ||||||
| 19 | 8M2017127 | CLAMP, Hose | 1 | ||||||
| 20 | 8M2017128 | PLATE, Cover | 1 | ||||||
| 21 | 8M2008285 | RETAINER, Oil Line | 1 | ||||||
| NS | 10-4000335 | SCREW, (M6 x 50), M6 x 50 Hose | 3 | ||||||
| NS | 12-4002316 | WASHER | 3 | ||||||
| NS | 13-400256 | LOCKWASHER, (M6) | 3 |
