350 Mag MPI HORIZON Alpha-Bravo EC - Serial 1A611928 Thru 1A623184 - Shift Bracket, Alpha

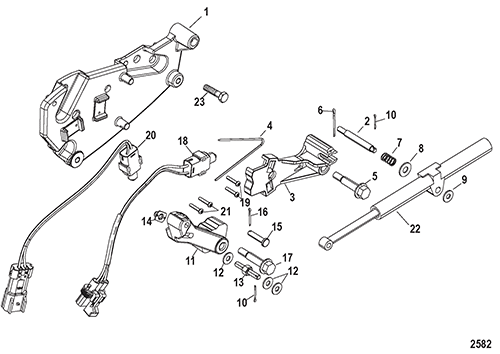

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- AXIUS Steering Components, Hydraulic Pump
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (High Pressure)
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (High Pressure Filter)
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift - Axius
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807962A15 | BRACKET ASSEMBLY Shift | 1 | ||
| 2 | 0000 | OEM: 525-865149A02 | STUD With Cotter Pin | 1 | ||
| 3 | 0000 | OEM: 525-865433A02 | LEVER ASSEMBLY Actuator | 1 | ||
| 4 | 0024 | OEM: 525-24-864907T | SPRING | 1 | ||
| 5 | 0010 | OEM: 525-10-865148 | SHOULDER SCREW (.312-18 x 1.843) Stainless Steel | 1 | ||
| 6 | 0018 | OEM: 525-18-328571 | COTTER PIN | 1 | ||
| 7 | 0024 | OEM: 525-24-98880 | SPRING | 1 | ||
| 8 | 0012 | OEM: 525-12-56720 | WASHER (.330 x .750 x .060) Stainless Steel | 1 | ||
| 9 | 0012 | OEM: 525-12-35462 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 | ||
| 10 | 0018 | OEM: 525-18-210711 | COTTER PIN | 2 | ||
| 11 | 0000 | OEM: 525-13898T06 | LEVER ASSEMBLY Shift | 1 | ||
| 12 | 0012 | OEM: 525-12-35462 | WASHER (.2656 x .625 x .0625) Stainless Steel | 3 | ||
| 13 | 0016 | OEM: 525-16-865393A02 | STUD KIT (.250-28 x 1.90) With Cotter Pin | 1 | ||
| 14 | 0011 | OEM: 525-11-63341 | TEE NUT | 1 | ||
| 15 | 0017 | OEM: 525-17-814001 | PIN Clevis | 1 | ||
| 16 | 0018 | OEM: 525-18-210711 | COTTER PIN | 1 | ||
| 17 | 0010 | OEM: 525-10-865148 | SHOULDER SCREW (.312-18 x 1.843) Stainless Steel | 1 | ||
| 18 | 0087 | OEM: 525-87-808009T10 | SWITCH ASSEMBLY Shift Interupt | 1 | ||
| 19 | 0010 | OEM: 525-10-865147T01 | SCREW (#6-32 x .750) Stainless Steel | 2 | ||
| 20 | 0087 | OEM: 525-87-808009T11 | SWITCH ASSEMBLY Gear Indicator | 1 | ||
| 21 | 0010 | OEM: 525-10-865147T01 | SCREW (#6-32 x .750) Stainless Steel | 2 | ||
| 22 | 0000 | OEM: 525-813995A1 | GUIDE ASSEMBLY Spring | 1 | ||
| 23 | 0010 | OEM: 525-10-65746 | SCREW (.250-20 x .750) | 3 |
