350 Mag Alpha EFI(Gen +) GM V-8 1997 - Serial 0K001509 and Up - Fuel Filter

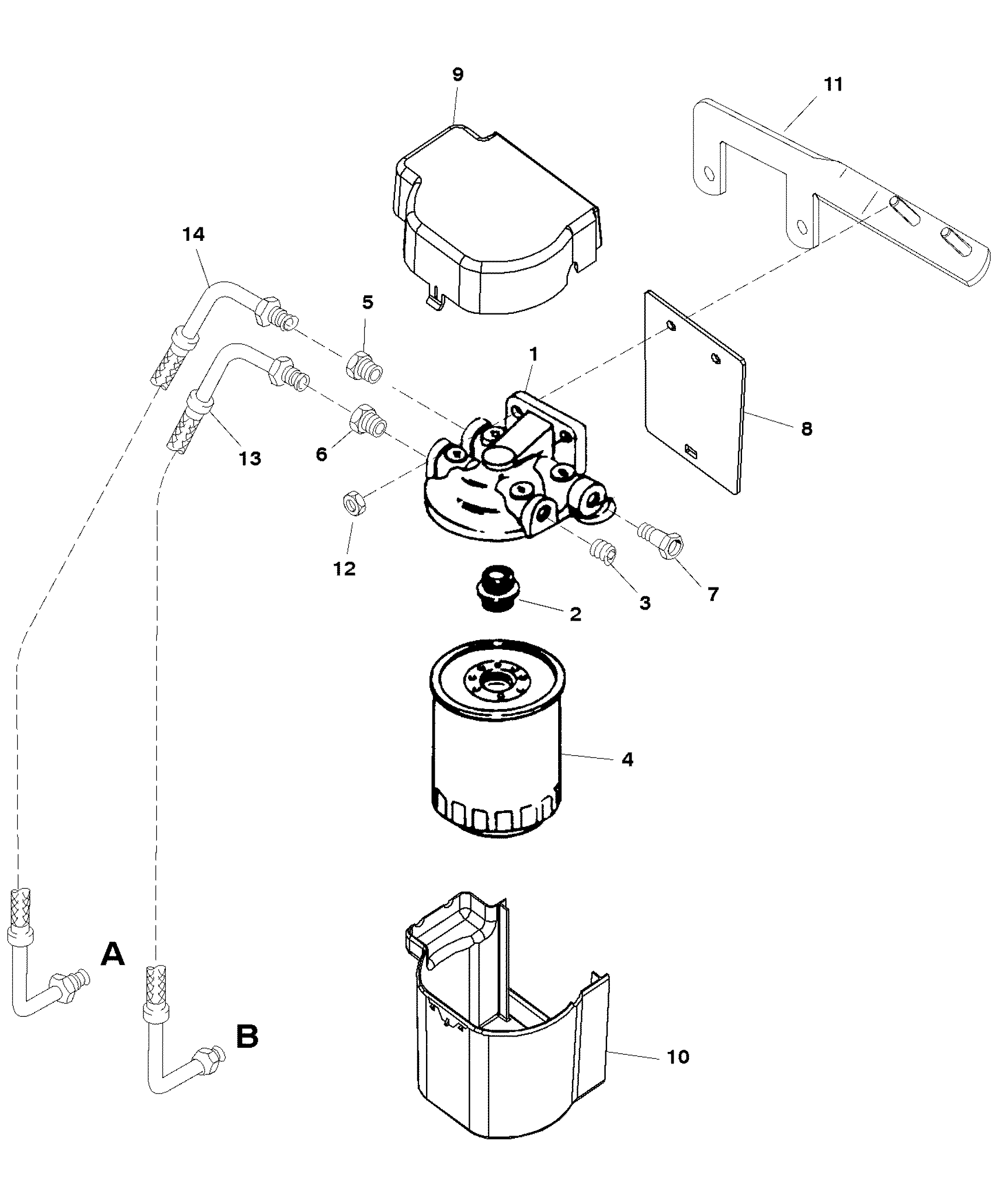

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 89876A3 | BASE ASSEMBLY-FUEL FILTER/WATER SEPARATOR | 1 | ||||||
| 2 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 3 | 22-32561 | PLUG-PIPE (1/4 IN.) | 1 | ||||||
| 4 | 35-802893Q01 | FUEL FILTER/WATER SEPARATOR | 1 | 35-807172 | |||||
| 5 | 22-33821 | FITTING | 1 | ||||||
| 6 | 22-808003 | FITTING | 1 | ||||||
| 7 | 22-807958 | FITTING-INLET | 1 | ||||||
| 8 | 807956T | INSULATOR-BACK | 1 | ||||||
| 9 | 807806T | INSULATOR-CAP | 1 | This Part is No Longer Available | |||||
| 10 | 807807T | INSULATOR-BASE | 1 | This Part is No Longer Available | |||||
| 11 | 807918T | BRACKET-FUEL FILTER BASE | 1 | ||||||
| 12 | 11-826709111 | NUT (5/16-24) | 2 | 11-45592 | |||||
| 13 | 32-807953 | FUEL LINE-FUEL PUMP TO FILTER BASE | 1 | 32-807953T | |||||
| 14 | 32-8M0045997 | FUEL LINE-FUEL REGULATOR TO FILTER BASE | 1 | 32-807954T |
