350 Mag Alpha EFI(Gen +) GM V-8 1997 - Serial 0K001509 and Up - Standard Cooling System (Alpha Engines)

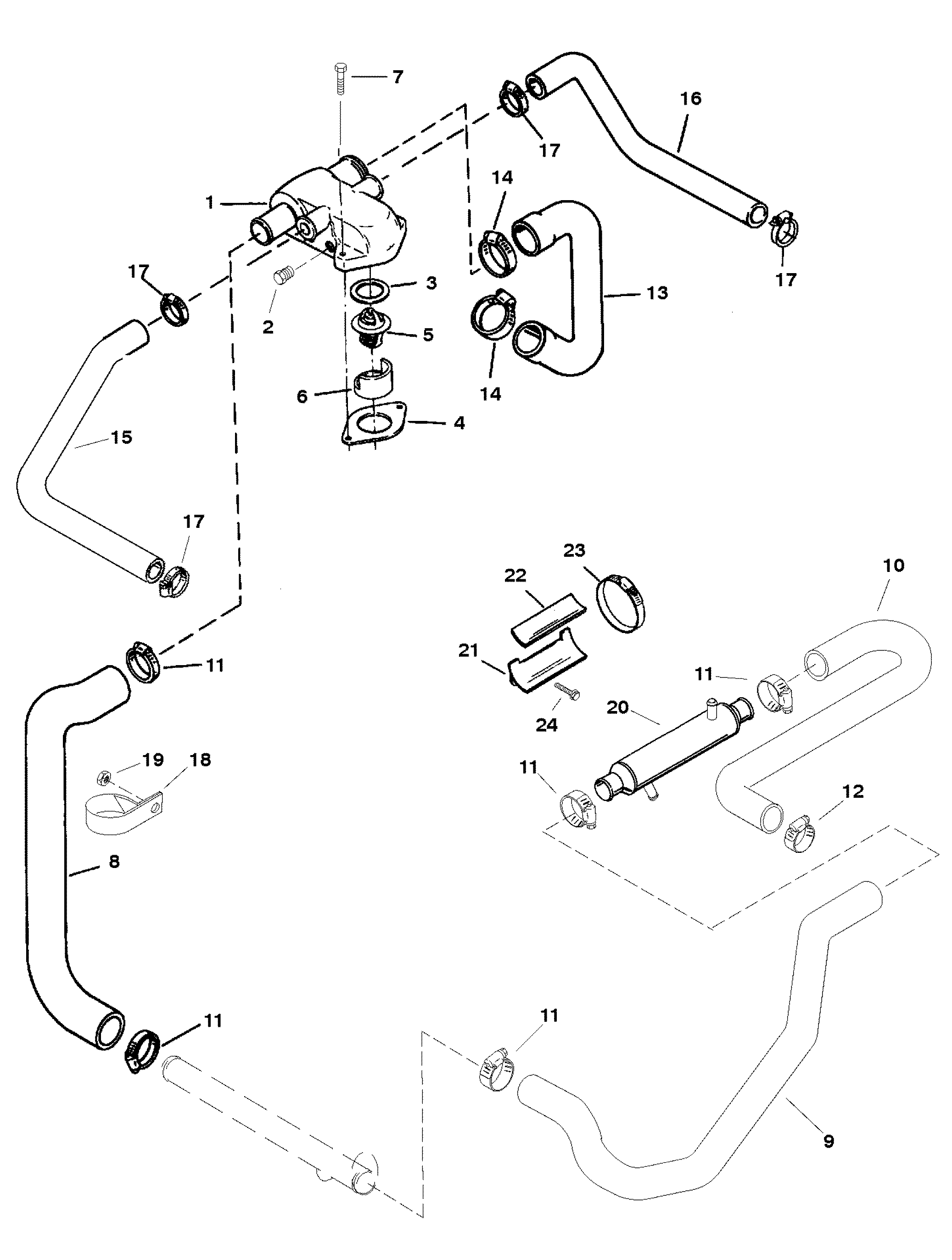

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806235A1



HOUSING ASSEMBLY-THERMOSTAT 1

2 22-32803

700-21894
PLUG-PIPE (3/8 IN.) 2

3 27-806871



GASKET-THERMOSTAT 1
2
4 27-530451



GASKET 1
2
5 807252T2



THERMOSTAT (160 DEG.) 1 8072522
6 23-806922



SLEEVE 1

7 10-98794 602-98-102-35 676-9-78129 700-28300 525-10-98794 SCREW (3/8-16 X 1 IN.) 2

8 32-808033



HOSE-THERMOSTAT HOUSING TO FUEL COOLER 1

9 32-8600891



HOSE-FUEL COOLER TO POWER STEERING COOLER 1 32-860089
10 32-807661



HOSE-POWER STEERING COOLER TO TRANSOM 1

11 54-815504222



CLAMP-HOSE 5

12 54-815504212



CLAMP-HOSE 1

13 32-861590A05



HOSE-THERMOSTAT HOUSING TO WATER PUMP 1 32-87108
14 54-815504232



CLAMP 2

15 32-860144



HOSE 1
THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
16 32-807697



HOSE 1
THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
17 54-815504220



CLAMP-HOSE 4

18 54-47715



CLIP 1

19 11-29250



NUT (5/16-24) 1

20861554T01



COOLER-POWER STEERING OIL 1 807292T
21 805546A2



BRACKET-TRANSMISSION OIL COOLER 1

22 772233



PAD 1

23 54-815504224



CLAMP 1

24 10-816585



SCREW (5/16-18 X 7/8 IN.) 1
- 27-75611A96



GASKET SET-ENGINE OVERHAUL 1
