350 Mag Alpha EFI(Gen +) GM V-8 1997 - Serial 0K001509 and Up - Pistons And Connecting Rods

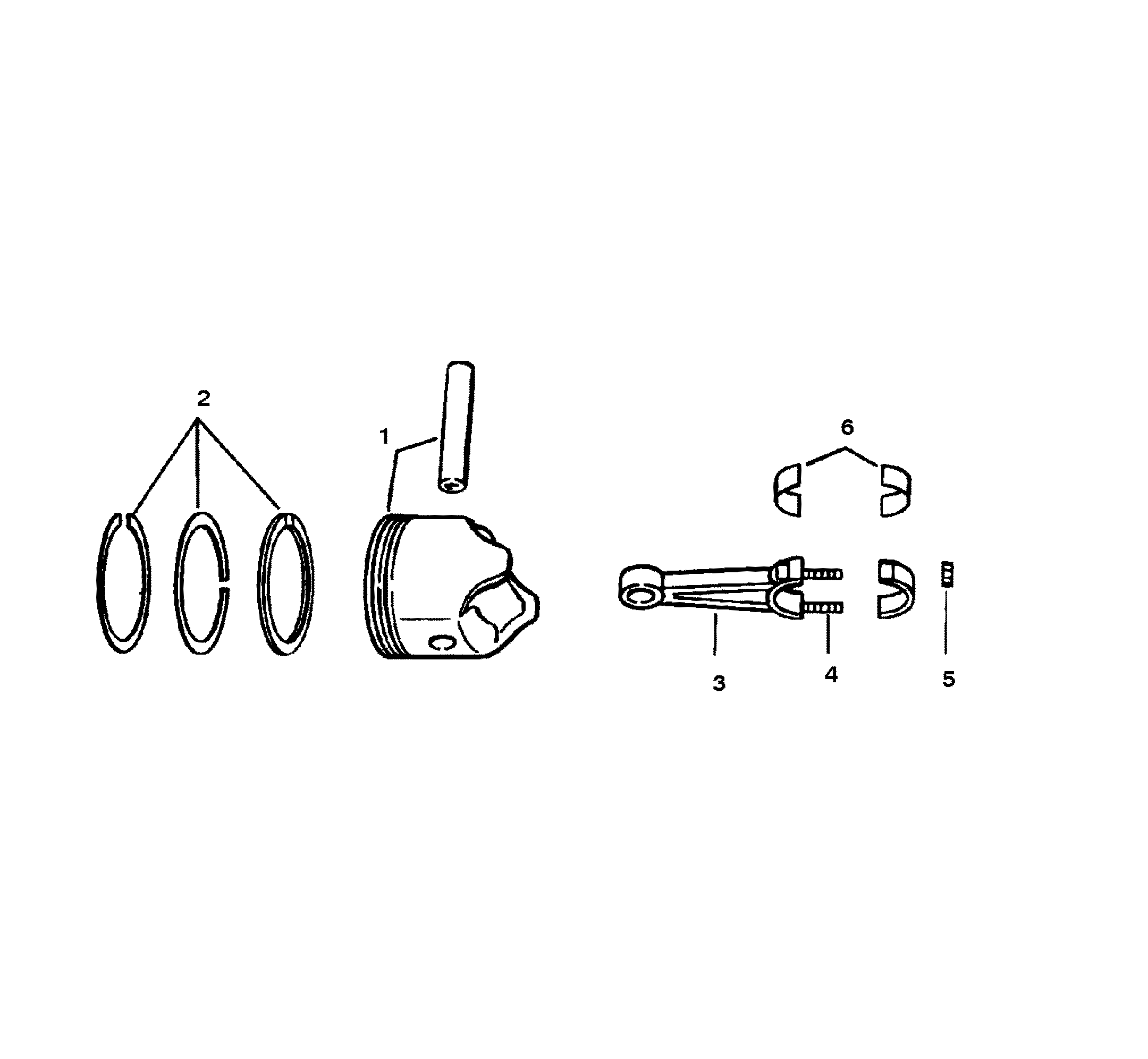

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 735-835001T | PISTON/PISTON PIN | 8 | 735-835001 | (STANDARD) | ||||
| 1 | 735-835002T | PISTON/PISTON PIN (.5MM O.S.) | AR | 735-835002 | 3 | ||||
| 2 | 39-8018611 | RING-PISTON | 8 | (STANDARD) | |||||
| 2 | 39-835000 | RING-PISTON (.5MM O.S.) | AR | 3 | |||||
| 3 | 614-8164T | CONNECTING ROD | 8 | 614-8164 | |||||
| 4 | 10-85802 | BOLT-CONNECTING ROD | 16 | This Part is No Longer Available | |||||
| 5 | 11-37493 | NUT | 16 | ||||||
| 6 | 23-85701 | BEARING UNIT (PAIR - STANDARD) | 8 | ||||||
| 6 | 23-85702 | BEARING UNIT (PAIR - .001 U.S.) | AR | 3 | |||||
| 6 | 23-85703 | BEARING UNIT (PAIR - .002 U.S.) | AR | 3 | |||||
| 6 | 23-85704 | BEARING UNIT (PAIR - .010 U.S.) | AR | 3 | |||||
| 6 | 23-85705 | BEARING UNIT (PAIR - .020 U.S.) | AR | 3 |
