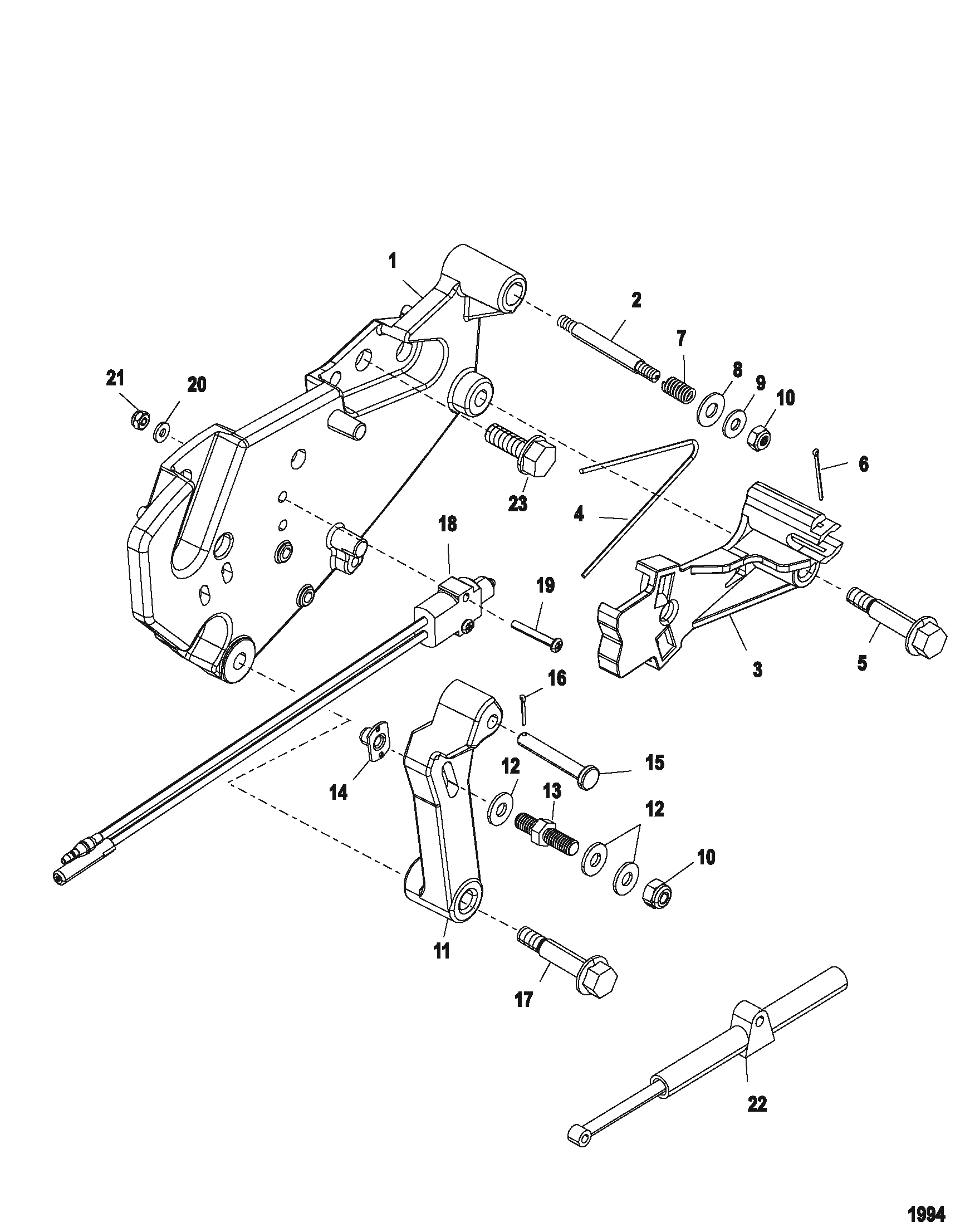

| 1 |
0000 |
807962A10 |
BRACKET ASSEMBLY Shift |
|
1 |
|
| 2 |
0016 |
8140021 |
STUD (.250 x 2.870) |
|
1 |
|
| 3 |
0000 |
13051A8 |
LEVER ASSEMBLY Actuating |
|
1 |
|
| 4 |
0024 |
OEM: 525-24-862850 |
SPRING |
|
1 |
|
| 5 |
0010 |
13743 |
SCREW (.312-18 x 1.843) Shoulder |
|
1 |
|
| 6 |
0018 |
32857 |
COTTER PIN |
|
1 |
|
| 7 |
0024 |
OEM: 525-24-98880 |
SPRING |
|
1 |
|
| 8 |
0012 |
OEM: 525-12-56720 |
WASHER (.330 x .750 x .060) Stainless Steel (.75 Inch Diameter) |
|
1 |
|
| 9 |
0012 |
OEM: 525-12-35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel (.625 Inch Diameter) |
|
1 |
|
| 10 |
0011 |
OEM: 525-11-8267119 |
NUT (.250-28) |
|
2 |
|
| 11 |
0000 |
13898A3 |
LEVER ASSEMBLY Shift |
|
1 |
|
| 12 |
0012 |
OEM: 525-12-35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel |
|
3 |
|
| 13 |
0016 |
961123 |
STUD (.250-28 x 1.90) |
|
1 |
|
| 14 |
0011 |
OEM: 525-11-63341 |
TEE NUT |
|
1 |
|
| 15 |
0017 |
OEM: 525-17-814001 |
PIN Clevis |
|
1 |
|
| 16 |
0018 |
21071 |
COTTER PIN |
|
1 |
|
| 17 |
0010 |
13743 |
SCREW (.312-18 x 1.843) Shoulder |
|
1 |
|
| 18 |
0087 |
OEM: 525-87-814281A5 |
SWITCH ASSEMBLY Shift Interrupt |
|
1 |
|
| 19 |
0010 |
OEM: 525-10-860077 |
SCREW (#6-32 x 1.00) |
|
2 |
|
| 20 |
0012 |
OEM: 525-12-11303 |
WASHER |
|
2 |
|
| 21 |
0011 |
OEM: 525-11-F1669 |
NUT (#6-32) |
|
2 |
|
| 22 |
0000 |
OEM: 525-813995A1 |
GUIDE ASSEMBLY Spring |
|
1 |
|
| 23 |
0010 |
OEM: 525-10-657461 |
SCREW AND LOCKWASHER (.250- 20 x .625) |
|
3 |
|
