5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Distribitor And Ignition Components

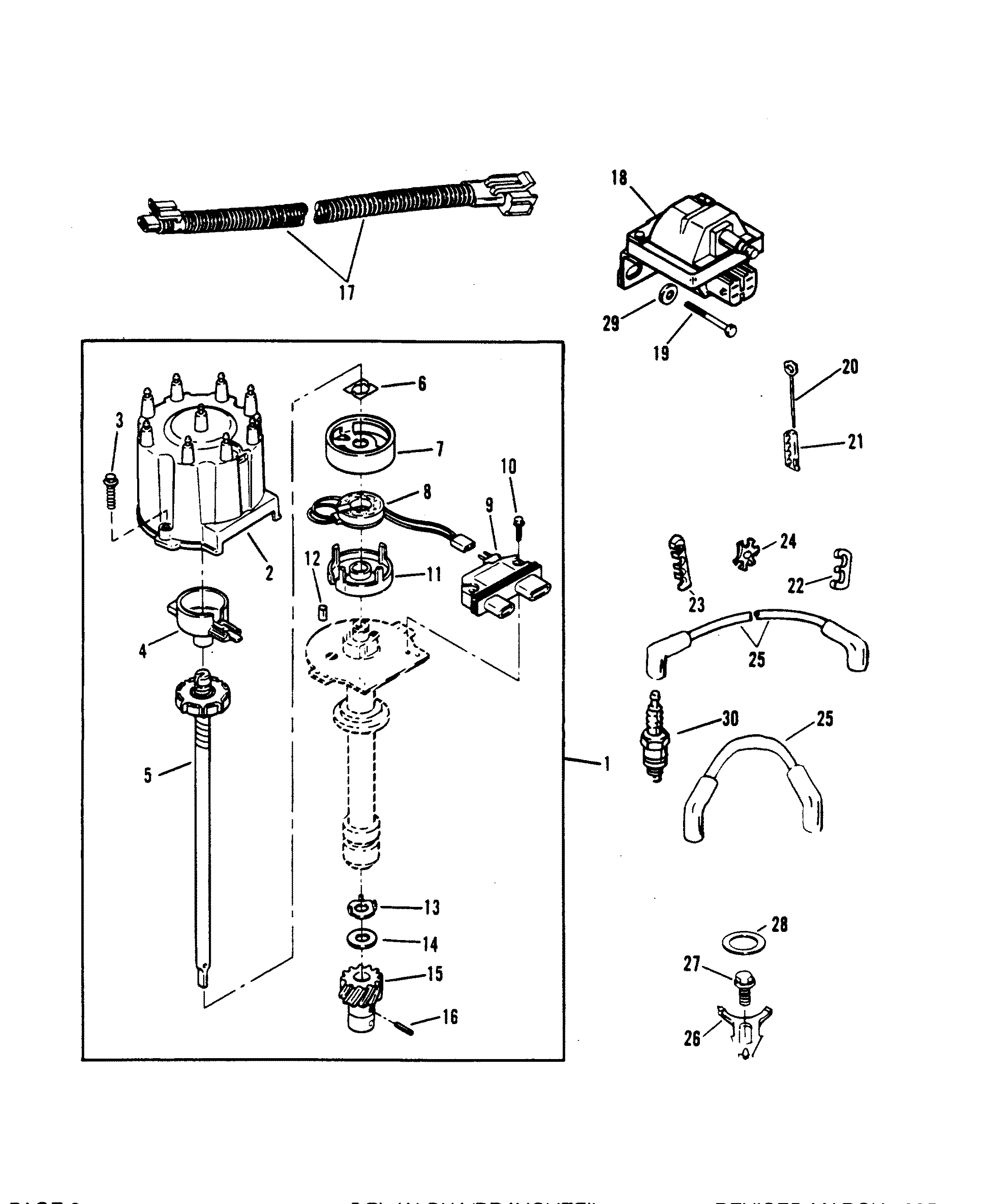

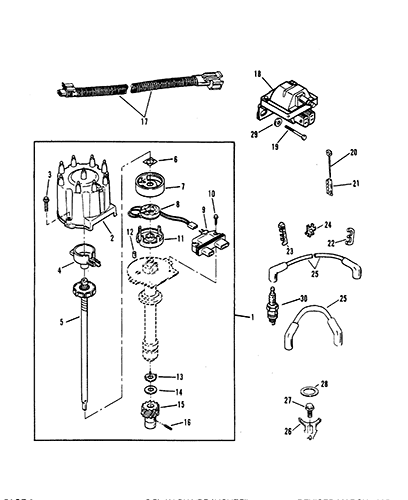

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1



DISTRIBUTOR ASSEMBLY 1

2 808483T3
676-9-29411
700-71400

CAP 1 808483
3 10-808491



SCREW 2
This Part is No Longer Available
4 8M6001253

700-71100

ROTOR 1 808484
5 808485T



SHAFT AND MAGNET 1 808485 This Part is No Longer Available
6 808487



RETAINER 1
This Part is No Longer Available
7 808486



SHIELD 1
This Part is No Longer Available
8 811639T

700-72130

COIL 1 811639
9 811637001



MODULE 1 811637
10 10-811638



SCREW 2
This Part is No Longer Available
11 811641



POLE PIECE 1

12 17-808488



PIN 1
This Part is No Longer Available
13 12-46350



WASHER 1
This Part is No Longer Available
14 12-808489



WASHER 1

15 43-808490



DRIVE GEAR 1

16 17-34109



PIN 1
This Part is No Longer Available
17 84-817376T01



HARNESS 1 84-817376T
18 806673T1

700-72114

IGNITION COIL 1 806673T
19 10-86750



SCREW 2

20 16-90096A1



STUD ASSEMBLY 2

21 54-72821



RETAINER 2

22 54676



RETAINER (2 WIRE) 2

23 32783



RETAINER (3 WIRE) 2

24 32784



RETAINER (4 WIRE) 2

25 84-816608Q70



SPARK PLUG WIRE KIT 1 84-816608A70
26 52185



CLAMP 1

27 10-805559



SCREW 1

28 27-344863



GASKET 1
2
29 12-20084

700-21664

WASHER 2

30 33-898264001



SPARK PLUG 8 33-59571
