5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Senders And Sensors

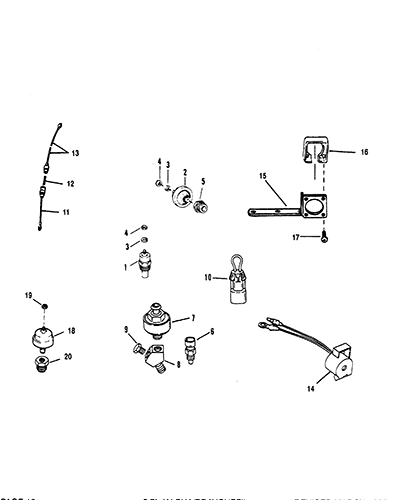

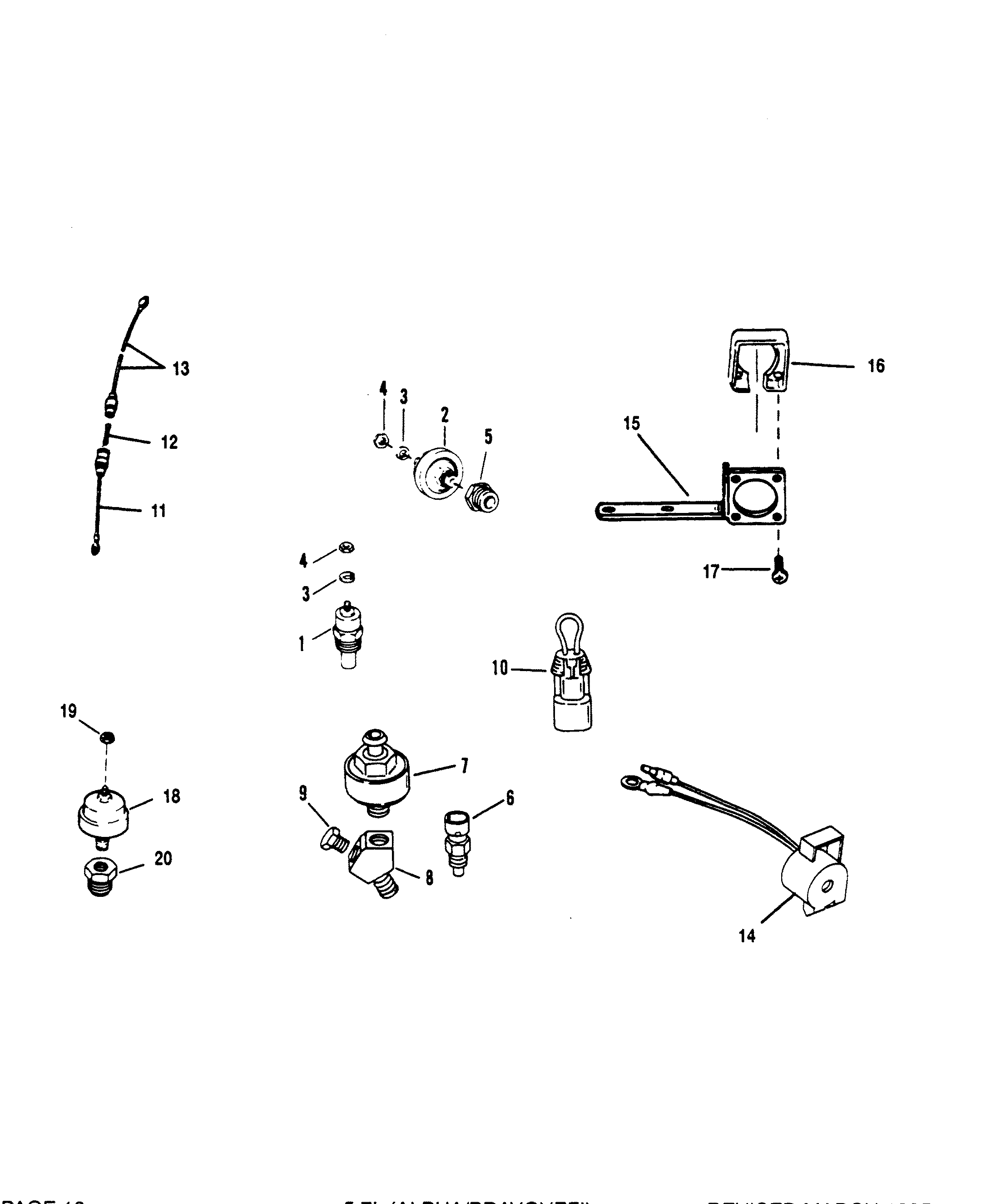

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806490T | 676-9-42400 | WATER TEMPERATURE SENDER | 1 | |||||
| 1 | 49734 | WATER TEMPERATURE SENDER (DUAL) | OPT. | ||||||
| 2 | 8M0068784 | OIL PRESSURE SENDER | 1 | ||||||
| 2 | 37293T | OIL PRESSURE SENDER (DUAL) | OPT. | ||||||
| 3 | 13-26996 | LOCKWASHER | 2 | ||||||
| 4 | 11-68219 | NUT | 2 | ||||||
| 5 | 22-805059 | REDUCER | 1 | ||||||
| 6 | 805218T | 676-9-42402 |
COOLANT TEMPERATURE SENSOR | 1 | |||||
| 7 | 806612T | 676-9-33503 |
KNOCK SENSOR | 1 | |||||
| 8 | 22-806705 | Y-FITTING | 1 | This Part is No Longer Available | |||||
| 9 | 22-36382 | 700-21887 |
PIPE PLUG | 1 | |||||
| 10 | 805592A1 | CONNECTOR | 1 | BRAVO | |||||
| 11 | 84-95084A9 | WIRE | 1 | BRAVO | |||||
| 12 | 88-79091 | FUSE | 1 | BRAVO | |||||
| 13 | 84-95084A10 | WIRE | 1 | BRAVO | |||||
| 14 | 816492A6 | AUDIO WARNING SWITCH | 1 | ||||||
| 15 | 805383T | BRACKET | 1 | ||||||
| 16 | 26079A2 | PLATE ASSEMBLY | 1 | ||||||
| 17 | 10-15001 | SCREW | 4 | ||||||
| 18 | 87-805605A1 | PRESSURE SWITCH | 1 | ||||||
| 19 | 11-45076 | NUT | 1 | ||||||
| 20 | 22-8053281 | ELBOW | 1 |
