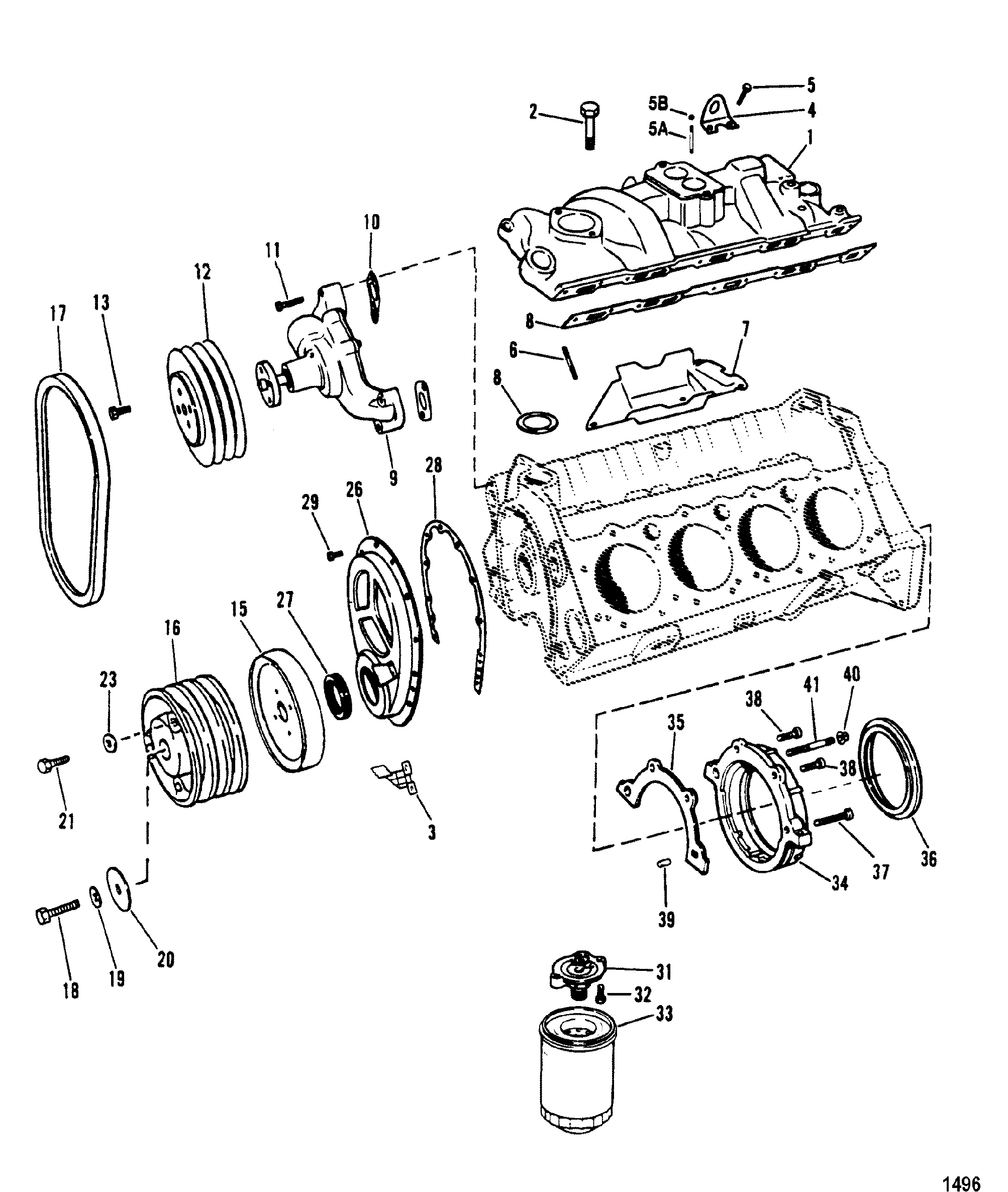

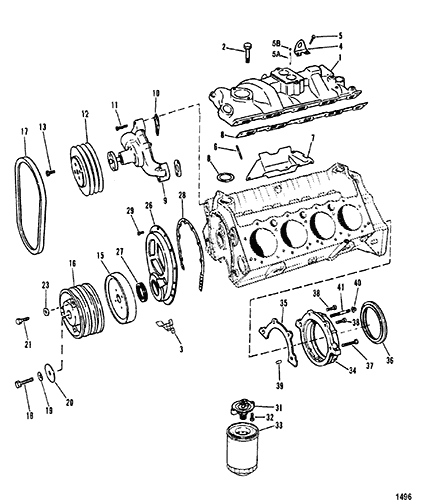

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
17620 |
|
|
|
|
INTAKE MANIFOLD |
1 |
|
This Part is No Longer Available |
| 2 |
10-806681 |
|
|
|
|
BOLT |
9 |
|
|
| 2 |
10-802655 |
|
|
|
|
BOLT |
3 |
10-11975 |
|
| 3 |
75435A1 |
|
|
|
|
TIMING POINTER |
1 |
|
|
| 4 |
54-47512 |
|
|
|
|
LIFTING EYE |
1 |
|
|
| 5 |
10-34354 |
|
|
700-22447
|
|
SCREW |
2 |
|
|
| 5A |
16-806250 |
|
|
|
|
STUD |
2 |
|
|
| 5B |
11-32219 |
|
|
|
|
NUT |
2 |
|
|
| 6 |
N.S.S. |
|
|
|
|
STUD (GM#3959544) |
4 |
|
|
| 7 |
72647 |
|
|
|
|
GUARD |
1 |
|
This Part is No Longer Available |
| 8 |
27-17145 |
|
676-9-61200
|
700-30860
|
|
GASKET SET |
1 |
|
(Use RTV Silicone Sealant for end gasket - See Service Manual) 2 |
| 9 |
8503991 |
|
|
|
|
WATER PUMP ASSEMBLY |
1 |
17437 |
|
| 10 |
27-34897 |
|
676-9-60065 |
700-31380 |
|
GASKET |
2 |
|
2 |
| 11 |
10-32132 |
|
|
|
|
SCREW (1-3/4") |
2 |
|
|
| 11 |
10-47688 |
|
|
|
|
SCREW (2-3/4") |
1 |
|
|
| 11 |
10-52200 |
|
|
|
|
SCREW (1-1/2") |
1 |
|
No longer made, limited availability |
| 12 |
15120T |
|
|
|
|
PULLEY (5-1/2" DIA.) |
1 |
|
This Part is No Longer Available |
| 12 |
19692T01 |
|
|
|
|
PULLEY (7" DIA.) |
1 |
19692T |
|
| 13 |
10-47277 |
|
|
|
|
SCREW |
4 |
|
|
| 15 |
75420 |
|
|
|
|
HARMONIC BALANCER |
1 |
|
|
| 16 |
90081A1 |
|
|
|
|
PULLEY |
1 |
|
|
| 17 |
57-48120Q1 |
|
|
|
|
V-BELT |
1 |
57-48120A1 |
|
| 18 |
10-32515 |
|
|
|
|
BOLT |
1 |
|
|
| 19 |
13-39131 |
|
|
|
|
LOCKWASHER |
1 |
|
|
| 20 |
35332001 |
|
|
|
|
WASHER |
1 |
12-35332 |
|
| 21 |
10-53833 |
|
|
|
|
BOLT |
3 |
|
|
| 23 |
|
|
|
|
WASHER |
3 |
|
|
| 26 |
14249A2 |
|
|
|
|
COVER |
1 |
|
|
| 27 |
26-97335 |
|
676-9-61610
|
|
|
OIL SEAL (click here) |
1 |
|
2 |
| 28 |
27-14250 |
|
676-9-61600 |
700-30530 |
|
GASKET |
1 |
|
2 |
| 29 |
10-35366 |
|
|
|
|
SCREW |
10 |
|
|
| 31 |
71920 |
|
|
|
|
FILTER VALVE |
1 |
53338 |
W/O REMOTE OIL FILTER |
| 32 |
10-54786 |
|
|
|
|
SCREW |
2 |
|
W/O REMOTE OIL FILTER |
| 33 |
35-866340Q03 |
|
676-9-57825
|
|
|
OIL FILTER |
1 |
14957 |
W/O REMOTE OIL FILTER |
| 34 |
14239 |
|
|
|
|
RETAINER (REAR) |
1 |
|
|
| 35 |
27-881715 |
|
676-9-61511
|
|
|
GASKET |
1 |
27-14241 |
2 |
| 36 |
26-14240 |
|
|
700-85790
|
|
OIL SEAL (REAR) |
1 |
|
2 |
| 37 |
10-8M0064241 |
|
|
|
|
BOLT |
1 |
10-14243 |
|
| 38 |
10-14242 |
|
|
|
|
BOLT |
2 |
|
|
| 39 |
17-14263 |
|
|
|
|
DOWEL PIN |
1 |
|
|
| 40 |
11-11996 |
|
|
|
|
NUT |
1 |
|
|
| 41 |
16-14827 |
|
|
|
|
STUD |
1 |
|
|
| 42 |
10-49011 |
|
|
|
|
SCREW |
4 |
|
This Part is No Longer Available |
| - |
27-75611A88 |
|
|
700-39017
|
|
ENGINE GASKET SET - Overhaul |
1 |
|
|
| |
|
|
|
|
|
|
|
|
|
