5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Senders And Sensors
Other Sub-Sections:
- Alternator (Mando)
- Cast Iron Exhaust Elbow (Alpha)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold
- Exhaust Manifold - Stainless Steel Exh. Elbow(Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)

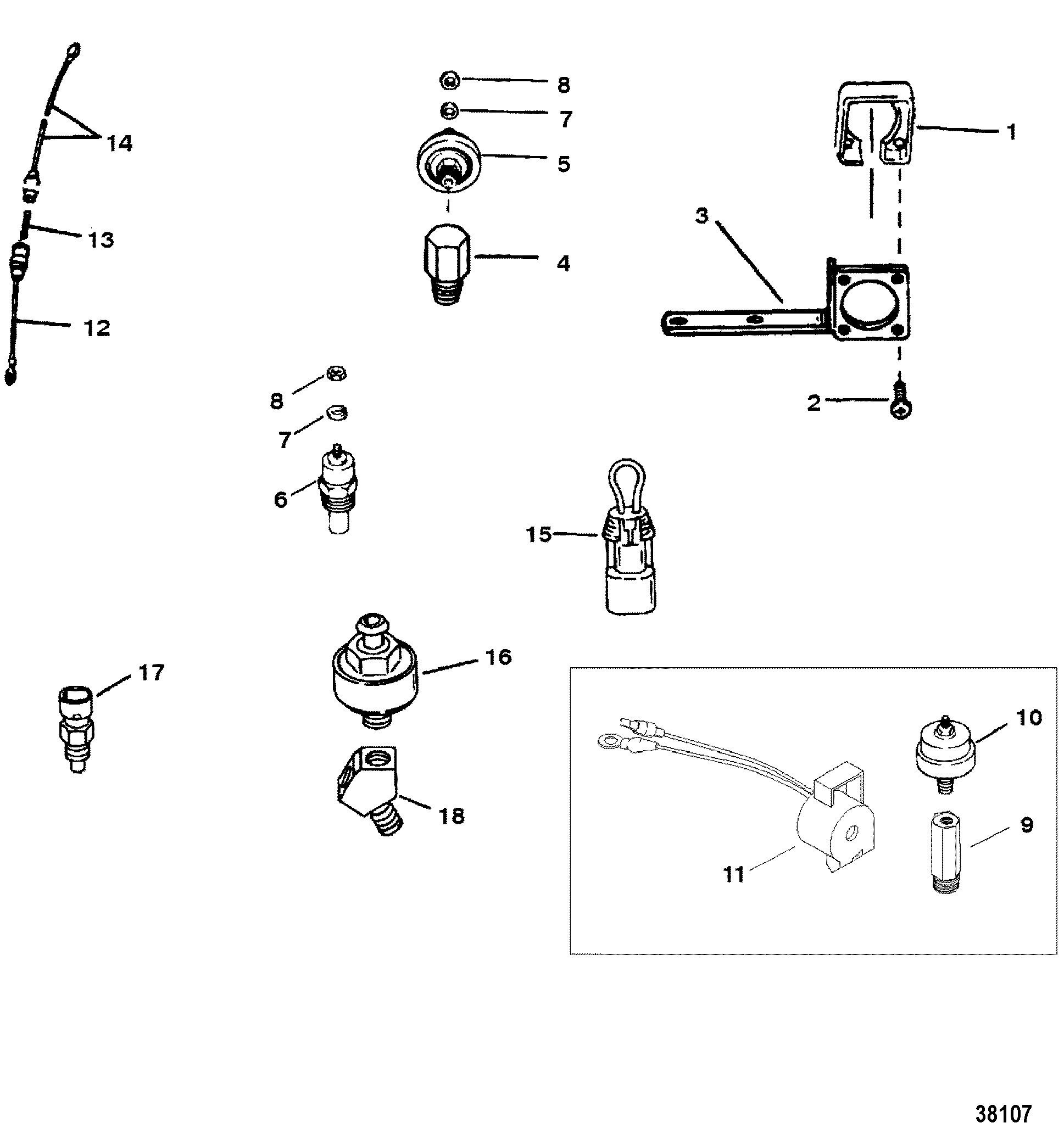

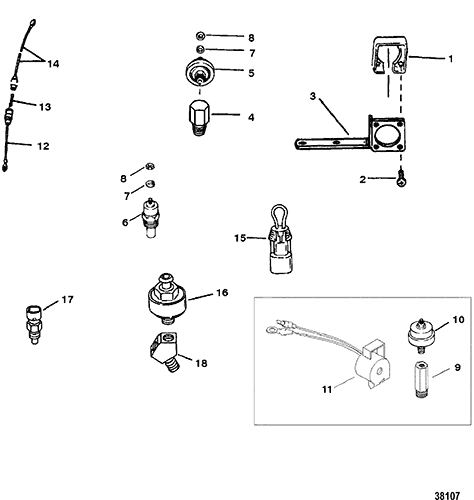

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
3 | 805383T | BRACKET, Harness Mounting | 1 | ||||||
4 | 22-8053281 | FITTING, Elbow (90 Degree - .125) | 1 | ||||||
5 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
5 | 37293T | SENDER ASSEMBLY, Oil Pressure (DUAL STATION) | OPT | 37293 | 4 | ||||
6 | 806490T | 676-9-42400 |
SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | ||||
6 | 49734 | SENDER ASSEMBLY, Water Temperature (DUAL STATION) | OPT | 49734A1 | 4 | ||||
7 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
8 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
9 | 22-805059 | FITTING | 1 | AUDIO WARNING SYSTEM | |||||
10 | 87-805605A1 | SWITCH ASSEMBLY | 1 | AUDIO WARNING SYSTEM | |||||
11 | 816492A6 | ALARM KIT | 1 | AUDIO WARNING SYSTEM | |||||
12 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | BRAVO ENGINES | |||||
13 | 88-79091 | FUSE, 20 Ampere | 1 | BRAVO ENGINES | |||||
14 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | BRAVO ENGINES | |||||
15 | 805592A1 | CONNECTOR ASSEMBLY | 1 | BRAVO ENGINES | |||||
16 | 806612T | 676-9-33503 |
SENSOR, Knock | 1 | |||||
17 | 805218T | 676-9-42402 |
SENSOR | 1 | |||||
18 | 22-8067051 | FITTING, Dual | 1 |
