| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

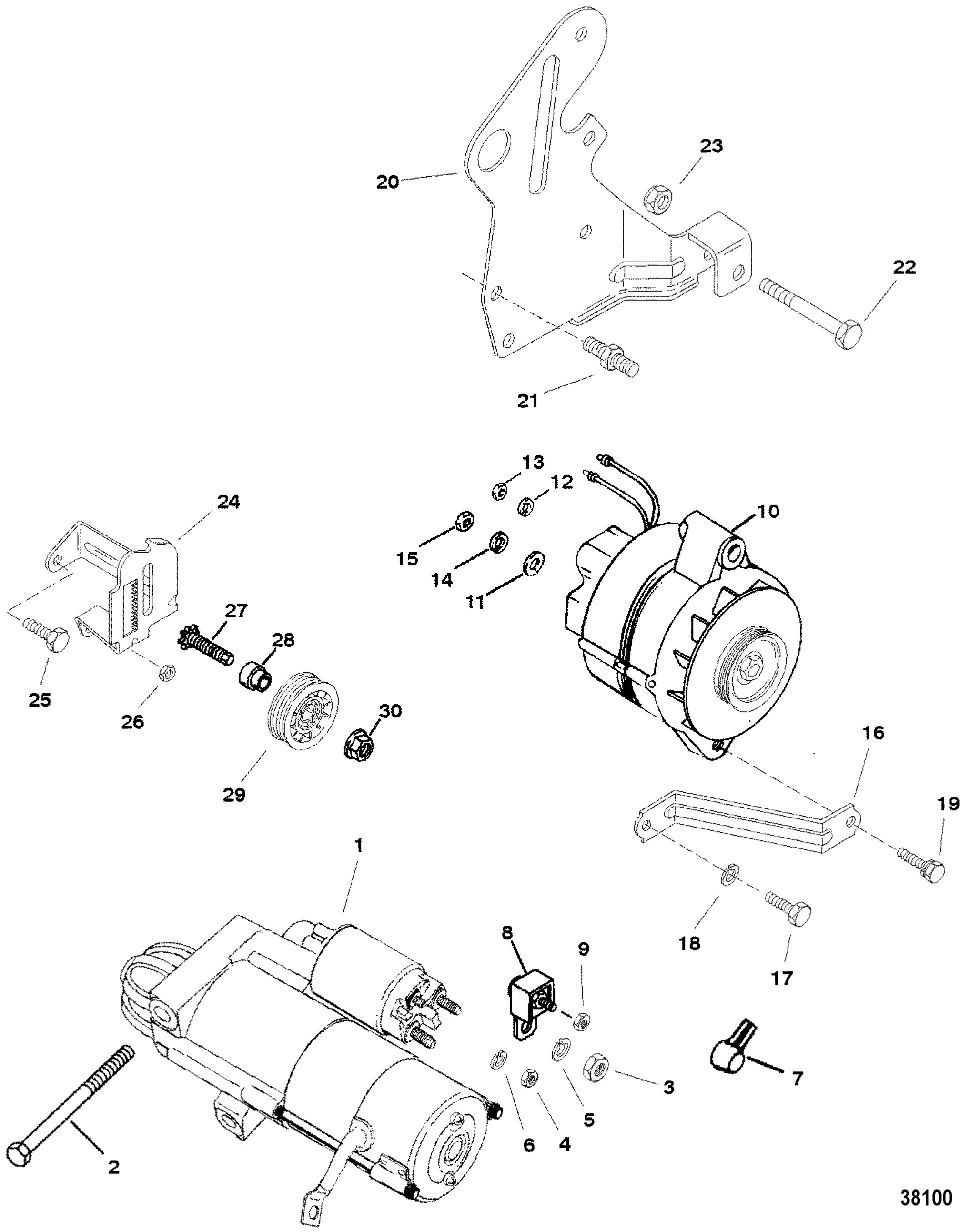

| 1 |
50-863007A1 |
|
|
|
|
STARTER MOTOR ASSEMBLY |
1 |
50-806964A3 |
(SEE "STARTER MOTOR" FOR BREAKDOWN) |
| 2 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33) |
2 |
|
|
| 3 |
11-806949 |
|
|
|
|
NUT, (M8-1.5) |
1 |
|
|
| 4 |
11-400211 |
|
|
|
|
NUT, (M5) Stainless Steel |
1 |
|
|
| 5 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 7 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
| 8 |
88-79023A91 |
|
|
|
|
FUSE ASSEMBLY, 90 Ampere |
1 |
|
|
| 9 |
11-21825 |
|
|
|
|
NUT, (.250-28) |
1 |
|
|
| 10 |
807653T |
|
|
|
|
ALTERNATOR ASSEMBLY |
1 |
|
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) |
| 11 |
12-96457 |
|
|
|
|
WASHER, Phenolic (.27 x .81 x .062) |
1 |
|
|
| 12 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 13 |
11-79989 |
|
|
|
|
NUT, (#10-24) Stainless Steel |
1 |
|
|
| 14 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
1 |
|
|
| 15 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
1 |
|
|
| 16 |
807750T |
|
|
|
|
BRACE |
1 |
|
|
| 17 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
1 |
|
|
| 18 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
|
| 19 |
10-29198 |
|
|
|
|
SCREW AND LOCKWASHER, (.312-18 x .875) |
1 |
|
|
| 20 |
860370T |
|
|
|
|
BRACKET, Alternator/Power Steering |
1 |
|
|
| 21 |
16-860102 |
|
|
|
|
STUD, (.375-16 x 1.730) |
3 |
|
|
| 22 |
10-56743 |
|
|
|
|
SCREW, (.375-24 x 3.125) |
1 |
|
|
| 23 |
11-23161 |
|
|
|
|
NUT, (.375-24) |
1 |
|
|
| 24 |
807767T |
|
|
|
|
BRACKET, Idler Adjustment |
1 |
|
|
| 25 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
1 |
|
|
| 26 |
11-29250 |
|
|
|
|
NUT, (.312-24) |
1 |
|
|
| 27 |
43-8183812 |
|
|
|
|
PINION STUD, (.437-20) Stainless Steel |
1 |
|
|
| 28 |
865193 |
|
|
|
|
BUSHING |
1 |
818380T |
|
| 29 |
807757T |
|
|
|
|
PULLEY ASSEMBLY, Idler - Black |
1 |
|
|
| 30 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
1 |
11-817618 |
|
