5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Starter Motor

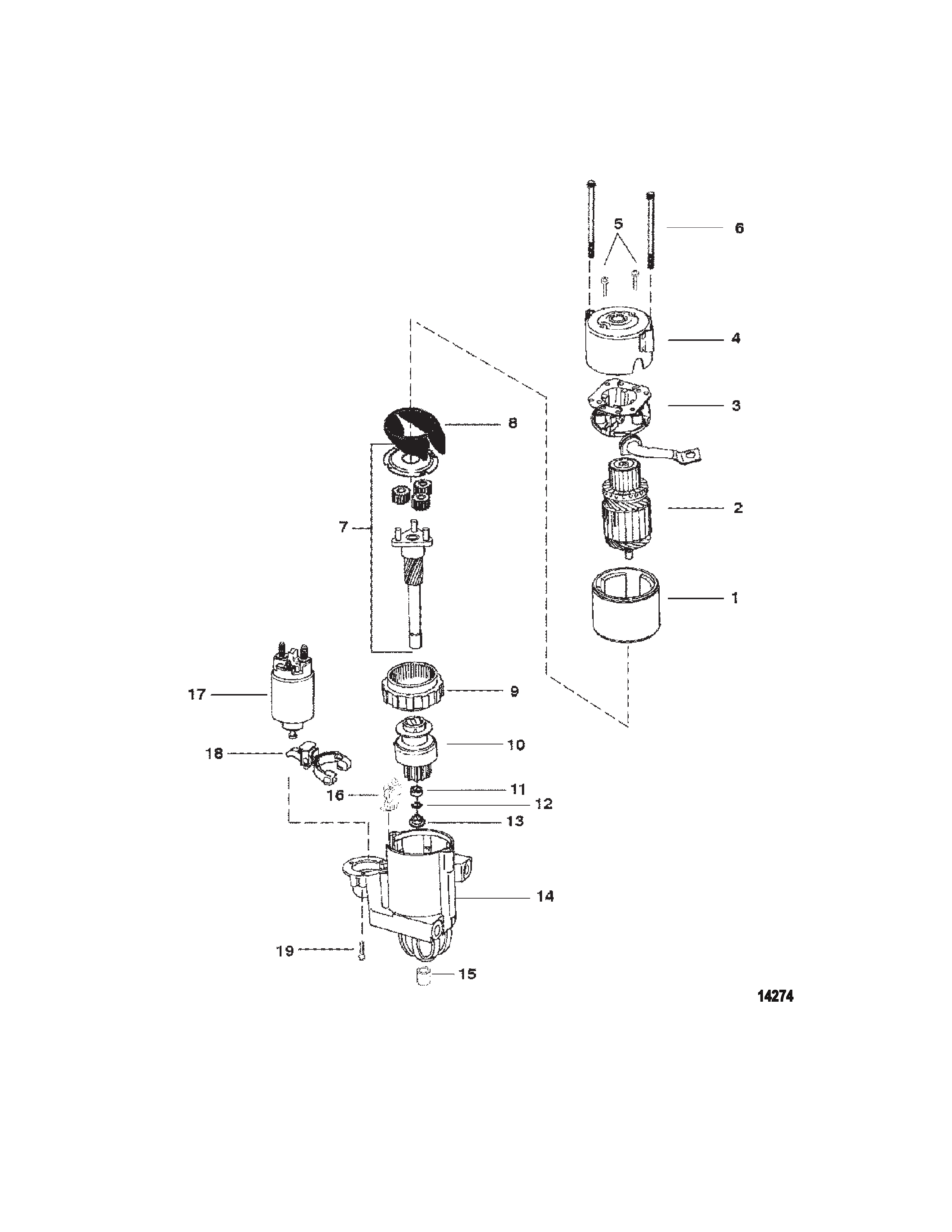

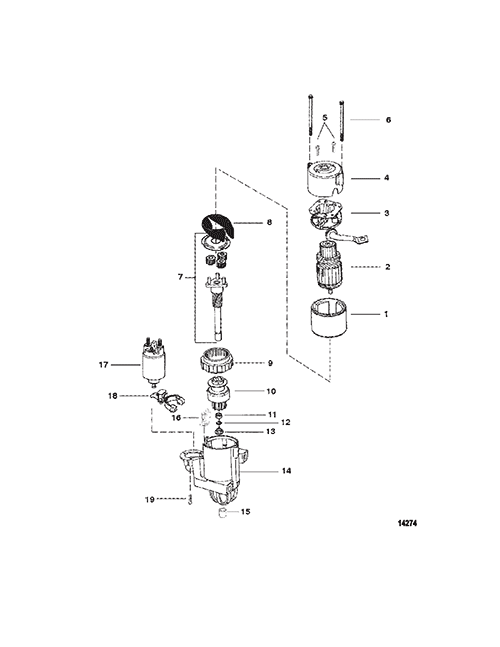

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0050 806964A3 STARTER MOTOR ASSEMBLY   1 [1]
2   NSS NOT SOLD SEPARATE Armature   1
3   NSS NOT SOLD SEPARATE Brush Holder And Spring   1
4   NSS NOT SOLD SEPARATE Frame   1
5   NSS NOT SOLD SEPARATE Screw   2
6   NSS NOT SOLD SEPARATE Bolt Thru   2
7   NSS NOT SOLD SEPARATE Shaft And Gear   1
8   NSS NOT SOLD SEPARATE Gasket   1
9   NSS NOT SOLD SEPARATE Gear   1
10   NSS NOT SOLD SEPARATE Drive   1
11 0000 33291 COLLAR   1
12 0053 33290 RING Retaining   1
13   NSS NOT SOLD SEPARATE Color Thrust   1
14 0000 809459 HOUSING   1
15 0023 814476 BUSHING   1
16   NSS NOT SOLD SEPARATE Grommet   1
17 0000 OEM: 525-809463A1, Sierra: 676-18-5811, GLM: 700-72450 SOLENOID KIT   1
18   NSS NOT SOLD SEPARATE Lever   1
19   NSS NOT SOLD SEPARATE Screw   3

PART NOTES:

[1] - Alternate part numbers:

806964A 3QS

864340R02Reman
