525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Shift Bracket

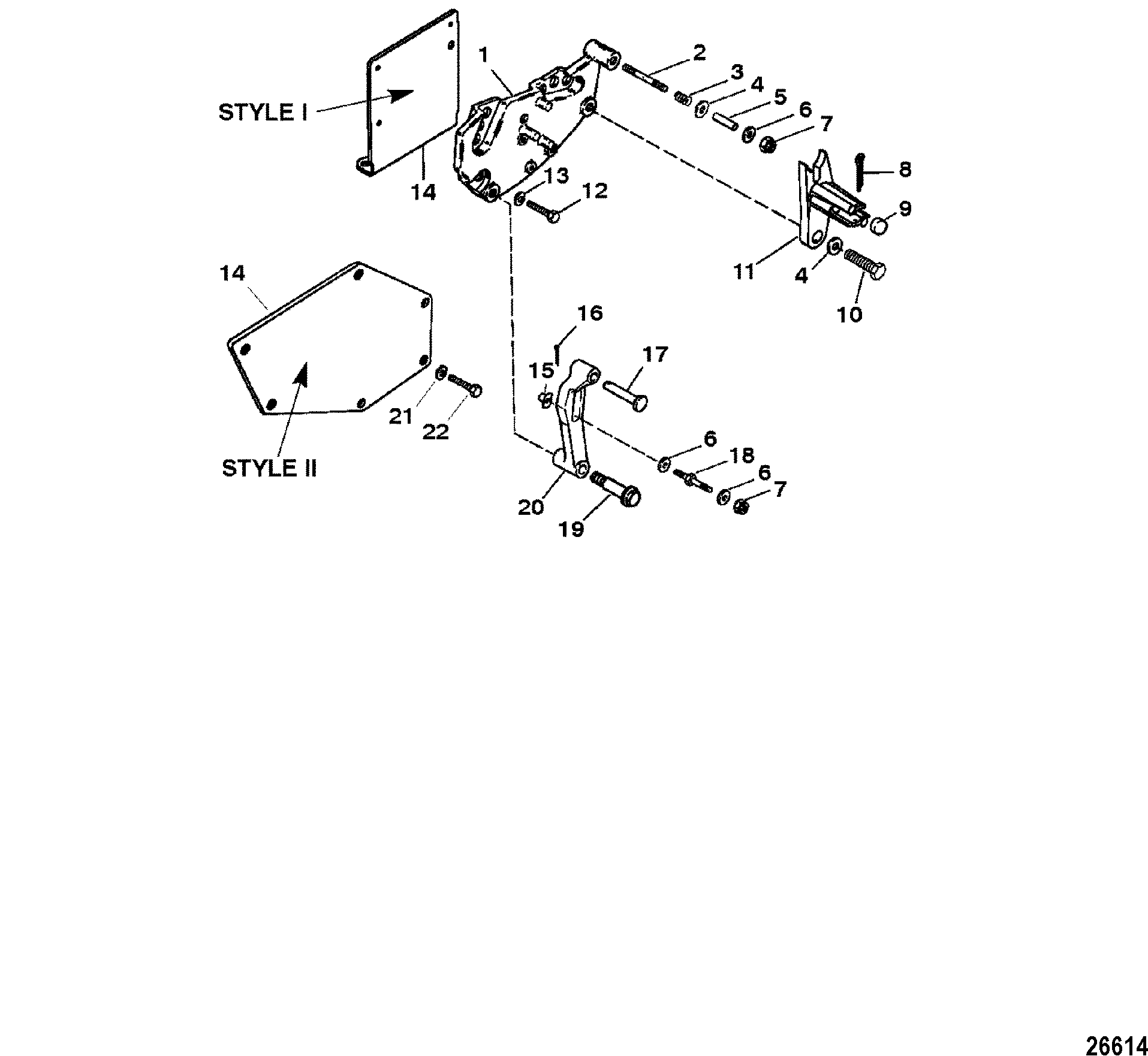

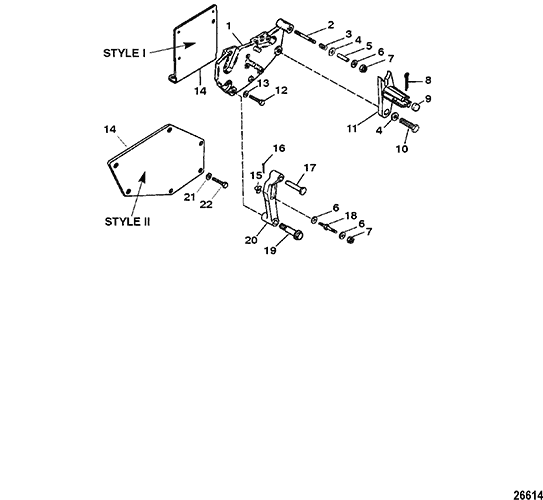

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15



BRACKET ASSEMBLY, Shift 1 99237A10 SN# 0F745260 THRU 0F877734
1 807962A15



BRACKET ASSEMBLY, Shift 1 807962A3 SN# 0K000012 THRU 0L415623
2 16-865154A02



STUD, (.250-20/.250-28 x 2.120), Shift Cable 1 16-987981
3 24-98880



SPRING, Shift Cable Stud 1

4 12-56720



WASHER, (.330 x .750 x .060) 2

5 23-90523



SPACER, (.420 x .440 x .750) Cad Plate 1

6 12-35462



WASHER, (.2656 x .625 x .0625) 4

7 11-8267119



NUT, (.250-28) 2 11-13438
8 18-328571



COTTER PIN 1 18-32857
9 23-98828



SPACER 1

10 10-53167



SCREW, (.312-18 x .880) 1

11 865434A02



RETAINER, Shift Cable 1 123811
12 10-98256



SCREW, (.250-28 x .500) 3
SN# 0F745260 THRU 0F877734
12 10-28635



SCREW, (.250-20 x .620) 3
SN# 0K000012 THRU 0L415623
13 13-26992



LOCKWASHER, (.250) 3

14 8M0052632



PLATE, Adapter 1 816283 Style I SN# 0F745260 THRU 0F877734
14 848887



PLATE, Adapter 1
Style II SN# 0K000012 THRU 0L415623
15 11-63341



TEE NUT, Shift Cable Stud 1

16 18-210711



COTTER PIN 1 18-21071
17 17-68402



PIN, (.250 x 1.13), Shoulder - Shaft Lever 1

18 16-96112



STUD, (.250-28 x 2.00), Throttle Cable Anchor - Shift Cable 1

19 10-13743



SCREW, (.312-18 x 1.843), Shoulder 1

20 863911A12



LEVER, Shift 1 138981
21 13-26992



LOCKWASHER, (.250) 3
SN# 0K000012 THRU 0L415623
22 10-73286



SCREW, (.250-20 x .500) 3
SN# 0K000012 THRU 0L415623
