525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Sea Water Pump Assembly

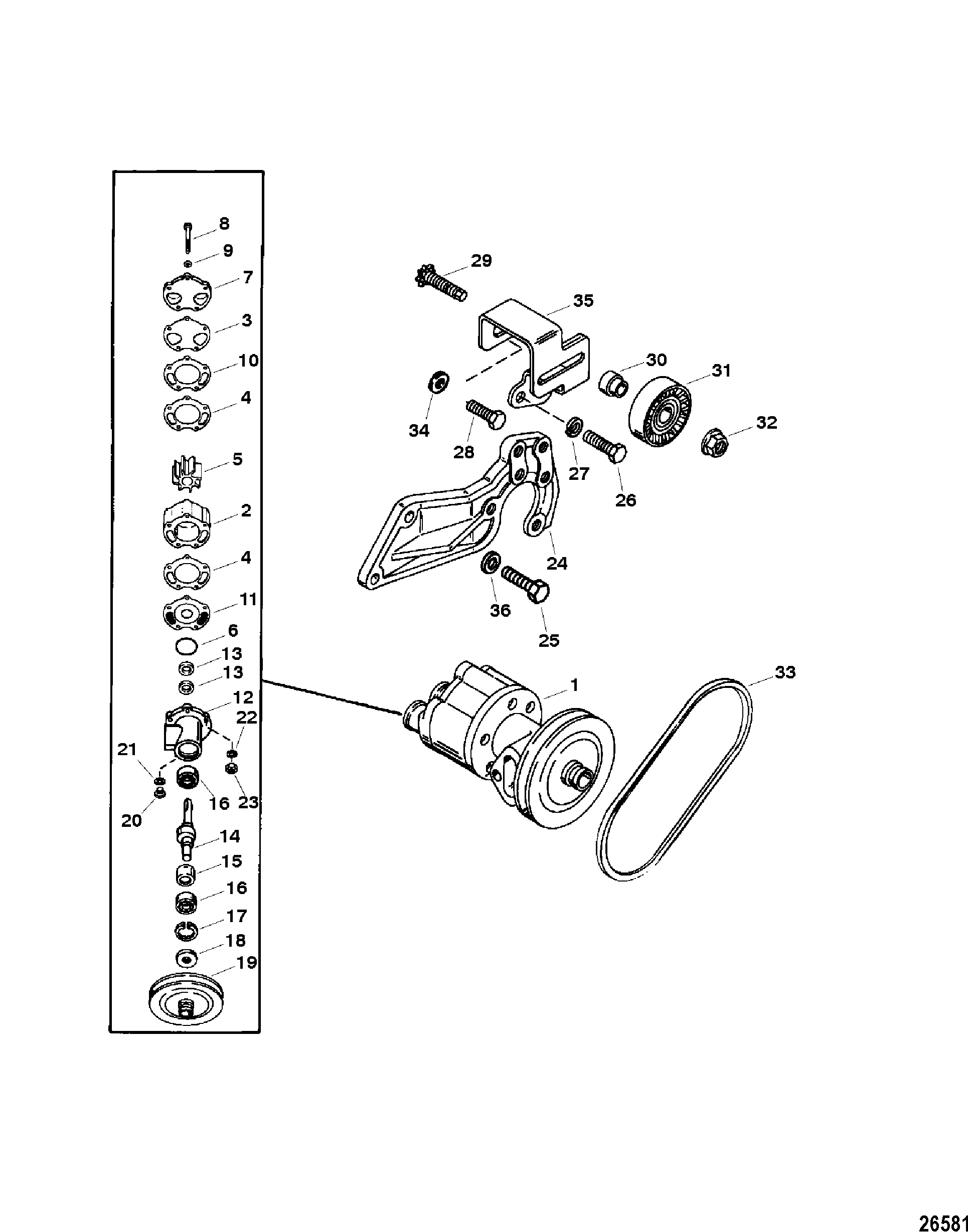

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 46-72774A82



PUMP ASSEMBLY, Sea Water - Complete 1

- 22-36382

700-21887
FITTING, (.250-18) Brass 2

2 46-72774A89



BODY/IMPELLER KIT, Sea Water Pump 1

3 27-8052151



GASKET, Cover To Outer Wear Plate 1

4 27-94914

700-32730
GASKET, Body To Wear Plate 2

5 47-59362T1 625-4011 676-9-45375 700-89740
IMPELLER 1 47-593621
6 25-94288



QUAD RING, Pump Housing 1

7 821707T1



COVER, Water Pump 1 8217071
8 10-39001



-SCREW, (.312-18 x 4.50) 5

9 12-20084



WASHER, (.328 x .562 x .062) 10

10 94916



WEAR PLATE, Outer 1

11 94576



WEAR PLATE, Inner 1

12 818367A1



HOUSING ASSEMBLY, Sea Water Pump 1

13 26-90562
676-9-76107 700-85080
SEAL, (1.254 x .312), Oil - Pump Shaft 2

14 818366A1



SHAFT KIT 1

15 818745A1



RING KIT 1

16 30-72961



BEARING, Ball, Pump Shaft 2

17 53-23720



RING, Retaining, Ball Bearing 1

18 26-806930



SEAL, Oil - Pump Shaft 1

19 8183651



PULLEY, Blue 1 8183652
20 10-79953Q04



SCREW KIT, (.375-16 x .250) , Plug 1 10-79953A2
21 12-191833



WASHER, Fiber 1 12-19183
22 13-39107

700-21496
LOCKWASHER, (.312) 5

23 11-21908



NUT, (.312-18) 5

24 818368A1



BRACKET KIT, Sea Water Pump 1 823185A2
25 10-66024



SCREW, (.437-14 x 1.75) 3

26 10-28782



SCREW, (.312-18 x .880) 2

27 13-26993



LOCKWASHER, (.312) 2

28 10-99204



SCREW, (.437-14 x 1.00) 1

29 43-8183812



PINION STUD 1

30 865193



BUSHING 1 818380T
31 8M6500024



PULLEY 1 818382
32 11-859135
676-9-78116

NUT, (.437-20) 1 11-817618
33 57-69143Q



V BELT 1 57-69143T
34 12-27025



WASHER 1

35 818379T



BRACKET, Idler 1

36 12-45176



WASHER, (.453 x .812 x .105) 3
