525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Oil Cooler And Oil Filter

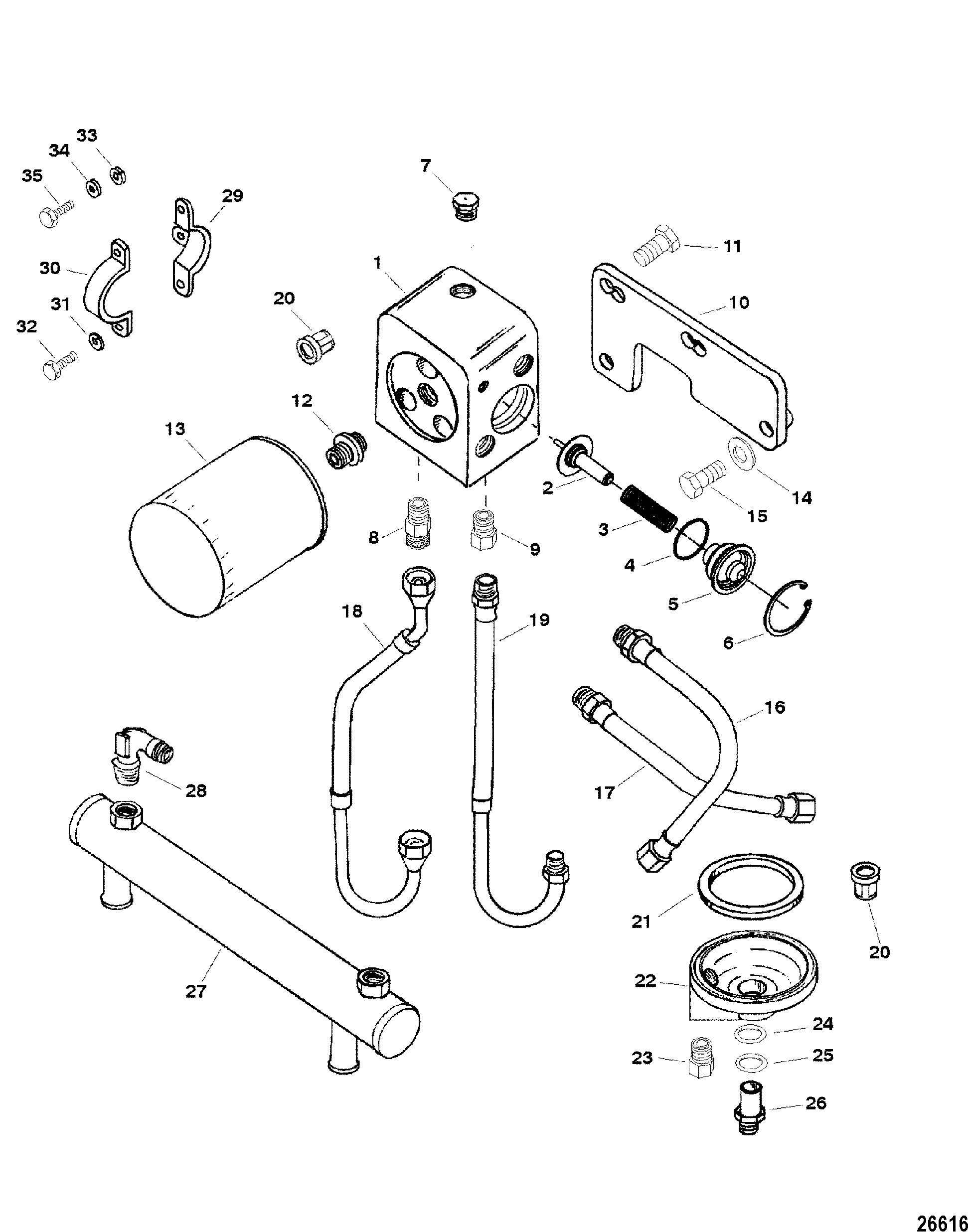

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 848555T         ADAPTOR, Oil Filter 1 848555
2 816163         THERMOSTAT 1

3 24-816162         SPRING 1

4 25-864701         O-RING, (1.112 x .103) 1 25-47632
5 816165T         COVER, Oil Thermostat 1 816165
6 53-848571         RING, Retaining, Snap 1

7 22-32804         PLUG, (.500-14) 1

8 22-806186         FITTING 1

9 22-805563         CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 1

10 8485562         BRACKET, Oil Adaptor 1

11 10-825427         SCREW, (.437-14 x 1.250) 2

12 22-805632         CONNECTOR, Oil Filter 1

13 35-16595Q         FILTER, Oil 1 35-16595
14 12-45176         WASHER, (.453 x .812 x .105) 2

15 10-825427         SCREW, (.437-14 x 1.250) 2

16 32-8485742         HOSE ASSEMBLY (14.500 Inches) 1

17 32-8485741         HOSE ASSEMBLY (13.380 Inches) 1   This Part is No Longer Available
18 32-848573         HOSE ASSEMBLY, Remote Oil To Adaptor 1

19 32-848572         HOSE ASSEMBLY, Remote Oil To Adaptor 1

20 99889         VALVE, By Pass 2

21 27-91892         GASKET 1
2
22 35-818400A1         ADAPTOR 1

23 22-805563         CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 1

24 25-90196         O-RING, (.921 x .139) 1

25 12-55822         WASHER 1

26 22-806121         FITTING 1

27 848192T         COOLER, Oil 1 848192
28 22-706811         ELBOW, 90 Degree 2

29 8161951         BRACKET, Oil Cooler 2   This Part is No Longer Available
30 56328A1         BRACKET, Oil Cooler 1

31 13-26992         LOCKWASHER, (.250) 4

32 10-49668         SCREW, (.250-20 x .750) 4

33 12-20553         WASHER, (.406 x .734 x .063) 2

34 13-35048         LOCKWASHER, (.375) 2

35 10-34353         SCREW, (.375-16 x 1.00) 2

- 27-827014A98         GASKET SET, Engine Overhaul 1 27-827014A97
