1075 SCi - Serial 0M905359 Thru 0M957024 - Engine Components (Cylinder Head)

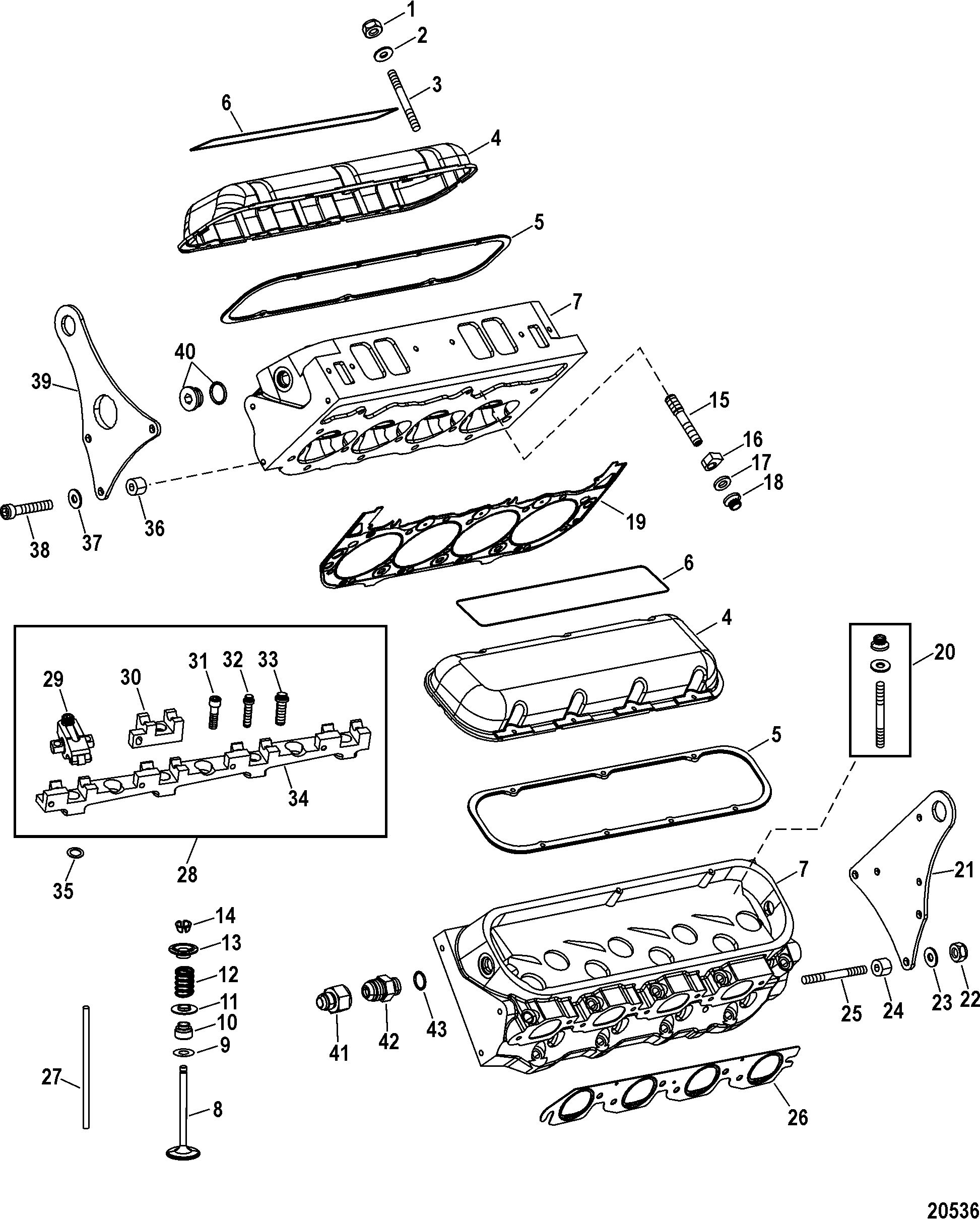

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 11-35888
676-9-72001 700-21180
NUT, (.250-28) Stainless Steel 14
5
2 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 14
5
3 16-843821



STUD, (.250-20/.250-28 x 1.500) 14
5
4 842906



VALVE COVER ASSEMBLY, Blue, Aluminum 2
SN# 0M905359 THRU 0M951398
4 841357A02



VALVE COVER ASSEMBLY, Carbon Fiber 2
SN# 0M953057 THRU 0M955666
4 8M0050959



VALVE COVER ASSEMBLY, Carbon Fiber 2 8M0021258 SN# 0M955667 THRU 0M957024
5 27-14765
676-9-61311

GASKET, Valve Cover To Cylinder Head 2

6 37-841365



DECAL, Mercury Racing 2
SN# 0M953057 THRU 0M955666
6 37-8M0021246



DECAL, Mercury Racing 2
SN# 0M955667 THRU 0M957024
7 843525A08



CYLINDER HEAD ASSEMBLY, Black 2
5
8 842396T01



VALVE, Intake 8 842396001 5
8 842395T01



VALVE, Exhaust 8 842395001 5
9 15-845669



SHIM, Valve Spring (.015) AR
5
9 15-77624



SHIM, Valve Spring (.030) AR
5
9 15-77625



SHIM, Valve Spring (.060) AR
5
10 26-69285



SEAL, Valve 8
Intake 2,5
10 840816



SEAL, Valve 8
Exhaust 2,5
11 840678



SEAT, Spring 16
5
12 24-8M0011488



SPRING 16 24-8493231 5
13 841353



RETAINER, Valve Spring 16
5
14 841848



LOCK VALVE SET 8
Intake 5
14 841808



LOCK VALVE SET 8
Exhaust 5
15 16-840043



STUD, (.375-24/.437-14 x 2.650) 4
5
16 14-840025



TAB WASHER, Special, Cylinder Head To Block 4
5
17 12-840028



WASHER, (.390 x .750 x .120) 4
5
18 11-840026



NUT, 12 Point (.375-24) 4
5
19 27-842593



GASKET, Cylinder Head 2
2,5
20 16-842363



STUD KIT, Cylinder Head 1
5
21 8M0051040



LIFTING EYE 1 842596 5
22 11-82671013



NUT, (.375-24) Stainless Steel 3
5
23 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3
5
24 23-669954



SPACER, (.410 x 1.00 x .750) Aluminum - Black 3
5
25 16-8M0034438



STUD, (.375-24/.375-16 x 2.250) 3 16-87163 5
26 27-842576



GASKET, Exhaust 2
2
27 842606



PUSH ROD, Intake (9.05) 8
5
27 842606001



PUSH ROD, Intake (9.00) AR

27 842606002



PUSH ROD, Intake (9.10) AR

27 842607



PUSH ROD, Exhaust (9.70) 8
5
27 842607001



PUSH ROD, Exhaust (9.65) AR

27 842607002



PUSH ROD, Exhaust (9.75) AR

28 842366A1



ROCKER ARM KIT 1
5
29 8M0061725



ROCKER ARM ASSEMBLY 16 840720A1 5
30 843530



STAND, Exhaust 8
5
31 10-840725



SCREW, (.312-18 x 1.125) Torx Head 32
5
32 10-840727



SCREW, (.250-20 x 1.00) 12 Point Head 8
5
33 10-840726



SCREW, (.437-14 x 1.00) 12 Point Head 16
5
34 843529



STAND, Intake 2
5
35 15-848046A1



SHIM SET 1
5
36 23-669955



SPACER, (.410 x 1.00 x .337) Aluminum - Black 3
5
37 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3
5
38 10-842787



SCREW, (.375-16 x 2.00) Stainless Steel 3
5
39 843515



LIFTING EYE 1
5
40 19-8M0000696



PLUG ASSEMBLY, Magnetic 2
5
41 22-8M0010526



FITTING, Straight - Aluminum, Hose Assembly To Supercharger 2 22-841371 Design I
41 22-8M0010526



FITTING, Straight - Stainless Steel, Hose Assembly To Supercharger 2
Design II
42 22-8M0010559



FITTING ASSEMBLY, Blue - With Filter 2 22-841370A01 Design I
42 22-8M0010559



FITTING ASSEMBLY, Black - With Filter 2
Design II
43 25-849088



O-RING, (.755 x .097) 2

- 27-842593A01



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841000A17



PARTIAL ENGINE ASSEMBLY 1
