| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

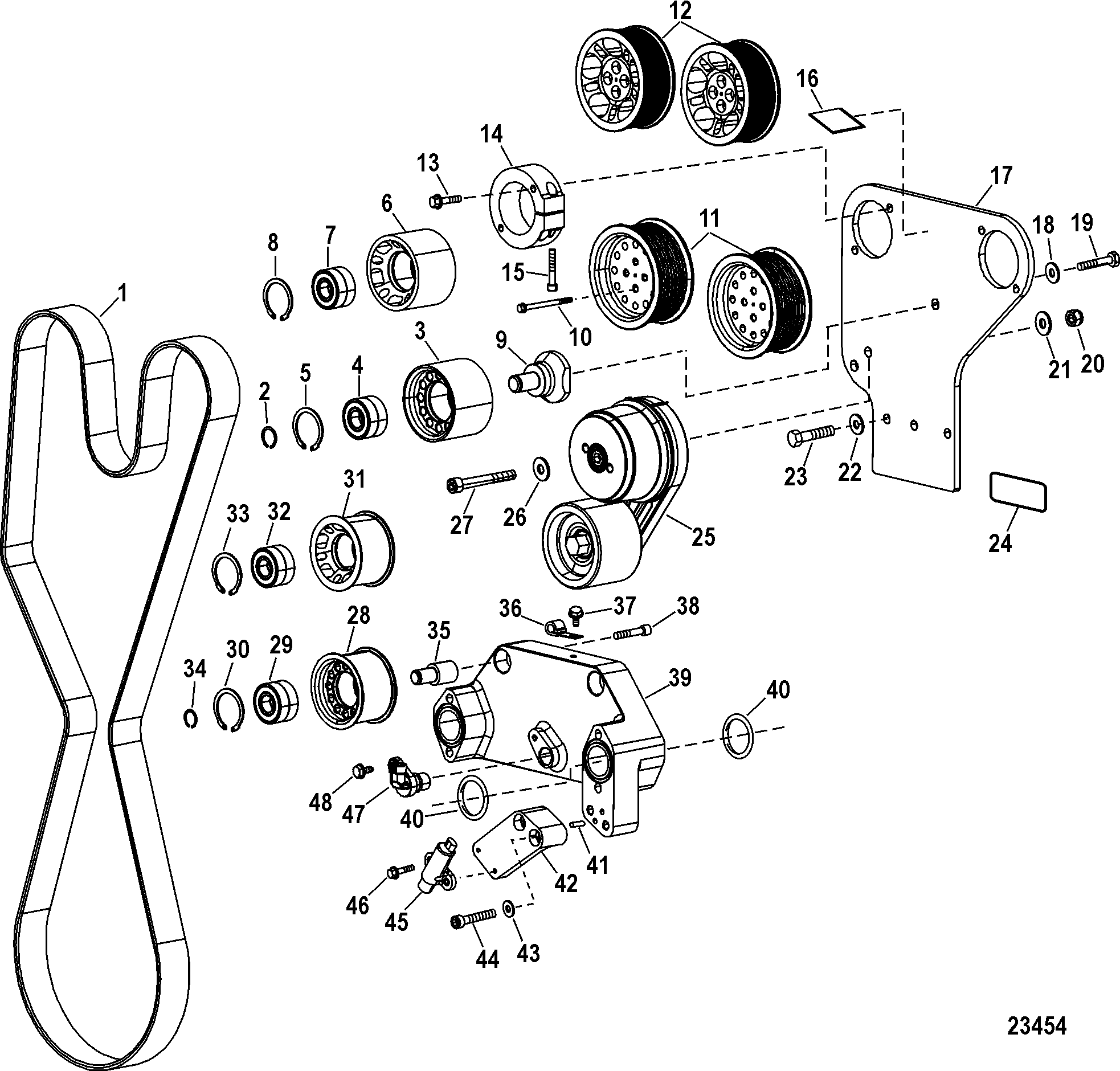

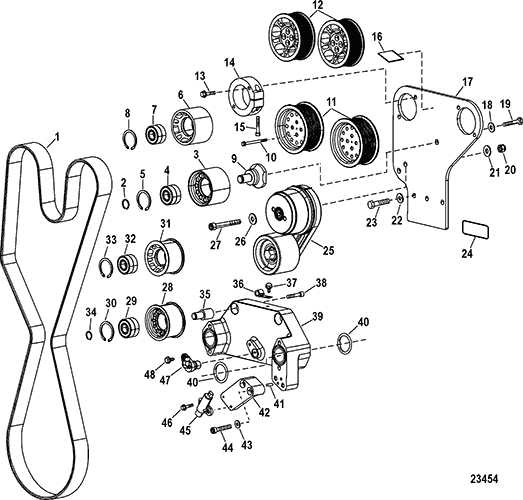

| 1 |
57-842615 |
|
|
|
|
BELT, Serpentine |
1 |
|
|
| 2 |
53-52562 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 3 |
843840T02 |
|
|
|
|
PULLEY ASSEMBLY, Idler - Blue |
1 |
843840A01 |
SN# 0M905359 THRU 0M951398 |
| 4 |
30-33451 |
|
|
|
|
BEARING, Ball |
2 |
|
|
| 5 |
53-18917 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 6 |
843840T02 |
|
|
|
|
PULLEY ASSEMBLY, Idler - Blue |
1 |
843840A02 |
SN# 0M953057 THRU 0M957024 |
| 7 |
30-33451 |
|
|
|
|
BEARING, Ball |
2 |
|
|
| 8 |
53-18917 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 9 |
17-8M0051208 |
|
|
|
|
PIN, Idler |
1 |
17-842873001 |
|
| 10 |
10-841339 |
|
|
|
|
SCREW, (M6 x 16) Stainless Steel |
8 |
|
|
| 11 |
8M0050839 |
|
|
|
|
PULLEY, Supercharger - Blue, 4.242 Diameter - Outer Edge |
2 |
842613002 |
SN# 0M905359 THRU 0M951398 |
| 12 |
8M0050122 |
|
|
|
|
PULLEY, Supercharger - Blue, 4.242 Diameter - Outer Edge |
2 |
842613004 |
SN# 0M953057 THRU 0M957024 |
| 13 |
10-F430732 |
|
|
|
|
SCREW, (.312-18 x 1.250) Stainless Steel |
4 |
|
|
| 14 |
843536002 |
|
|
|
|
CLAMP, Blower Snout |
2 |
|
|
| 15 |
10-823029 |
|
|
|
|
SCREW, (.312-18 x 1.500) Stainless Steel |
2 |
|
|
| 16 |
37-859271T05 |
|
|
|
|
EMBLEM, Smartcraft |
1 |
|
|
| 17 |
842612 |
|
|
|
|
PLATE, Blower Drive |
1 |
|
|
| 18 |
12-861854 |
|
|
|
|
WASHER, (.453 x .750 x .032) Stainless Steel |
1 |
|
|
| 19 |
10-90042 |
|
|
|
|
SCREW, (.437-14 x 1.500) Stainless Steel |
1 |
|
No longer made, limited availability |
| 20 |
11-4013610 |
|
|
|
|
NUT, (M10) Stainless Steel |
1 |
|
|
| 21 |
12-8M0027716 |
|
|
|
|
WASHER, (.390 x .600 x .032) Stainless Steel |
1 |
|
|
| 22 |
12-37828 |
|
|
|
|
WASHER, (.390 x .625 x .062) Stainless Steel |
3 |
|
|
| 23 |
10-849397 |
|
|
|
|
SCREW, (.375-16 x 3.250) Stainless Steel |
3 |
|
|
| 24 |
8M0042973 |
|
|
|
|
DECAL, Engine Specifications |
1 |
37-841369 |
SN# 0M953057 THRU 0M957024 |
| 25 |
8M0052633 |
|
|
|
|
TENSIONER ASSEMBLY, Serpentine Belt - Black |
1 |
842602A02 |
|
| 26 |
12-326481 |
|
|
|
|
WASHER, (.450 x .690 x .090) |
1 |
|
|
| 27 |
10-4009080 |
|
|
|
|
SCREW, (M10 x 80) Stainless Steel |
1 |
|
|
| 28 |
842872T02 |
|
|
|
|
PULLEY ASSEMBLY, Blue |
2 |
842872A1 |
SN# 0M905359 THRU 0M951398 |
| 29 |
30-33451 |
|
|
|
|
BEARING, Ball |
4 |
|
|
| 30 |
53-18917 |
|
|
|
|
RING, Retaining |
2 |
|
|
| 31 |
842872T02 |
|
|
|
|
PULLEY ASSEMBLY, Blue |
2 |
842872A02 |
SN# 0M953057 THRU 0M957024 |
| 32 |
30-33451 |
|
|
|
|
BEARING, Ball |
4 |
|
|
| 33 |
53-18917 |
|
|
|
|
RING, Retaining |
2 |
|
|
| 34 |
53-52562 |
|
|
|
|
RING, Retaining |
2 |
|
|
| 35 |
17-842876 |
|
|
|
|
PIN, Idler |
2 |
|
|
| 36 |
54-54457 |
|
|
|
|
J CLIP |
1 |
|
|
| 37 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 38 |
10-79436 |
|
|
|
|
SCREW, (.312-18 x 1.250) Stainless Steel |
2 |
|
|
| 39 |
8M0050995 |
|
|
|
|
HOUSING, Water Inlet - Aluminum |
1 |
843862001 |
Design I |
| 39 |
8M0050995 |
|
|
|
|
HOUSING, Water Inlet - Bronze - Black |
1 |
8M8021054 |
Design II |
| 40 |
25-843863 |
|
|
|
|
O-RING, (1.612 x .103) |
4 |
|
2 |
| 41 |
17-48450 |
|
|
|
|
PIN, Dowel |
2 |
|
|
| 42 |
843852001 |
|
|
|
|
BRACKET, Crankshaft Sensor |
1 |
|
|
| 43 |
12-8M0027716 |
|
|
|
|
WASHER, (.390 x .600 x .032) Stainless Steel |
2 |
|
|
| 44 |
10-822168 |
|
|
|
|
SCREW, (.375-16 x 1.750) Stainless Steel |
2 |
|
|
| 45 |
8283582 |
|
|
|
|
SENSOR, Crankshaft |
1 |
|
|
| 46 |
10-4010516 |
|
|
|
|
SCREW, (M5 x 16) Stainless Steel |
2 |
|
|
| 47 |
8M0011986 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
880609001 |
|
| 48 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| - |
27-842593A01 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
