1075 SCi - Serial 0M905359 Thru 0M957024 - Power-Assisted Steering Components (Design II)

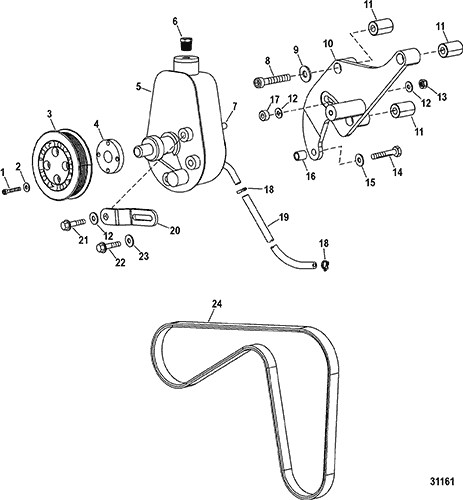

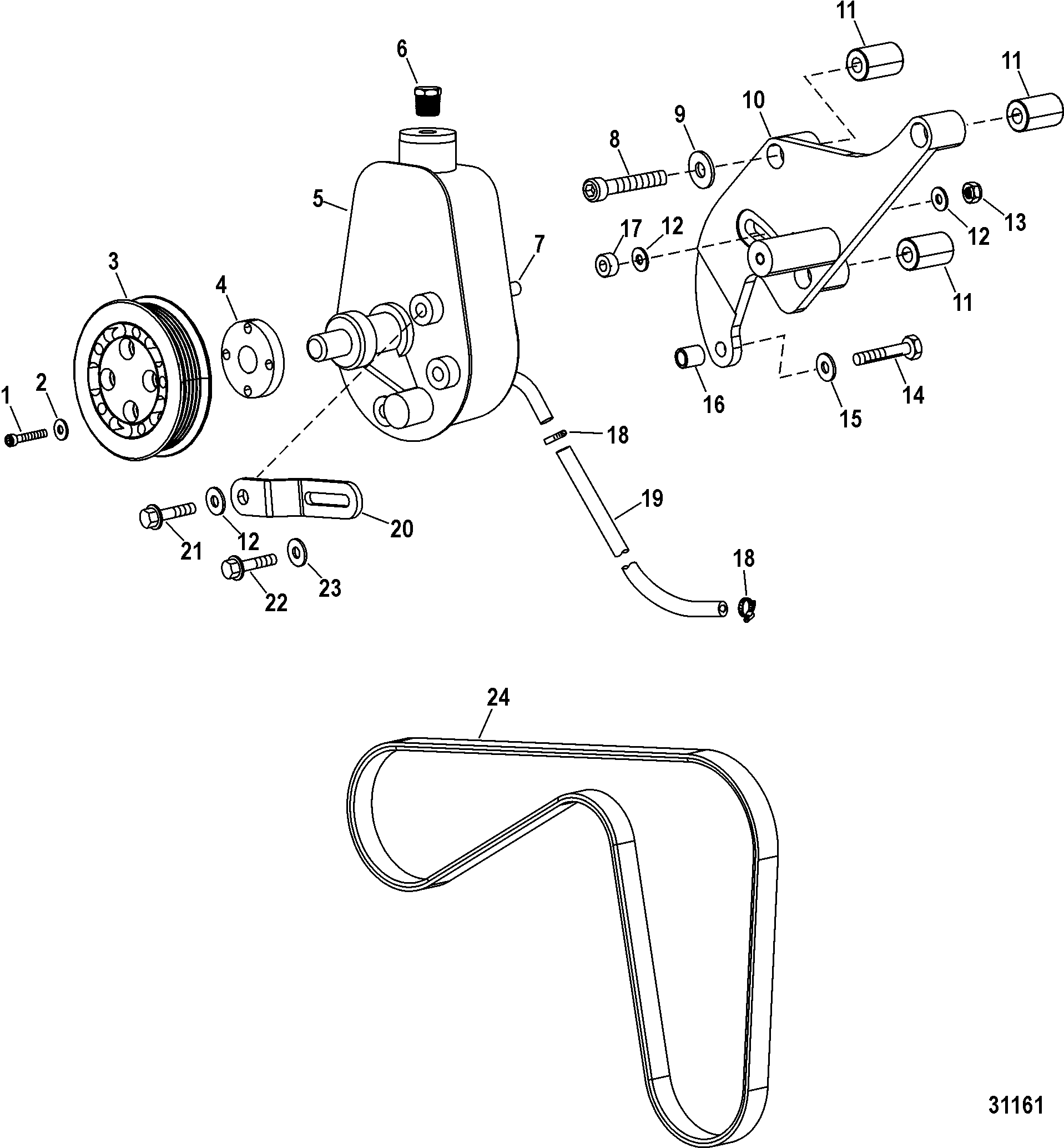

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I And II)
- Cooling Components (Sea Water Pump - Design III)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote) (Design I)
- Fuel Pump (Remote) (Design II)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine) (Design I)
- Mount Plates (Engine) (Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 2 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 3 | 842622001 | PULLEY, Power-Assisted Steering - Blue | 1 | ||||||
| 4 | 47530 | HUB | 1 | ||||||
| 5 | 8M8021105 | PUMP ASSEMBLY, Power-Assisted Steering - Black | 1 | Design II | |||||
| 6 | 22-32803 | PLUG, Pipe (.375-18) Brass | 1 | ||||||
| 7 | 16-41877 | STUD, (M10) | 2 | ||||||
| 8 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 3 | ||||||
| 9 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | ||||||
| 10 | 8M0050806 | BRACKET, Pump Mounting | 1 | 574362 | |||||
| 11 | 23-669955 | SPACER, (.410 x 1.00 x .337) Aluminum - Black | 3 | ||||||
| 12 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 4 | ||||||
| 13 | 11-4013610 | NUT, (M10) Stainless Steel | 2 | ||||||
| 14 | 10-58642 | SCREW, (.375-16 x 1.50) Stainless Steel | 1 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 16 | 23-90523 | SPACER, (.420 x .750 x .440) Cad Plate | 1 | ||||||
| 17 | 23-66751 | SPACER, (.250 x .390 x .630) Stainless Steel | 1 | ||||||
| 18 | 54-815504105 | CLAMP, Worm Gear | 2 | ||||||
| 19 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut As Required - Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 20 | 821271 | BRACE, Power Steering | 1 | ||||||
| 21 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 22 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 23 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 24 | 57-842647Q | BELT, Serpentine | 1 | 57-842647 |
