425 (Gen 5) GM 454 V8 1992-1993 - Serial 0A398941 Thru 0D937011 - Carburetor And Linkage

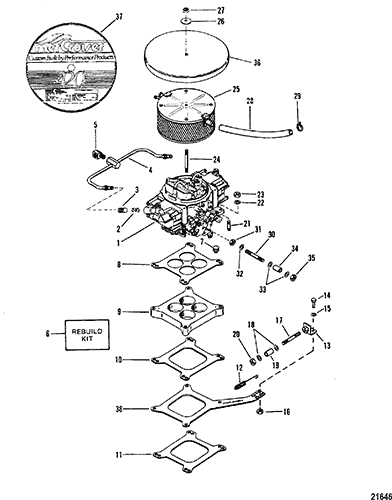

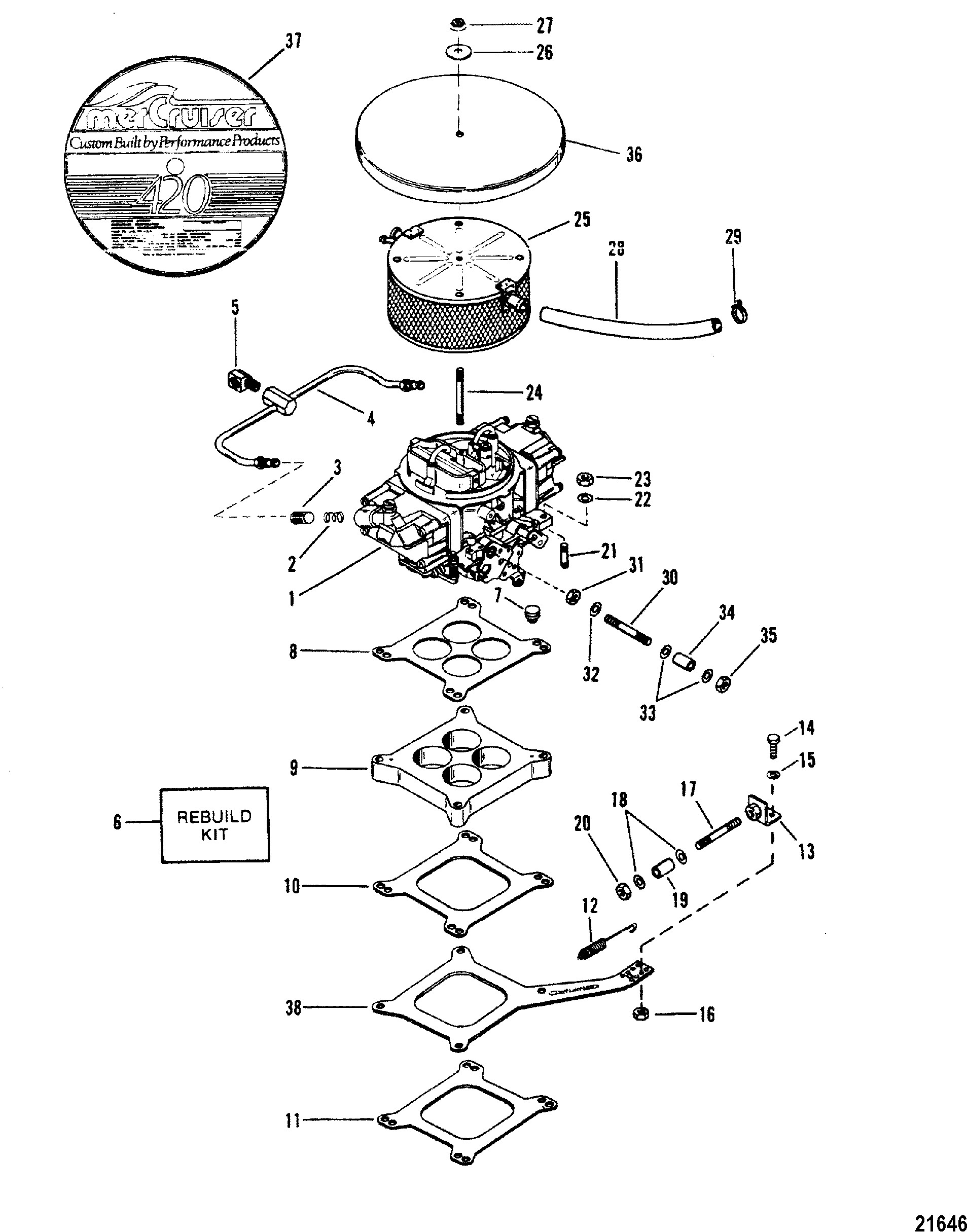

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 13549A25         CARBURETOR 1 13549A4 This Part is No Longer Available
2 24-48143         SPRING 2

3 35-93568         FILTER 2

4 32-94068A1         TUBE 1 32-94068
5 22-93385         FITTING, (90 Degree) 1

6 13220         REBUILD KIT 1

- 1399-650890         JET, Main (.104) 2

- 1399-650879         JET, Main (.091) 2   This Part is No Longer Available
- 816827         PUMP KIT, Accelerator 1   This Part is No Longer Available
- 27-42270A1         GASKET SET 1

7 22-36373         PLUG, (.375-18) Hex - Steel, Intake Manifold Vacuum Hole 1

8 27-41609   676-9-61002 700-30361   GASKET, Carburetor 1
1
9 41548         SPACER, Carburetor 1   This Part is No Longer Available
10 27-41610         GASKET, Spacer 2
SN# 0A398941 THRU 0C576119 1
10 27-41610         GASKET, Spacer 1
SN# 0C576120 THRU 0D937011 1
11 27-814210         GASKET 1
SN# 0C576120 THRU 0D937011 1
12 24-897454         SPRING, Throttle Return 1 24-32817
13 15017         BRACKET, Throttle 1

14 10-78291         SCREW, (.190-24 x .500) 2

15 13-26996         LOCKWASHER, (#10) Stainless Steel 2

16 11-79989         NUT, (#10-24) Stainless Steel 2

17 16-98851         STUD, Cable 1
No longer made, limited availability
18 12-69056         WASHER, (.255 x .625 x .0312) 2 12-21631
19 23-31866         SPACER, (.256 x .313 x .625) 1

20 11-826709109         NUT, (.250-28) 1 11-35045
21 16-26776         STUD 4   This Part is No Longer Available
22 12-848136         WASHER, (.328 x .680 x .190) 4

23 11-82670911         NUT, (.312-24) Stainless Steel 4 11-35814
24 16-30667   676-9-78143     STUD, (.250-20/.250-28 x 3.125), Flame Arrestor 1
420 Models
24 16-69501         STUD (.250-20/.250-28 x 3.250) Flame Arrestor 1
425 Models
25 95946         ARRESTOR, Flame 1   This Part is No Longer Available 420 Models
25 8160701         ARRESTOR, Flame 1 816070 This Part is No Longer Available 425 Models
26 12-86400         WASHER 1

27 11-826709109         NUT, (.250-28) 1 11-35045
28 32-8M0062669         HOSE, Cut As Required 2 32-9331512
29 69355         TIE STRAP, (5.50 Inches) 4

30 16-96112         STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

31 11-8267089         NUT, (.250-28) 1 11-20361
32 12-28426         WASHER 1

33 12-29245     700-21490   WASHER, (.281 x .500 x .060) Stainless Steel 2

34 23-818894         BUSHING 1

35 11-8267089         NUT, (.250-28) 1 11-20361
35 11-8267098         NUT, (.250-20) 1 11-56374
36 12608         COVER, 420 Models 1   This Part is No Longer Available
37 37-1372348         DECAL 1   This Part is No Longer Available 420 Models
37 37-1372360         DECAL 1   This Part is No Longer Available 425 Models
38 940701         BRACKET, Throttle 1

- 27-13218A1         GASKET SET 1
SN# 0A398941 THRU 0D725499
- 27-808730A98         GASKET SET 1 27-808730A92 This Part is No Longer Available SN# 0D725500 THRU 0D937011
