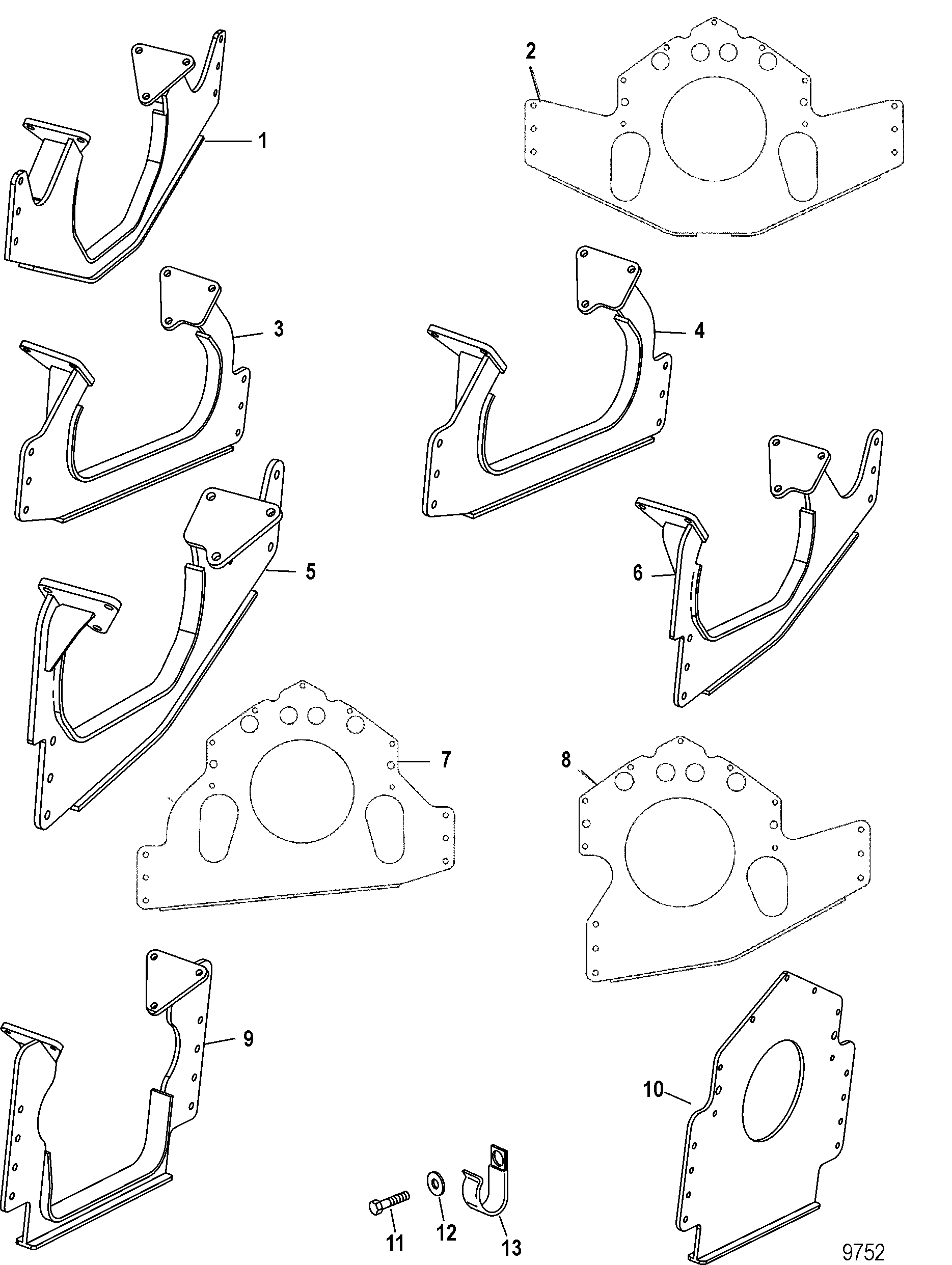

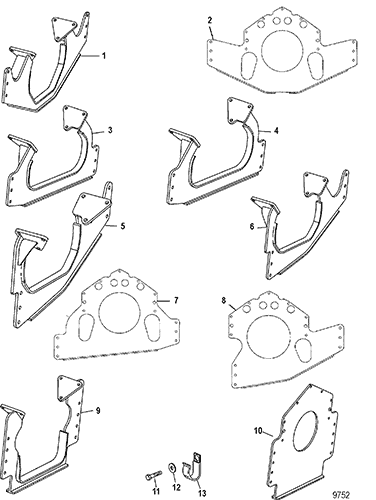

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 849143T | MOUNT, Engine, Front - Single | AR | ||||||
2 | 844843T | MOUNT, Engine, Rear - Single | AR | ||||||
3 | 849299T | MOUNT, Engine, Front Starboard - Side By Side | AR | ||||||
4 | 849339T | MOUNT, Engine, Front Port - Side By Side | AR | ||||||
5 | 849310T | MOUNT, Engine, Front Starboard - Staggered | AR | ||||||
6 | 849335T | MOUNT, Engine, Front Port - Staggered | AR | ||||||
7 | 844844T | MOUNT, Engine, Rear - Side By Side | AR | ||||||
8 | 844845T | MOUNT, Engine, Rear - Staggered | AR | ||||||
9 | 847786T | MOUNT, Engine, Front - Single With Power Steering | AR | 847786 | |||||
10 | 814937T1 | MOUNT, Engine, Rear - Single With Power Steering | AR | ||||||
11 | 10-34353 | 525-10-34353 | SCREW, (.375-16 x 1.00) | 6 | |||||
11 | 10-96861 | SCREW, (.375-16 x 1.125) | 6 | ||||||
12 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | ||||||
13 | 54-848183 | J CLIP | 2 |
