425 (Gen 5) GM 454 V8 1992-1993 - Serial 0A398941 Thru 0D937011 - Transmission And Related Parts

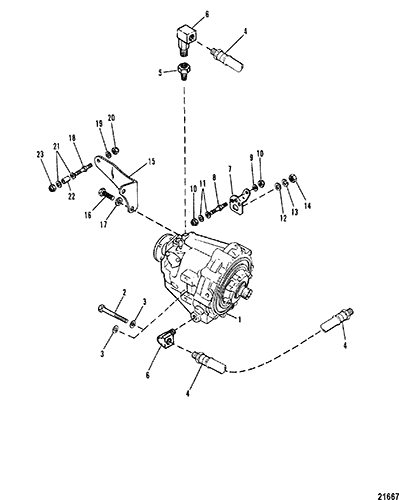

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 47810A19         TRANSMISSION, Direct Drive - Left Hand 1

2 10-60179         SCREW, (.437-14 x 3.500) 6

3 13-32993         LOCKWASHER, (.437) 6

4 32-475166         HOSE ASSEMBLY, (30.00 Inches) 2

5 22-88517         FITTING, Reducing 1

6 22-47629         ELBOW, 90 Degree 2

7 12128         LEVER, Transmission Shift 1

8 16-63335         STUD, (.250-28 x 2.00) 1   This Part is No Longer Available
9 12-39143         WASHER, (.253 x .625 x .0937) 1

10 11-8267089         NUT, (.250-28) 2 11-20361
11 12-29245     700-21490   WASHER, (.281 x .500 x .060) Stainless Steel 2

12 12-20722         WASHER, (.328 x .625 x .060) 1   This Part is No Longer Available
13 13-26993         LOCKWASHER, (.312) 1

14 11-22053         NUT, (.312-24) 1

15 41603         BRACKET 1   This Part is No Longer Available
