MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Thermostat and Housing

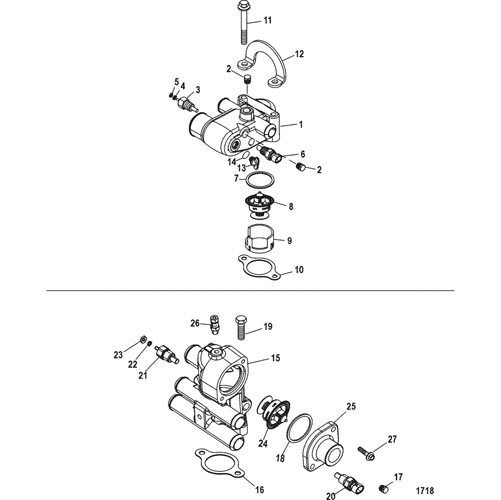

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-863457A2 | HOUSING ASSEMBLY Thermostat | (Standard Cooling) | 1 | |
| 2 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 3 | 0000 | OEM: 530-806490T, Sierra: 676-18-5897 | SENDER Water Temperature | 1 | ||
| 3 | 0000 | OEM: 525-49734 | SENDER Water Temperature (Dual Station) | OPT | ||
| 4 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 5 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 6 | 0000 | OEM: 530-805218T, Sierra: 676-18-7600 | SENSOR | 1 | ||
| 7 | 0027 | OEM: 525-27-806871 | GASKET Thermostat Housing | 1 | [1] | |
| 8 | 0000 | OEM: 525-807252T2, Sierra: 676-18-3649, GLM: 700-13100 | THERMOSTAT 71DegreeC (160 Degree F) | 1 | [2] | |
| 9 | 0023 | OEM: 530-806922 | SLEEVE Thermostat | 1 | ||
| 10 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET Lower Thermostat Housing | 1 | [3] | |
| 11 | 0010 | OEM: 525-10-4010775 | SCREW (M8 x 75) | 2 | ||
| 12 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 | ||
| 13 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 1 | [4] | |
| 14 | 0025 | 32509 | O-RING (.489 x .070) | 1 | ||
| 15 | 0000 | OEM: 525-864398T1 | HOUSING ASSEMBLY Thermostat | (Closed Cooling) | 1 | |
| 16 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET Thermostat Housing | 2 | [3] | |
| 17 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 18 | 0025 | OEM: 525-25-8071341, Sierra: 676-18-1508 | SEAL Thermostat | 1 | [1] | |
| 19 | 0010 | OEM: 525-10-40011151 | SCREW (M8 x 35) Stainless Steel | 2 | ||
| 20 | 0000 | OEM: 530-805218T, Sierra: 676-18-7600 | SENSOR | 1 | ||
| 21 | 0000 | OEM: 530-806490T, Sierra: 676-18-5897 | SENDER Temperature | 1 | ||
| 21 | 0000 | OEM: 525-49734 | SENDER Water Temperature (Dual Station) | OPT | ||
| 22 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 23 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 24 | 0000 | OEM: 530-864493, Sierra: 676-18-43015 | THERMOSTAT 77°C (170°F) | 1 | ||
| 25 | 0000 | OEM: 525-807075A1 | COVER Thermostat Housing | 1 | ||
| 26 | 0022 | OEM: 525-22-818390 | DRAIN COCK | 1 | ||
| 27 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 2 | ||
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 807756A01
[2] - Alternate part numbers:
807252Q 5QS Kit
807252T 2Service Part
807252T 5MPP Kit
[3] - Alternate part numbers:
53045 1Service Part
53045Q01QS
Component of Engine Overhaul Gasket Set 807756A01
[4] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
