MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Transmission and Engine Mounting(BORG-WARNER 5000)

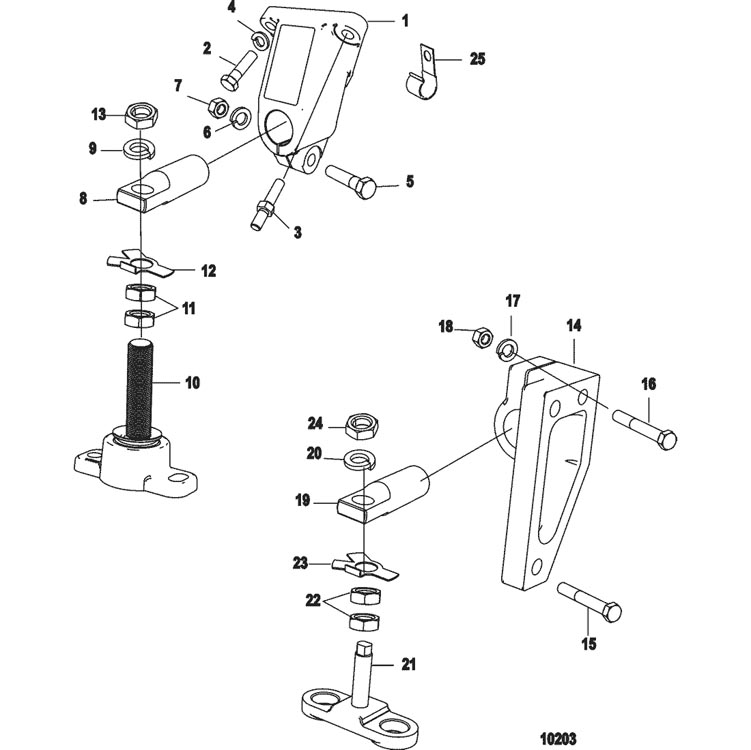

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 71128A2 | BRACKET, Front | 2 | ||||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) | 4 | ||||||
| 3 | 16-8M2004610 | STUD, (.375-16 x 2.130) | 4 | 805357 | |||||
| 4 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 4 | |||||
| 5 | 10-37269 | SCREW, (.437-14 x 2.00) | 2 | ||||||
| 6 | 13-32993 | LOCKWASHER, (.437) | 2 | 13-37272 | |||||
| 7 | 11-29553 | NUT, (.437-14) | 2 | ||||||
| 8 | 66166A4 | TRUNNION | 2 | ||||||
| 9 | 13-68102 | LOCKWASHER, (.750) | 2 | ||||||
| 10 | 66284A2 | BASE ASSEMBLY, Engine End | 2 | ||||||
| 11 | 11-20739 | NUT, (.750-16), Jam | 2 | ||||||
| 12 | 14-66658 | TAB WASHER, Tab | 2 | ||||||
| 14 | 807725T | BRACKET | 1 | ||||||
| 14 | 807724T | BRACKET | 1 | ||||||
| 15 | 10-4009760 | SCREW, (M12 x 60) | 4 | ||||||
| 16 | 10-47724 | SCREW, (.437-14 x 3.00) | 2 | ||||||
| 21 | 816326A2 | BASE ASSEMBLY, Transmission End | 2 | ||||||
| 22 | 11-816331 | NUT, (.750-16), Jam | 2 | ||||||
| 25 | 54-78945 | J CLAMP, Harness Support | 1 |
