MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Throttle Body(Digital Throttle and Shift)

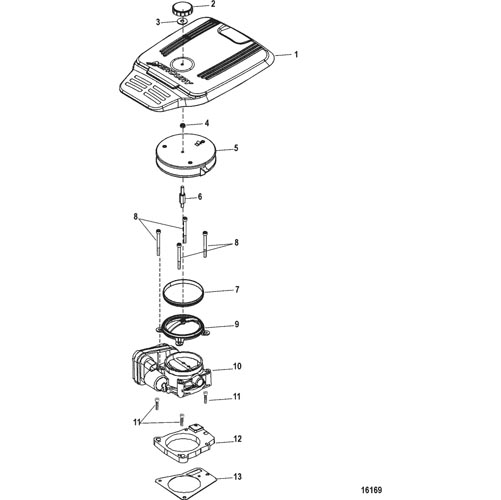

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879288T66 | COVER, Black | 1 | 863681T | |||||
| 2 | 11-863701 | KNOB | 1 | ||||||
| 3 | 12-86400 | WASHER | 1 | ||||||
| 4 | 11-8267138 | NUT, (.25-20) | 1 | ||||||
| 5 | 866206T | FLAME ARRESTOR | 1 | ||||||
| 6 | 16-866204 | STUD | 1 | ||||||
| 7 | 26-866232 | SEAL, Flame Arrestor | 1 | ||||||
| 8 | 10-4008855 | SCREW, (M6 x 55) | 4 | ||||||
| 9 | 8M0046370 | MOUNT , Flame Arrestor | 1 | 866205 | |||||
| 10 | 866592A04 | THROTTLE BODY ASSEMBLY | 1 | 877828T1 | |||||
| 11 | 10-4008825 | SCREW, (M6 x 25) | 3 | ||||||
| 12 | 862538001 | ADAPTOR, Throttle Body | 1 | ||||||
| 13 | 27-863215 | GASKET | 1 |
