6.2L MPI HORIZON MIE - Serial 1A090000 Thru 1A092168 - Cool Fuel System -Bravo(SN 1A091623 and Above)

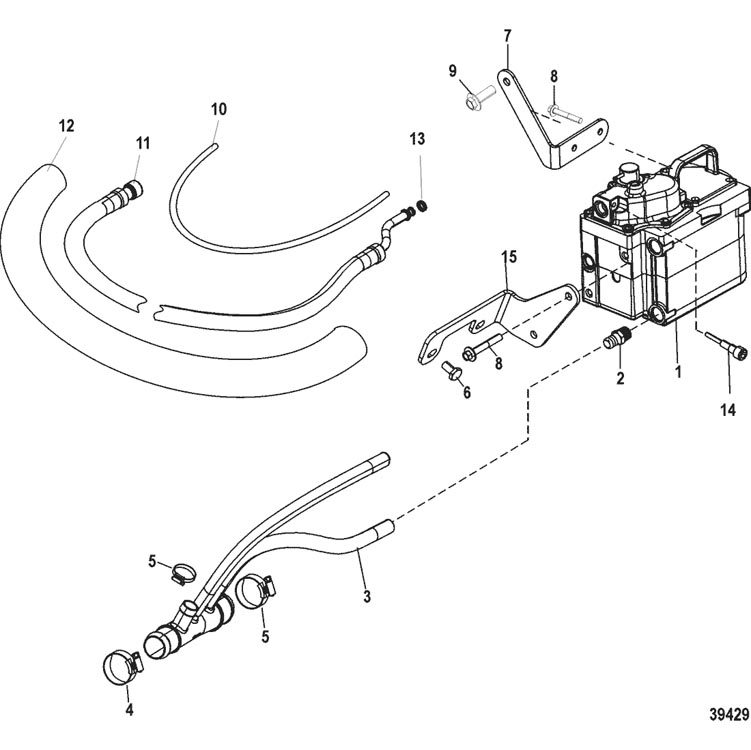

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (SN 1A091517 and Below)
- Electrical Components, Digital (SN 1A091518 to 1A091825)
- Electrical Components, Digital (SN 1A091826 and Up)
- Electrical Components, Mechanical (SN 1A091517 and Below)
- Electrical Components, Mechanical (SN 1A091518 to 1A091825)
- Electrical Components, Mechanical (SN 1A091826 and Up)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0047215 | MODULE KIT, Fuel Pump, Complete | 1 | 864650A13 | |||||
| 2 | 22-8M2010476 | FITTING, (3/8-18) | 2 | ||||||
| 3 | 22-865317T02 | HOSE ASSEMBLY, 2 Bib Orifice Meter | 1 | ||||||
| 3 | 22-865208T02 | HOSE ASSEMBLY, 3 Bib Orifice Meter | 1 | ||||||
| 4 | 54-815504224 | CLAMP, (32 - 50 mm) | 1 | 54-8M2001489 | |||||
| 5 | 54-815504206 | CLAMP, Worm Gear | 2 | ||||||
| 6 | 10-40001195 | SCREW, (M10 x 30) | 2 | ||||||
| 7 | 864459 | BRACKET | 1 | ||||||
| 8 | 10-4010720 | SCREW, (M8 x 20) | 4 | ||||||
| 9 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 10 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) | 1 | 32-80617382 | |||||
| 11 | 32-8M2005177 | LINE, Cooler to Rail | 1 | 350/377 | |||||
| 12 | NSS | NOT SOLD SEPARATE, Insulator Sleeve | 1 | This Part is not sold separately | |||||
| 13 | 26-863151 | SEAL, Quad Ring | 1 | ||||||
| 14 | 10-866114 | SCREW, (.250-28) Special | 1 | ||||||
| 15 | 864468T | BRACKET | 1 |
