6.2L MPI HORIZON MIE - Serial 1A090000 Thru 1A092168 - Gasket Set Components (27-861246A05), Engine Overhaul

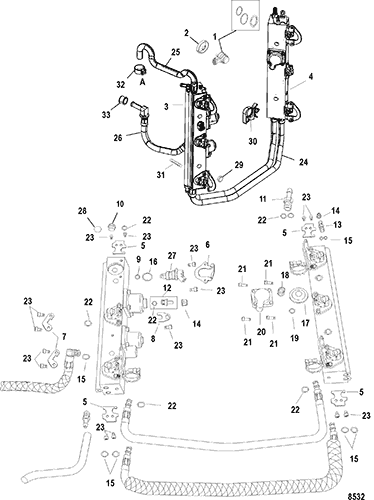

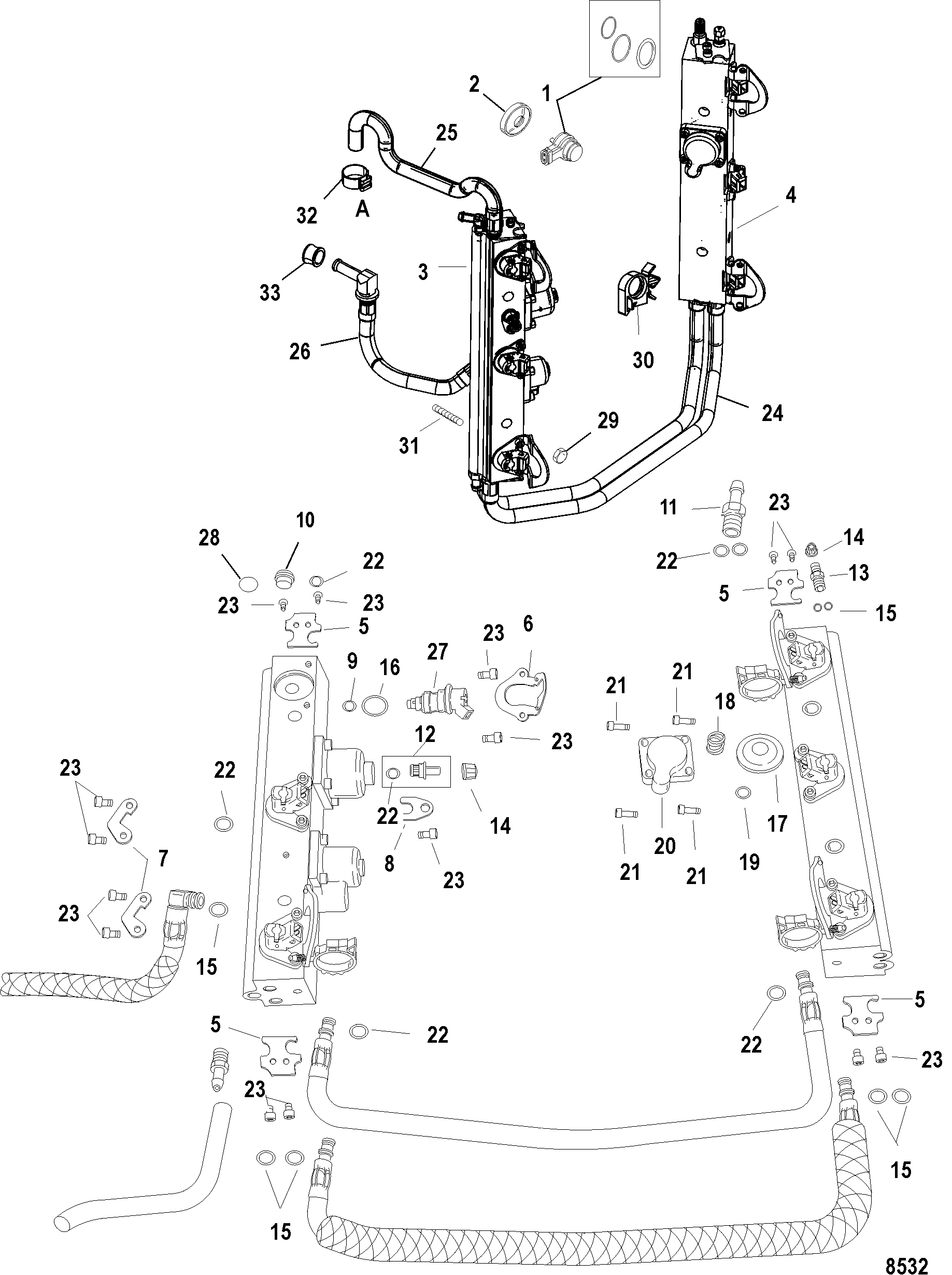

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (SN 1A091517 and Below)
- Electrical Components, Digital (SN 1A091518 to 1A091825)
- Electrical Components, Digital (SN 1A091826 and Up)
- Electrical Components, Mechanical (SN 1A091517 and Below)
- Electrical Components, Mechanical (SN 1A091518 to 1A091825)
- Electrical Components, Mechanical (SN 1A091826 and Up)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | ||||||
| - | 27-138651 | 676-9-61504 | GASKET, Oil Pan | 1 | |||||
| - | 27-75611001 | GASKET, Cylinder Head | 2 | No Longer Available | |||||
| - | 27-33395 | GASKET, Exhaust Manifold | 2 | ||||||
| - | 27-17467 | GASKET, Rocker Cover | 2 | ||||||
| - | 27-866027 | GASKET | 1 | ||||||
| - | 27-8079821 | GASKET | 1 | ||||||
| - | 27-861246 | GASKET | 1 | ||||||
| - | 27-91892 | GASKET, Oil Filter | 1 | ||||||
| - | 27-34897 | GASKET, Water Pump | 2 | ||||||
| - | 27-881715 | 676-9-61511 | GASKET, Crankshaft Oil Seal Housing | 1 | |||||
| - | 27-530451 | GASKET, Lower Thermostat Housing | 1 | ||||||
| - | 27-806871 | GASKET, Thermostat Housing | 1 | ||||||
| - | 27-344863 | GASKET, Distributor | 1 | ||||||
| - | 27-34898 | GASKET | 1 | ||||||
| - | 27-8M0077608 | GASKET, Drain | 2 | No Longer Available | |||||
| - | 26-42077 | SEAL, Oil Filter | 2 | ||||||
| - | 26-8M0050563 | SEAL, Intake valve | 8 | 976641 | |||||
| - | 26-804507 | SEAL, Exhaust Valve | 8 | ||||||
| - | 25-8071341 | SEAL, Thermostat | 1 | ||||||
| - | 25-32509 | O-RING, (.489 x .070) | 5 | ||||||
| - | 25-805063 | O-RING, (.301 x .070) | 6 | ||||||
| - | 25-805062 | O-RING, (.530 x .082) | 1 | ||||||
| - | 26-806655 | SEAL | 1 | ||||||
| - | 26-806706 | SEAL | 1 | ||||||
| - | 26-852941 | SEAL, Crankshaft Oil | 1 | ||||||
| - | 27-807473A1 | GASKET SET, Intake Manifold | 1 |
