| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

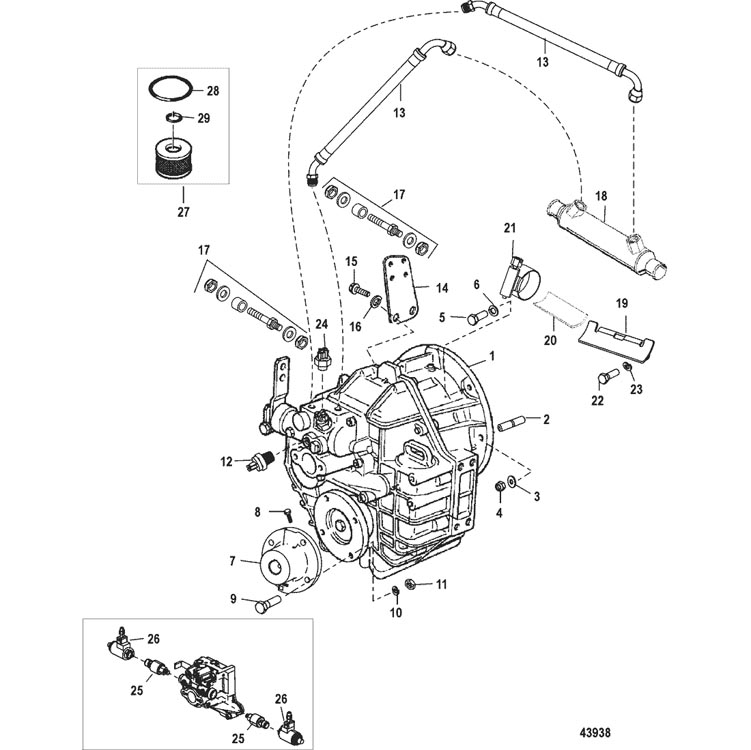

| 1 |
863744T2 |
|
|
|
|
TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
863744T3 |
|
|
|
|
TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
863744T4 |
|
|
|
|
TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
863744T5 |
|
|
|
|
TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
806730A1 |
|
|
|
|
TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle |
1 |
|
No Longer Available |
| 1 |
8M0070754 |
|
|
|
|
TRANSMISSION, (1.2:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
865703T02 |
|
|
|
|
TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
865703T03 |
|
|
|
|
TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
865703T04 |
|
|
|
|
TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
865703T05 |
|
|
|
|
TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle |
1 |
|
|
| 1 |
865705T01 |
|
|
|
|
TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle |
1 |
|
|
| 1 |
863745T2 |
|
|
|
|
TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive |
1 |
|
|
| 1 |
863745T3 |
|
|
|
|
TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive |
1 |
|
|
| 1 |
863745T4 |
|
|
|
|
TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive |
1 |
|
|
| 1 |
865704T02 |
|
|
|
|
TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive |
1 |
|
|
| 1 |
865704T03 |
|
|
|
|
TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive |
1 |
|
|
| 1 |
865704T04 |
|
|
|
|
TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive |
1 |
|
|
| 2 |
16-805259 |
|
|
|
|
STUD |
4 |
|
|
| 2 |
16-8M0034453 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.190) |
4 |
57933 |
|
| 3 |
12-22248 |
|
|
|
|
WASHER, (.453 x .875 x .060) |
4 |
|
|
| 3 |
12-79552 |
|
|
|
|
WASHER, (.453 x .750 x .062) Stainless Steel |
4 |
|
|
| 4 |
11-34933 |
|
|
|
|
NUT, (.437-20) Stainless Steel |
4 |
|
|
| 4 |
11-859116 |
|
|
|
|
NUT, (.437-20) |
4 |
|
|
| 5 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
| 6 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
13-37272 |
|
| 7 |
79476A1 |
|
|
|
|
FLANGE ASSEMBLY, (5.00 x 1.00) |
OPT |
|
|
| 7 |
79476A3 |
|
|
|
|
FLANGE ASSEMBLY, (5.00 x 1.25) |
OPT |
|
|
| 7 |
79476A4 |
|
|
|
|
FLANGE ASSEMBLY, (5.00 x 1.375) |
OPT |
|
|
| 7 |
79476A5 |
|
|
|
|
FLANGE ASSEMBLY, (5.00 x 1.50) |
OPT |
|
|
| 7 |
79476A6 |
|
|
|
|
FLANGE ASSEMBLY, (5.00 x 1.75) |
OPT |
|
|
| 8 |
10-60171 |
|
|
|
|
SCREW, (.375-16 x 1.250) |
2 |
10-60170 |
|
| 8 |
10-60169 |
|
|
|
|
SCREW, (.375-16 x .750) |
2 |
|
|
| 9 |
10-805159 |
|
|
|
|
SCREW, (.437-20 x 1.500) |
4 |
10-52498 |
|
| 11 |
11-22024 |
|
|
|
|
NUT, (.437-14) |
4 |
|
|
| 12 |
87-88031 |
|
|
|
|
SWITCH ASSEMBLY |
1 |
87-813708 |
|
| 13 |
32-8054781 |
|
|
|
|
HOSE, (19.50) |
2 |
32-8126992 |
|
| 14 |
806238 |
|
|
|
|
BRACKET |
1 |
|
|
| 15 |
10-40001124 |
|
|
|
|
SCREW, (M8 x 14) |
2 |
|
|
| 16 |
13-400247 |
|
|
|
|
LOCKWASHER, (M8) |
2 |
|
|
| 17 |
16-97477A3 |
|
|
|
|
STUD KIT |
2 |
16-97477, 16-97477A1 |
|
| 18 |
863832T01 |
|
|
|
|
COOLER, Transmission Oil |
1 |
|
|
| 19 |
805546A2 |
|
|
|
|
BRACKET, Oil Cooler |
1 |
|
|
| 20 |
772233 |
|
|
|
|
PAD |
1 |
|
|
| 21 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
1 |
8M2001490 |
|
| 22 |
10-34353 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
1 |
|
|
| 23 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER, (.375) |
1 |
|
|
| 24 |
87-813300 |
|
|
|
|
SWITCH, Neutral Safety |
1 |
|
|
| 25 |
865664 |
|
|
|
|
PRESSURE TRANSDUCER, 500 PSI |
2 |
|
|
| 26 |
35-879194241 |
|
|
|
|
FLUID FILTER KIT |
1 |
815419 |
|
| 27 |
25-813407 |
|
|
|
|
O-RING |
1 |
|
|
| 28 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, O-RING |
1 |
|
|
