7.4LX MPI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F802000 Thru 0K999999 - Cylinder Head And Rocker Cover

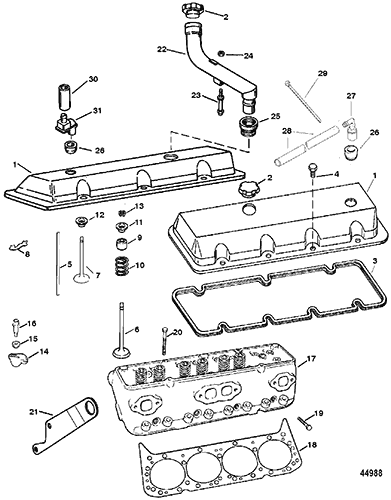

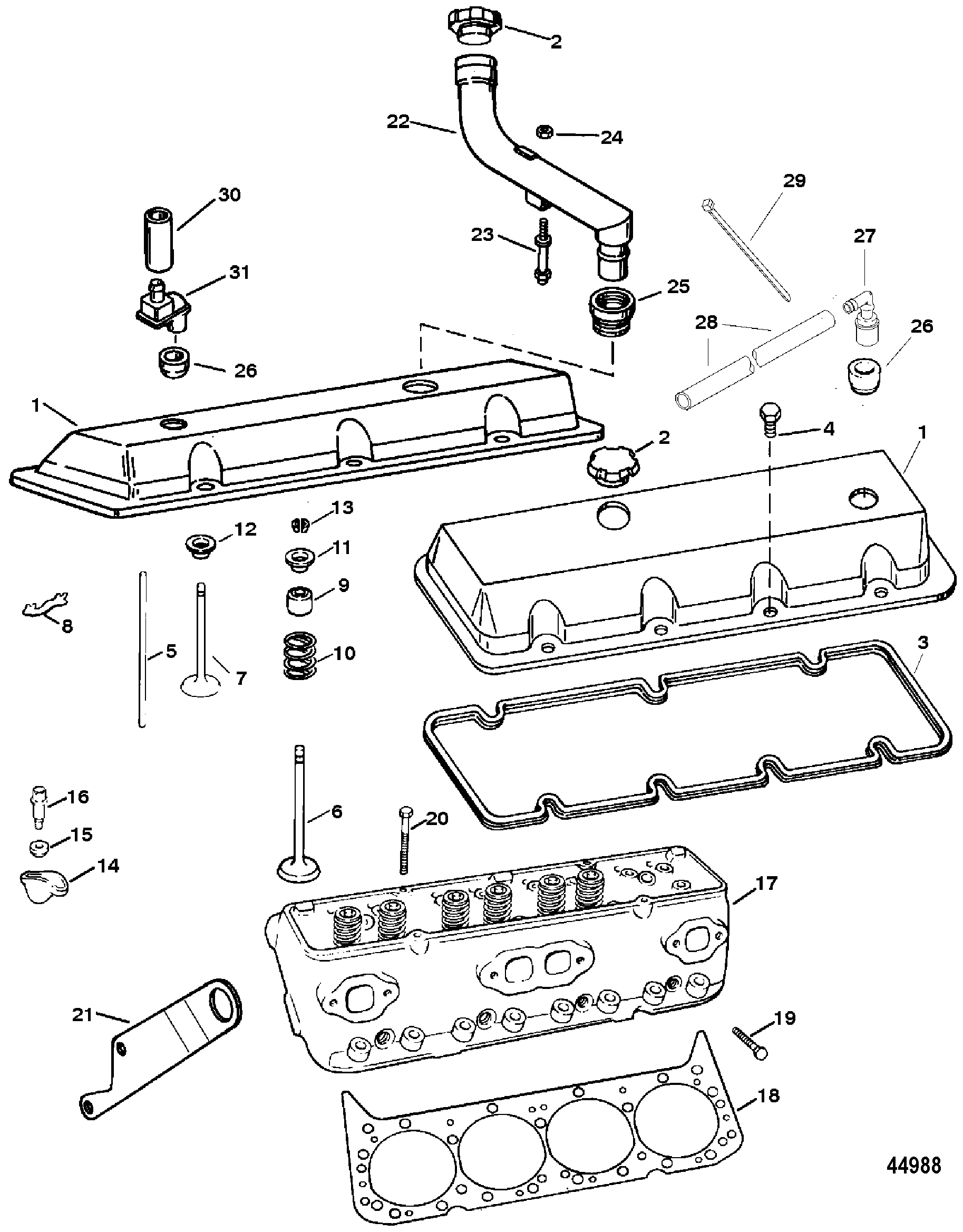

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850462



COVER, Rocker 2
2 36-811569



CAP, Oil Tank 2

3 27-811588



GASKET, Rocker Cover 2   22
4 10-811589



BOLT, (1/4-20 x 0.875) 14

5 850468



PUSH ROD 8    This Part is no longer available. (INTAKE)
5 850469



PUSH ROD 8    This Part is no longer available. (EXHAUST)
6 814506



VALVE, Exhaust 8    (STANDARD)
6 814507001



VALVE, Exhaust AR 814507  (.015 O.S.) 27
7 49134



VALVE, Intake 8    (STANDARD)
8 811585



GUIDE, Push Rod 8    This Part is no longer available
9 26-811545



SEAL, Valve 16   22
10 24-850465T



SPRING, Valve 16 24-850465
11 850463



ROTATOR 8    (EXHAUST)
12 850464



CAP 8    (INTAKE)
13 28-54530



KEY, Rocker 32
14 850471



ARM, Rocker 16
15 850472



BALL, Rocker Arm 16
16 10-811593



BOLT, Rocker Arm 16
17 938-883492R1



CYLINDER HEAD 2 938-827656
18 879150141



GASKET, Cylinder Head 2 27-850470 22
19 10-8M0000463



BOLT, (2.00 Inch) 8 10-49106
20 10-8M0000482



BOLT, (4.125 Inch) 24 10-49105
21 807081T



BRACKET, Lifting Eye (Front) 1
22 36-807131T



TUBE, Oil Fill 1    This Part is no longer available
23 16-805706



STUD 1
24 11-826709109



NUT, (.250-28) 1 11-35045
25 26-805622



GROMMET 1
26 25-811553



GROMMET 2
27 21-806603



VALVE, PVC 1
28 32-8M0062321



HOSE, (33.00 Inches Bulk) 1 32-80617463 23
29 54-816311T

700-21465
TIE STRAP, (8.00 Inches) 2 54-816311
30 32-8M0062669



TUBING, (24.00 Inches Bulk), Vent 1 32-807498240 (USE WITH METAL FLAME ARRESTOR)
30 32-1589424



HOSE, Breather Vent 1 32-1589418 (USE WITH PLASTIC FLAME ARRESTOR)
31 807925A2



BAFFLE, Breather 1    This Part is no longer available
- 27-805396A95



GASKET SET, Overhaul 1
