7.4LX MPI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F802000 Thru 0K999999 - Water Pump And Front Cover

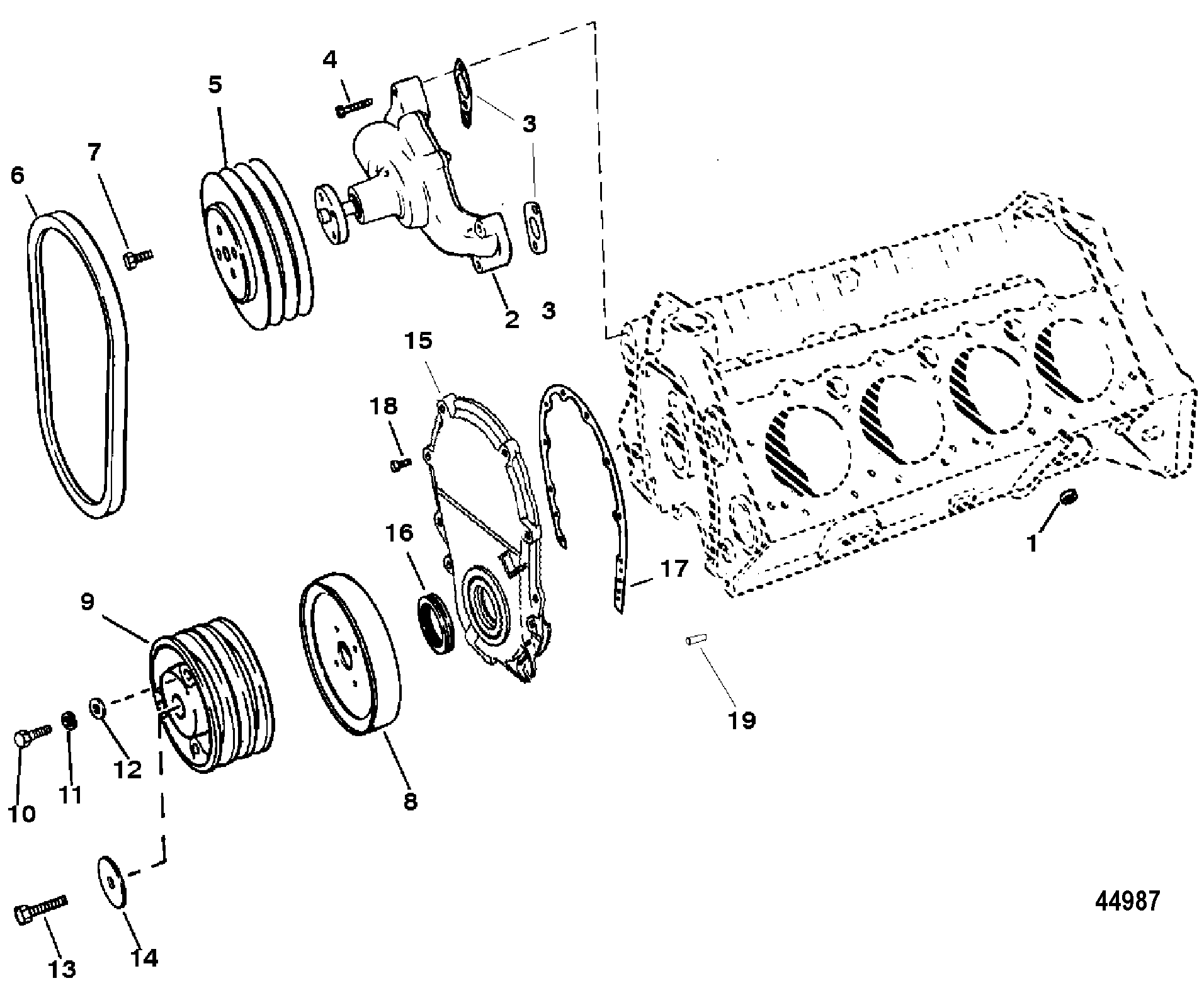

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter (Fuel Cooled System) 0K147350 and Up
- Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up
- Fuel Pump and Fuel Filter (Vst Fuel System) 0K147349 and Below
- Intake Manifold And Intake Plenum
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump (Fuel Cooled System) 0K147350 and Up
- Sea Water Pump (VST Fuel System) 0K147349 and Below
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Swiss Emissions Parts (BSO1 And SAV1)
- Thermostat Housing(Fuel Cooled System) 0K147350 and Up
- Thermostat Housing(Vst Fuel System) 0K147349 and Below
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | VALVE, Relief, Oil By-Pass | 1 | (30 PSI) | ||||||
| 2 | 8504541 | PUMP ASSEMBLY, Water | 1 | 850454 | |||||
| 3 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 22 | |||||
| 4 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | |||||
| 5 | 19692T01 | PULLEY, (7 In. Diameter) | 1 | 19692T | |||||
| 6 | 57-48122Q | BELT, (48 Inches) | 1 | 57-48122 | |||||
| 7 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
| 8 | 850461001 | BALANCER, Harmonic | 1 | 850461 | |||||
| 9 | 90081T | PULLEY | 1 | ||||||
| 10 | 10-75334 | SCREW, (.375-24 x 3.00) | 3 | This Part is no longer available | |||||
| 11 | 13-35048 | LOCKWASHER, (.375) | 3 | ||||||
| 12 | WASHER | 3 | |||||||
| 13 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | ||||||
| 14 | 12-49103 | WASHER | 1 | ||||||
| 15 | 845610T | COVER ASSEMBLY, Timing Chain | 1 | 850459 | |||||
| 16 | 26-8219471 | SEAL, Oil | 1 | 22 | |||||
| 17 | 27-850456 | GASKET, Front Cover Mount | 1 | 22 | |||||
| 18 | 10-850455 | SCREW, (1/4-20 x 0.5) | 6 | ||||||
| 19 | 17-843378 | PIN, Dowel (1/4 In. Diameter) | 1 | 17-35312 | |||||
| - | 27-805396A95 | GASKET SET, Overhaul | 1 |
