| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

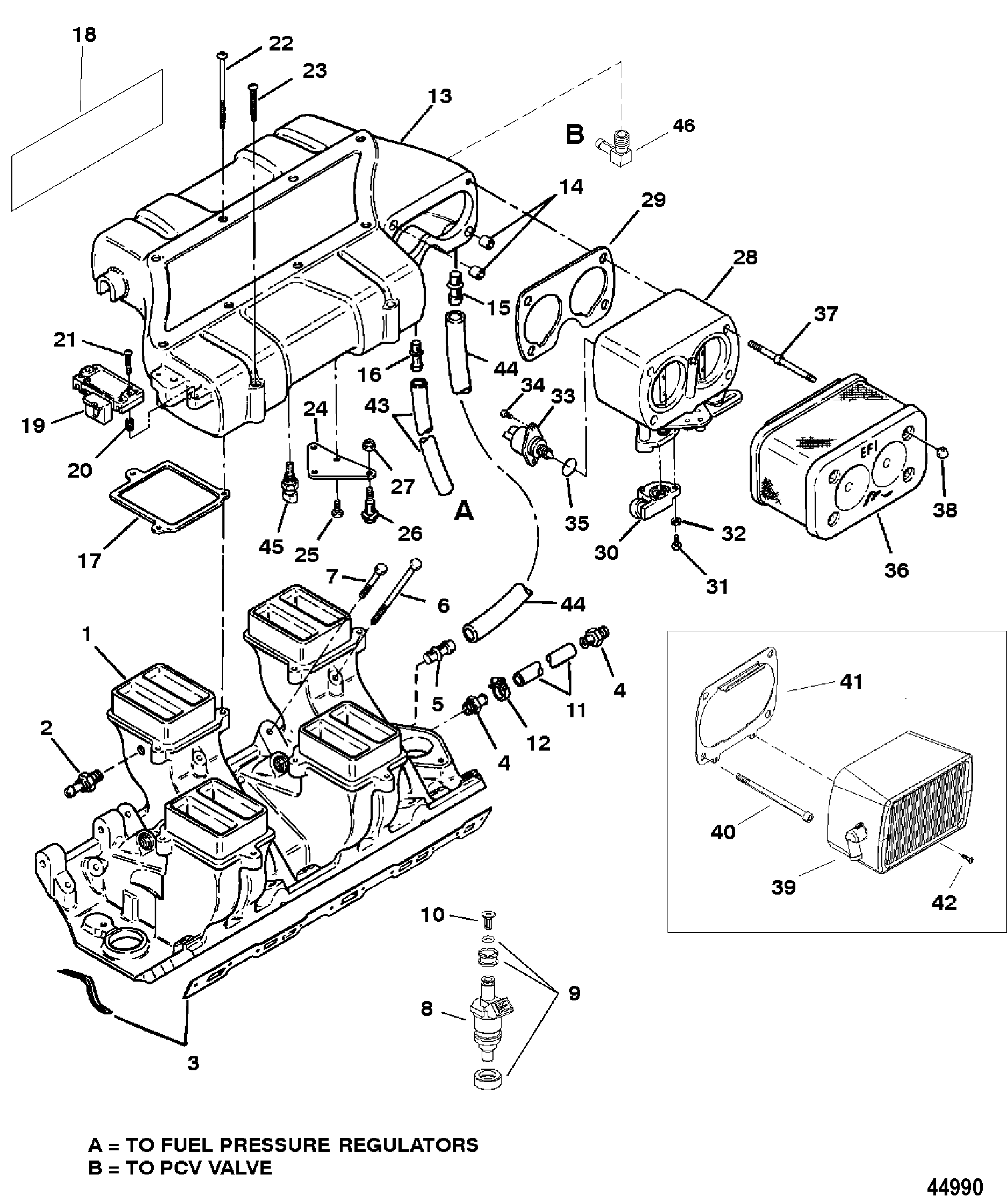

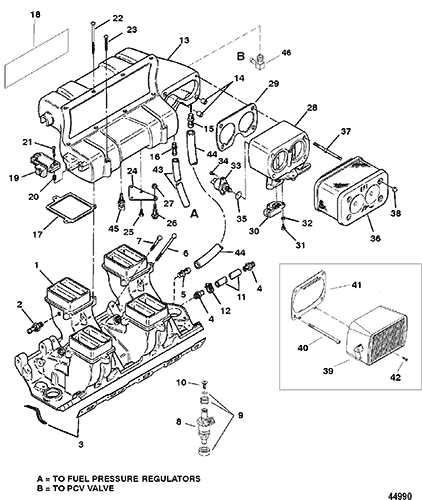

| 1 |
805233A6 |
|
|
|
|
MANIFOLD ASSEMBLY, Intake |
1 |
805233A2 |
|
| 2 |
22-805691 |
|
|
|
|
FITTING, (.250) Barb |
1 |
|
|
| 3 |
27-805403A1 |
|
|
|
|
GASKET SET |
1 |
|
22 |
| 4 |
22-806242 |
|
|
|
|
CONNECTOR |
2 |
|
|
| 5 |
22-805519 |
|
|
|
|
FITTING, Barb (.250 Inch) |
1 |
|
|
| 6 |
10-807640 |
|
|
|
|
SCREW, (.375-16 x 5.5) |
4 |
|
This Part is no longer available |
| 7 |
10-807641 |
|
|
|
|
SCREW, (.375-16 x 1.75) |
12 |
|
|
| 8 |
805225A1 |
|
|
|
|
INJECTOR ASSEMBLY, Fuel |
8 |
|
|
| 9 |
25-805511A1 |
|
|
|
|
SEALING KIT, Fuel Injector |
8 |
|
22 |
| 10 |
35-17422 |
|
|
|
|
FILTER |
8 |
|
|
| 11 |
32-8059871 |
|
|
|
|
HOSE, Water Pump To Intake Manifold, Bypass |
1 |
|
|
| 12 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear, Hose |
2 |
|
|
| 13 |
805240A1 |
|
|
|
|
PLENUM ASSEMBLY, Intake |
1 |
|
This Part is no longer available |
| 14 |
23-52698 |
|
|
|
|
SLEEVE |
2 |
|
|
| 15 |
22-805519 |
|
|
|
|
FITTING, Barb (.250 Inch) |
1 |
|
|
| 16 |
22-805598 |
|
|
|
|
FITTING, (.1875) Barb |
1 |
|
|
| 17 |
27-805522A1 |
|
|
|
|
GASKET SET |
1 |
|
22 |
| 18 |
37-82381615 |
|
|
|
|
DECAL |
1 |
|
This Part is no longer available |
| 19 |
864856A1 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
805217A1 |
|
| 20 |
26-805412 |
|
|
|
|
SEAL |
1 |
|
22 |
| 21 |
10-807120 |
|
|
|
|
SCREW, (#10-24 x 1.00) |
2 |
|
|
| 22 |
10-805391 |
|
|
|
|
SCREW, (.312-18 x 4.500) |
8 |
|
|
| 23 |
10-805390 |
|
|
|
|
SCREW, (.312-18 x 2.250) |
4 |
|
|
| 24 |
805413T |
|
|
|
|
BRACKET, Throttle Cable |
1 |
|
This Part is no longer available |
| 25 |
10-73286 |
|
|
|
|
SCREW, (.250-20 x .500) Stainless Steel |
3 |
|
|
| 26 |
10-96430 |
|
|
|
|
SHOULDER SCREW |
1 |
|
|
| 27 |
11-814101 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
1 |
|
|
| 28 |
805243A12 |
|
|
|
|
THROTTLE BODY ASSEMBLY |
1 |
|
This Part is no longer available. (VST FUEL SYSTEM) SN# 0K147349 & Below |
| 28 |
860204A5 |
|
|
|
|
THROTTLE BODY ASSEMBLY |
1 |
|
(FUEL COOLED SYSTEM) SN# 0K147350 & Up |
| 29 |
27-805396 |
|
|
|
|
GASKET, Throttle Body |
1 |
|
22 |
| 30 |
805226A1 |
|
|
|
|
SENSOR ASSEMBLY, TPS |
1 |
|
|
| 31 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 32 |
12-28001 |
|
|
|
|
WASHER, (.188 x .438 x .049) |
2 |
|
This Part is no longer available |
| 33 |
805224A1 |
|
|
|
|
MOTOR ASSEMBLY, IAC |
1 |
|
|
| 34 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 35 |
25-808547 |
|
|
|
|
O-RING |
1 |
|
|
| 36 |
807656A2 |
|
|
|
|
FLAME ARRESTOR |
1 |
805401A2 |
METAL FLAME ARRESTOR |
| 37 |
16-805399 |
|
|
|
|
STUD |
4 |
|
METAL FLAME ARRESTOR |
| 38 |
11-805402 |
|
|
|
|
NUT, Acorn |
4 |
|
METAL FLAME ARRESTOR |
| 39 |
807656A2 |
|
|
|
|
FLAME ARRESTOR |
1 |
|
PLASTIC FLAME ARRESTOR |
| 40 |
10-808040 |
|
|
|
|
SCREW, (5/16-18 x 4.0) |
4 |
|
PLASTIC FLAME ARRESTOR |
| 41 |
807654T |
|
|
|
|
BRACKET, Flame Arrestor |
1 |
|
PLASTIC FLAME ARRESTOR |
| 42 |
10-808039 |
|
|
|
|
SCREW, (#6-32) |
2 |
|
PLASTIC FLAME ARRESTOR |
| 43 |
32-8M0063567 |
|
|
|
|
HOSE, Pressure Regulator to Intake Manifold Fitting |
1 |
32-80617333 |
|
| 44 |
32-7381567 |
|
|
|
|
TUBING, (42.00 Inches Bulk) |
1 |
|
|
| 45 |
805223T |
|
|
|
|
SENSOR, MAT |
1 |
|
|
| 46 |
22-687271 |
|
|
|
|
FITTING, (.250-18) 90 Degree - Brass |
1 |
22-68727 |
|
| - |
27-805396A95 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
|
