200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Adaptor Plate Hose Routings

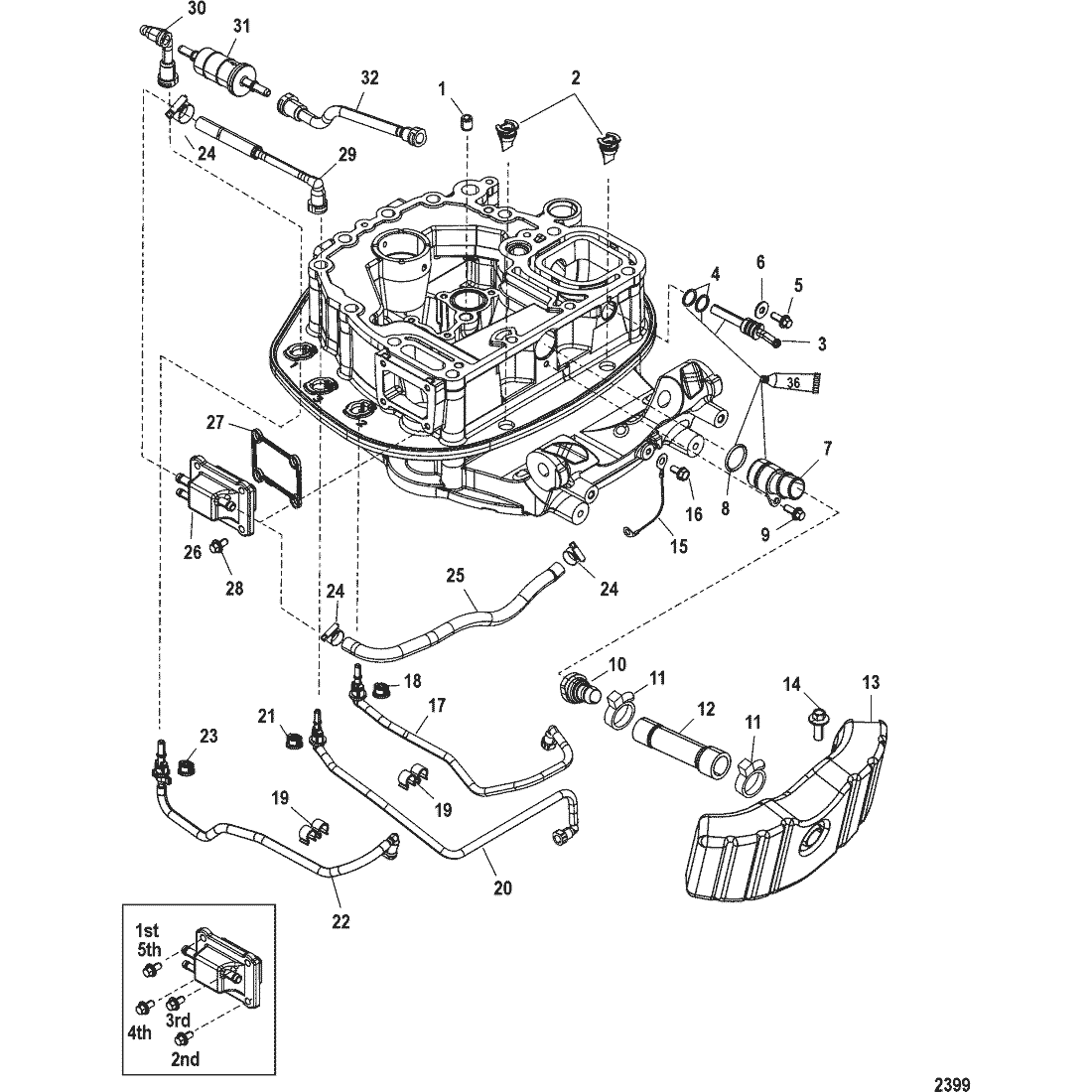

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17-884474001         PIN, Dowel (12 mm) 1
2 888819002         DRAIN, Cowl 2
3 22-888461A01         FITTING KIT 1
4 25-892446         O-RING, (14 X 1.78 MM) 2
5 10-88552512         SCREW, (M6 x 12 MM) Stainless Steel 1
6 12-4002316         WASHER 1
7 22-889792A01         FITTING KIT, Idle Exhaust 1
8 25-889828         O-RING, (.924 x .103) 1
9 10-88552512         SCREW, (M6 x 12 MM) Stainless Steel 1
10 22-889846         FITTING 1
11 54-816311T         TIE STRAP, (8.00 Inches) 2
12 32-888981001         HOSE, Idle Exhaust 1
13 892384T         PLENUM, Exhaust 1
14 10-4006731         SCREW, (M6 x 16) 2
15 88238A21         CABLE ASSEMBLY 1
16 10-40011126         SCREW, (M6 x 13) Stainless Steel 1
17 32-8M0087120         HOSE, Manifold Reference-Lower 1 8M0012199
18 25-884546         GROMMET 1
19 888523001         CLIP 2
20 32-8M0087106         HOSE, Water In-Lower 1 8M0012198
21 25-884546         GROMMET 1
22 32-8M0087116         HOSE, Fuel Supply Module-Out 1 8M0043794
23 25-884546         GROMMET 1
24 54-815504104         CLAMP, Worm Gear 3
25 32-8M0108349         TUBING, (.312) (70 Inches Bulk) 1 8M0047448
26 892562T01         HOUSING, Manifold 1
27 892117         SEAL 1
28 10-88552516         SCREW, (M6 x 16 MM) Stainless Steel 4
29 32-887756         HOSE, Water In-Upper 1
30 32-8M0087104         HOSE, Hi-Pressure Filter 1 8M0043789
31 35-879885Q         FILTER, Fuel In-Line 1
32 32-8M0087122         HOSE, Hi-Pressure Filter To Fuel Rail 1 8M0043790
- 27-880552A07         GASKET SET, Powerhead 1
- 61-895247A07         POWERHEAD ASSEMBLY 1
