200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Pump Kit-Power Steering(4 thru 24 Feet)

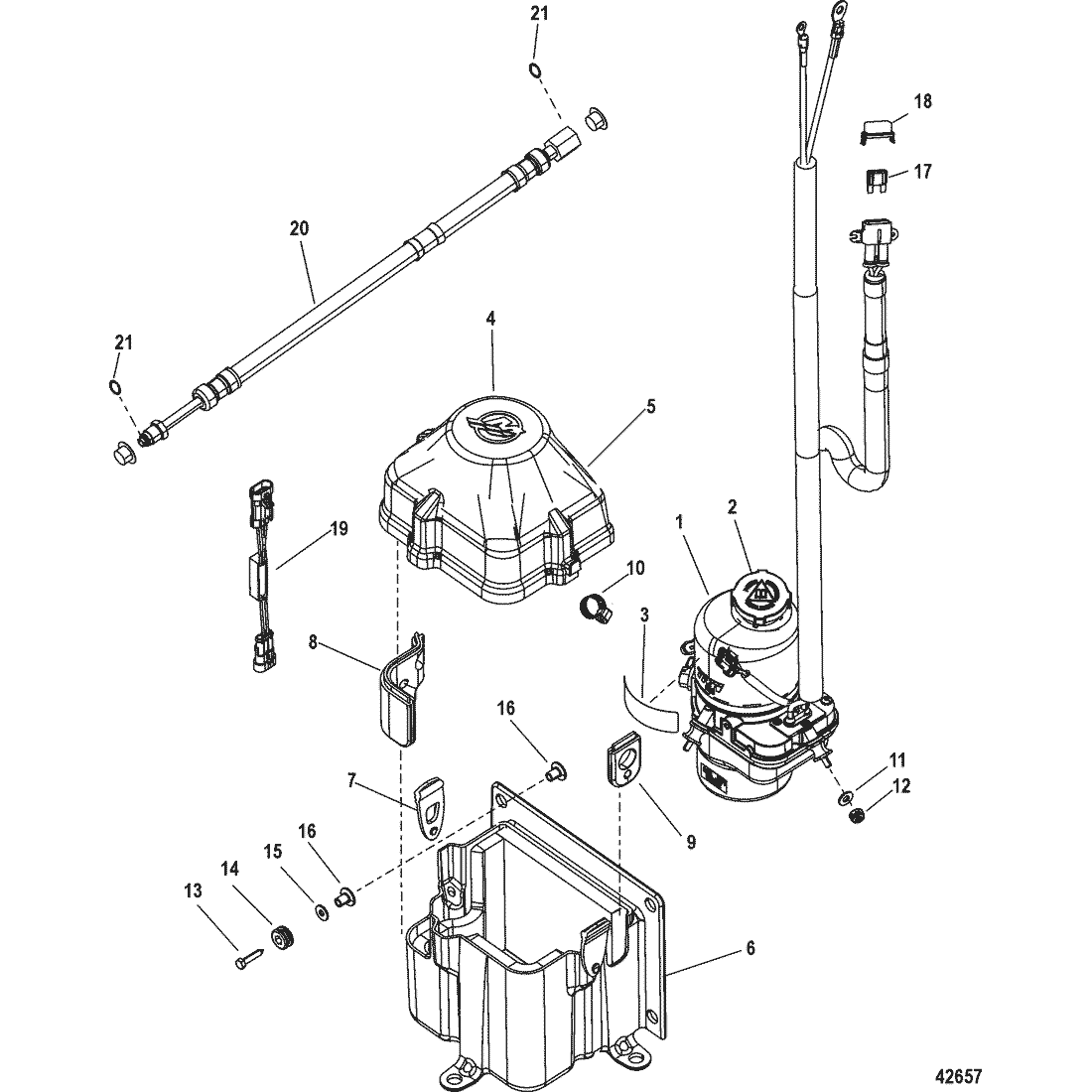

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0080199 | PUMP KIT, Power Steering (4 Feet) | 1 | 892440A17 | |||||
| - | 8M0080200 | PUMP KIT, Power Steering (12 Feet) | 1 | 892440A18 | |||||
| - | 8M0080201 | PUMP KIT, Power Steering (24 Feet) | 1 | 892440A19 | |||||
| 1 | NSS | PUMP | 1 | Not Sold Separate | |||||
| 2 | 892485003 | CAP, Pump | 1 | ||||||
| 3 | NSS | DECAL, Fluid Type | 1 | Not Sold Separate | |||||
| 4 | 893364A05 | ENCLOSURE ASSEMBLY, Complete-Power Steering Pump | 1 | ||||||
| - | 893365A03 | COVER ASSEMBLY, Top/Bottom, Power Steering Pump | 1 | ||||||
| 5 | 893365T02 | ENCLOSURE ASSEMBLY, Top, Power Steering Pump | 1 | ||||||
| 6 | 8M0080707 | ENCLOSURE ASSEMBLY, Bottom-Power Steering Pump | 1 | 893364T02 | |||||
| 7 | 889531 | STRAP | 2 | ||||||
| 8 | 25-893368001 | GROMMET | 1 | ||||||
| 9 | 25-893369 | GROMMET | 1 | ||||||
| 10 | 54-815504206 | CLAMP, Worm Gear | 1 | ||||||
| 11 | 12-4002316 | WASHER | 3 | ||||||
| 12 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 13 | 10-895378 | SCREW, (M6) | 4 | ||||||
| 14 | 25-895319 | GROMMET | 4 | ||||||
| 15 | 12-4002316 | WASHER | 4 | ||||||
| 16 | 23-895320F1 | BUSHING | 4 | ||||||
| 17 | 88-79023A94 | FUSE ASSEMBLY, 50 Ampere | 1 | ||||||
| 18 | 879346T24 | FUSE COVER AND O-RING | 1 | ||||||
| 19 | 8M0026568 | HARNESS ASSEMBLY, Signal Driver | 1 | ||||||
| 20 | 32-897643A01 | HOSE KIT, Dampening | 1 | ||||||
| 21 | 25-89879 | O-RING, (.301 x .064) | 2 |
