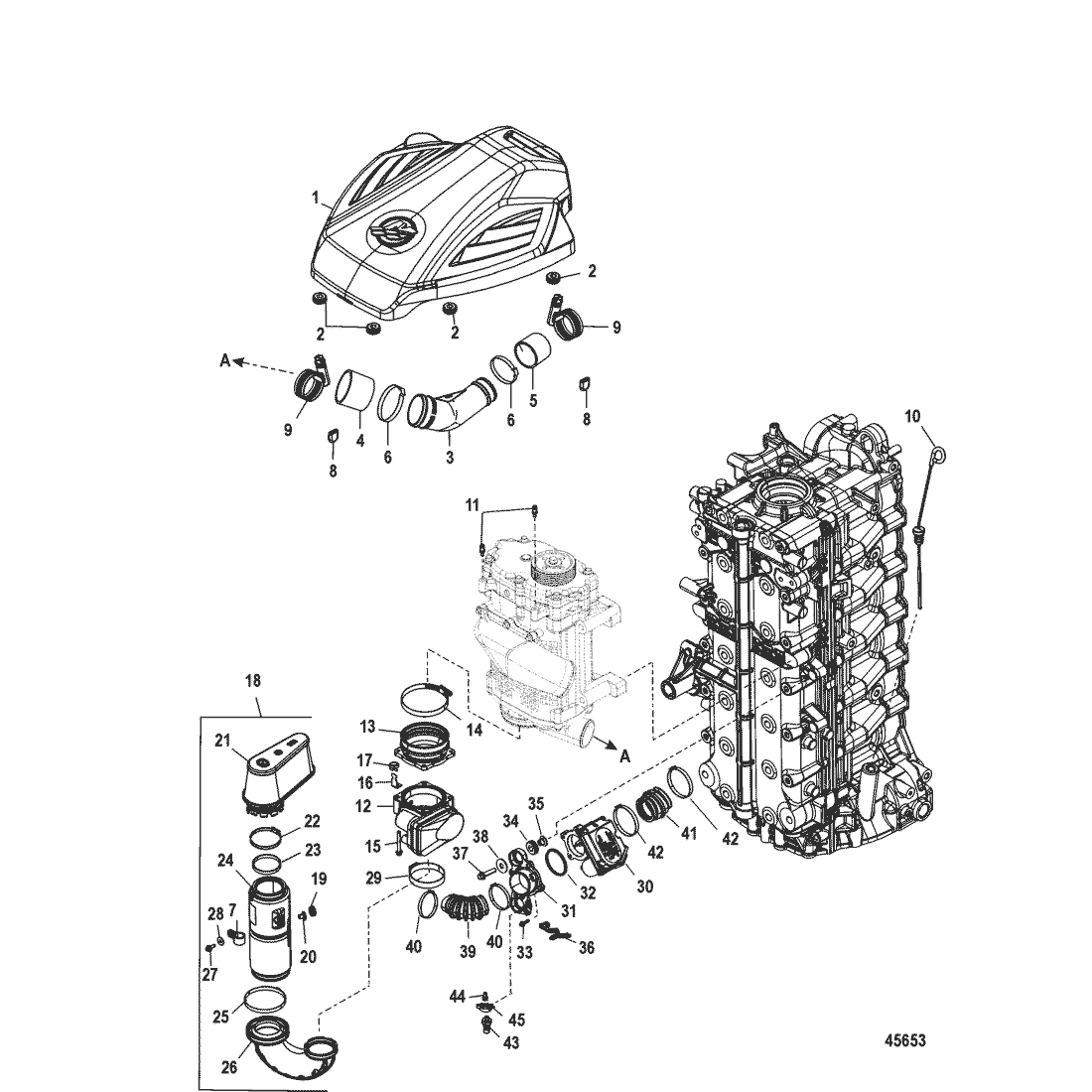

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
887936T04 |
|
|
|
|
COVER, Flywheel |
1 |
|
|
| 2 |
25-834985 |
|
|
|
|
GROMMET |
4 |
|
|
| 3 |
8M0035481 |
|
|
|
|
TUBE ASSEMBLY, Hot Air Duct |
1 |
|
|
| 4 |
32-896259 |
|
|
|
|
HOSE |
1 |
|
|
| 5 |
32-896271 |
|
|
|
|
HOSE |
1 |
|
|
| 6 |
54-893342 |
|
|
|
|
CLAMP |
2 |
|
|
| 7 |
54-8589781 |
|
|
|
|
CLIP, Fuel Hose |
1 |
|
|
| 8 |
19-8M0074364 |
|
|
|
|
COVER, Hose Clamp End |
2 |
8079923 |
|
| 9 |
54-893342 |
|
|
|
|
CLAMP |
2 |
|
|
| 10 |
898022 |
|
|
|
|
DIPSTICK, Oil |
1 |
|
|
| 11 |
17-888517 |
|
|
|
|
PIN |
2 |
|
|
| 12 |
888991T04 |
|
|
|
|
CONTROL ASSEMBLY, Throttle - Electronic |
1 |
|
|
| 13 |
8M0113513 |
|
|
|
|
ISOLATOR |
1 |
87928815T |
|
| 14 |
54-815504256 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 15 |
10-88552550 |
|
|
|
|
SCREW, (M6 x 50 MM) Stainless Steel |
4 |
|
|
| 16 |
884353 |
|
|
|
|
BRACKET |
2 |
|
|
| 17 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
2 |
|
|
| 18 |
892383T06 |
|
|
|
|
INTAKE ASSEMBLY, Air |
1 |
|
|
| 19 |
25-8349851 |
|
|
|
|
GROMMET |
1 |
|
|
| 20 |
23-856954 |
|
|
|
|
BUSHING |
1 |
|
|
| 21 |
35-893318T02 |
|
|
|
|
FILTER, Air |
1 |
|
|
| 22 |
54-895842 |
|
|
|
|
CLAMP |
1 |
|
|
| 23 |
27-893317 |
|
|
|
|
GASKET |
1 |
|
|
| 24 |
8M0007183 |
|
|
|
|
RESONATOR |
1 |
|
|
| 25 |
54-888988027 |
|
|
|
|
CLAMP |
1 |
|
|
| 26 |
893314002 |
|
|
|
|
DUCT, Inlet |
1 |
|
|
| 27 |
10-88552525 |
|
|
|
|
SCREW, (M6 x 25 MM) Stainless Steel |
1 |
|
|
| 28 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
1 |
|
|
| 29 |
54-888988016 |
|
|
|
|
CLAMP, (96.5 mm) |
1 |
|
|
| 30 |
884408A08 |
|
|
|
|
VALVE KIT, Control - Electric Boost |
1 |
|
|
| 31 |
887939007 |
|
|
|
|
PLATE, Boost Valve Mounting |
1 |
|
|
| 32 |
25-892079 |
|
|
|
|
O-RING |
1 |
|
|
| 33 |
10-88552520 |
|
|
|
|
SCREW, (M6 x 20 MM) Stainless Steel |
4 |
|
|
| 34 |
25-833155 |
|
|
|
|
GROMMET |
2 |
|
|
| 35 |
23-8502341 |
|
|
|
|
BUSHING |
2 |
|
|
| 36 |
54-859376 |
|
|
|
|
CLIP |
1 |
|
|
| 37 |
10-88552635 |
|
|
|
|
SCREW, (M8 x 35 MM) |
2 |
|
|
| 38 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
2 |
|
|
| 39 |
32-887937006 |
|
|
|
|
HOSE, Front |
1 |
|
|
| 40 |
54-888988002 |
|
|
|
|
CLAMP, (57.5 mm), Front Electronic Boost Control |
2 |
|
|
| 41 |
32-887938003 |
|
|
|
|
TUBE, Rear |
1 |
|
|
| 42 |
54-888988004 |
|
|
|
|
CLAMP, (62.0 mm), Rear Electronic Boost Control |
2 |
|
|
| 43 |
881879T25 |
|
|
|
|
SENSOR ASSEMBLY, Pitot |
1 |
|
|
| 44 |
22-892403 |
|
|
|
|
FITTING |
1 |
|
|
| 45 |
54-883066 |
|
|
|
|
CLIP, (.865) |
1 |
|
|
