2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Crankshaft, Pistons and Connecting Rods

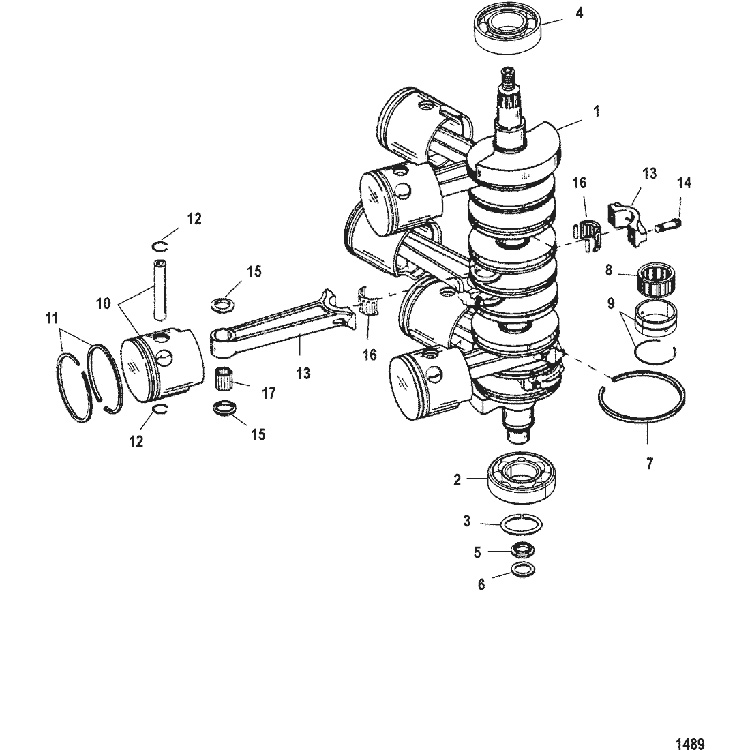

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 455-848330T4 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 2 | 30-67923T | BEARING, Ball (LOWER) | 1 | ||||||
| 3 | 53-67446 | RING, Retaining | 1 | ||||||
| 4 | 30-849819 | BEARING, Ball (UPPER) | 1 | ||||||
| 5 | 54196A6 | CARRIER ASSEMBLY | 1 | ||||||
| 6 | 65800 | PACKING | 1 | ||||||
| 7 | 39-8M0072093 | RING | 9 | 673773 | |||||
| 8 | 31-16756T8 | BEARING, Center Main | 2 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, Bearing Race | 2 | ||||||
| 10 | 2717-827352T20 | PISTON | 3 | 827352T9 | |||||
| 10 | 2717-827352T20 | PISTON | 3 | ||||||
| 10 | 2717-827353T20 | PISTON | 3 | 827353T9 | |||||
| 10 | 2717-827353T20 | PISTON | 3 | ||||||
| 11 | 39-848200A12 | RING SET, Piston | 1 | ||||||
| 11 | 39-840663A12 | RING SET, Piston | 1 | ||||||
| 12 | 53-857196 | LOCK RING | 12 | ||||||
| 13 | 644-818141A9 | CONNECTING ROD ASSEMBLY | 6 | No Longer Available | |||||
| 14 | 10-848475 | SCREW | 12 | ||||||
| 15 | 12-8M0012298 | WASHER | 12 | 812876 | |||||
| 16 | 31-8M0082405 | BEARING KIT | 6 | ||||||
| 17 | 29-822553 | BEARING, Needle | 174 | ||||||
| - | 27-849770A1 | GASKET SET, Engine | 1 | ||||||
| - | 61-848040T48 | POWERHEAD ASSEMBLY | 1 | 848040T40 | No Longer Available |
