2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Cylinder Block and End Caps

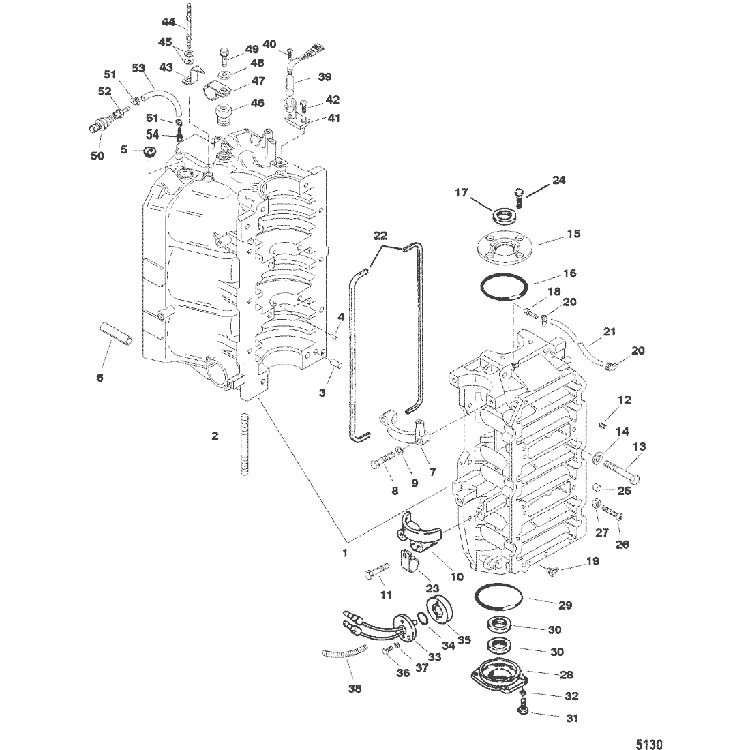

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 884-822230A47         CYLINDER BLOCK 1 No Longer Available
- 51-18594T11         LINER ASSEMBLY, Cylinder 1
2 16-8M0034443         STUD, (.375-16/.375-24 x 2.040) 2 847530
2 16-8M0034430         STUD, (.375-16/.375-24 x 2.490) 2 847529
2 16-822358         STUD 2 No Longer Available
2 16-8M0034437         STUD, (.375-16/.375-24 x 5.750) 2/4 847532
2 16-847533         STUD 2
3 17-43044         PIN, Dowel - Without Hole (.375 x .625) (FRONT) 3
4 17-8M0036405         PIN (BEARING RACE) 2 67296
5 22-821881         PIPE PLUG (WATER JACKET) 1 No Longer Available
6 32-8M0108355         HOSE, (57.00 Inches Bulk) 2 830756109
6 32-8M0108355         HOSE, (57.00 Inches Bulk) 2 830756109
7 8M0088723         COVER, Starter Motor (UPPER) 1 422491
8 10-840202         SCREW, (.312-18 x 1.500) 2
9 13-53166         LOCKWASHER, (.312) 4
10 76867         COVER, Lower 1
11 10-815549         SCREW, (.312-18 x 2.00) 2
12 21-42657A3         CHECK VALVE 3
13 10-66717         SCREW, (.375-16 x 3.250) 8
13 10-823188         SCREW 2
13 10-8231991         SCREW 10
14 12-822838         WASHER, (.401 x .745 x .097) 20
15 849366T1         PLATE 1
16 25-54030         O-RING, (2.987 x .103) 1
17 26-41953         SEAL 1
18 21-426233         CHECK VALVE 1
19 21-818189A1         CHECK VALVE (45 Degrees) 1
20 56762         TIE STRAP, (4.00 Inches) 2
21 32-6628570         TUBING, Tygon (48.00 Inches Bulk), Cut to 18 Inches 2
22 27-11338         GASKET 2
23 54-849525         CLIP 1
24 10-881190         SCREW, (.312-18 x 1.00) 4
25 26852         CAP, Nylon 1
26 10-64022         SCREW, (.250-20 x 2.125) 1
27 11-64015         NUT, (.250-20) 1
28 1156-7809T1         END CAP ASSEMBLY, Lower 1
29 25-62700         O-RING, (3.237 x .103) 1
30 26-41953         SEAL 2
31 10-28636         SCREW, (.250-20 x .750) 4
32 13-26992         LOCKWASHER, (.250) Stainless Steel 4
33 13221T01         SENSOR ASSEMBLY, Temperature 1 13221A1
34 25-45711         O-RING, (.612 x .103) 2
35 816885         ADAPTOR 1
36 10-34696         SCREW, (#8-32 x .750) 2
37 12-20670         WASHER 2
38 32-828547253         CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk), Cut to 2-3/4 Inches 1
39 8285581         ENCODER 1
40 10-31716         SCREW, (.250-20 x .620) 1 No Longer Available
41 8494832         BRACKET 1
42 10-90192         SCREW, (.250-20 x .750) Stainless Steel 1
43 849364         TIMING POINTER 1 No Longer Available
44 16-849823         STUD 1 No Longer Available
45 12-72761         WASHER, (.203 x .562 x .060) Stainless Steel 2
46 22-328022         PLUG, Pipe (.125-27) Brass 1
47 54-849775         CLAMP 1
48 12-814806         WASHER, (.344 x .688 x .065) Stainless Steel 1
49 10-90285         SCREW, (.312-18 x .625) 1
50 881879A7         SENSOR KIT, (0-50 PSI) 1
50 8M6000628         SENSOR 1 856535
51 54-816311T         TIE STRAP, (8.00 Inches) 2
52 22-856594         FITTING, Barbed 1
53 32-9912878         HOSE, (.187) (26.00 Inches Bulk) 1
53 32-9912878         HOSE, (.187) (26.00 Inches Bulk) 1
54 22-859092         FITTING 1
- 27-849770A1         GASKET SET, Engine 1
- 61-848040T48         POWERHEAD ASSEMBLY 1 848040T40 No Longer Available
