| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

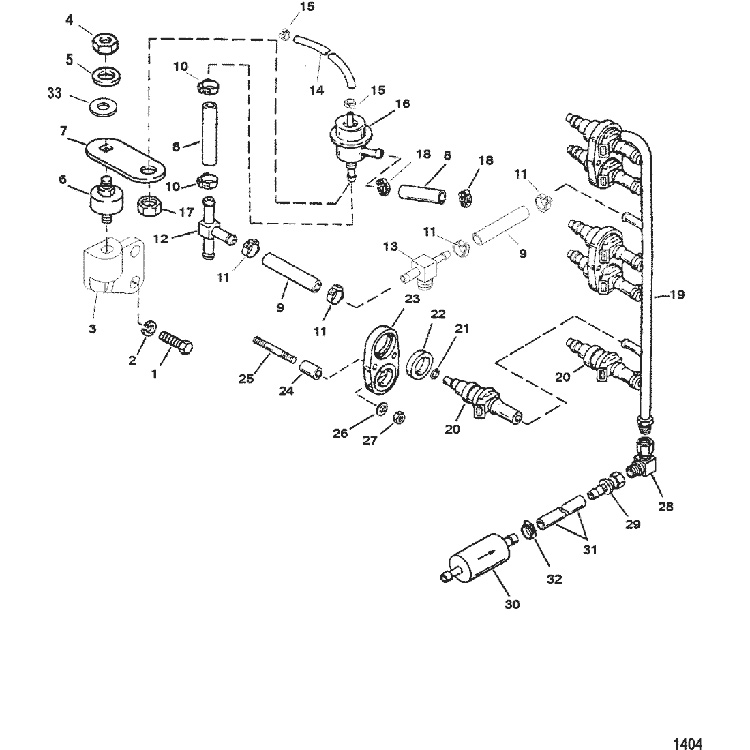

| 1 |
10-28667 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
| 2 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 3 |
8490211 |
|
|
|
|
BRACKET |
1 |
|
|
| 4 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 5 |
13-78968 |
|
|
|
|
LOCKWASHER, Internal (.250) |
1 |
|
|
| 6 |
12234 |
|
|
|
|
RUBBER MOUNT |
1 |
|
No Longer Available |
| 7 |
99944 |
|
|
|
|
SUPPORT |
1 |
|
|
| 8 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk), Cut to 3-1/2 Inches |
2 |
|
|
| 9 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk), Cut to 2 Inches |
2 |
|
|
| 10 |
54-13791 |
|
|
|
|
CLAMP, (15.7) |
2 |
|
|
| 11 |
54-12999 |
|
|
|
|
CLAMP, (14.0) |
4 |
|
|
| 12 |
22-17207 |
|
|
|
|
FITTING |
1 |
|
|
| 13 |
22-849606 |
|
|
|
|
T FITTING |
1 |
|
|
| 14 |
32-6628570 |
|
|
|
|
TUBING, Tygon (48.00 Inches Bulk), Cut to 6 Inches |
1 |
|
|
| 15 |
56762 |
|
|
|
|
TIE STRAP, (4.00 Inches) |
2 |
|
|
| 16 |
94820T |
|
|
|
|
REGULATOR, Fuel |
1 |
|
|
| 17 |
11-15018 |
|
|
|
|
NUT |
1 |
|
|
| 18 |
54-815504104 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 19 |
17206T4 |
|
|
|
|
FUEL RAIL |
1 |
|
|
| 20 |
988181 |
|
|
|
|
INJECTOR, Fuel |
6 |
|
|
| 21 |
26-94219 |
|
|
|
|
SEAL |
6 |
|
|
| 22 |
25-99123 |
|
|
|
|
GROMMET |
6 |
|
|
| 23 |
98716 |
|
|
|
|
HOLD DOWN |
3 |
|
|
| 24 |
98717 |
|
|
|
|
SPACER |
6 |
|
|
| 25 |
16-21184 |
|
|
|
|
STUD, 1/4-28 x 2 |
6 |
|
|
| 26 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
6 |
|
|
| 27 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
6 |
|
|
| 28 |
22-818699 |
|
|
|
|
FITTING |
1 |
|
|
| 29 |
22-69406 |
|
|
|
|
FITTING |
1 |
|
|
| 30 |
35-818700T |
|
|
|
|
FILTER, Fuel |
1 |
|
|
| 31 |
32-84876177 |
|
|
|
|
HOSE, (84.00 Inches Bulk), 84 Inches Required |
1 |
|
|
| 32 |
54-848763 |
|
|
|
|
CLAMP, (19.8 mm) |
1 |
|
|
| 32 |
54-848764 |
|
|
|
|
CLAMP, (21 mm) |
1 |
|
|
| 33 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
1 |
|
|
| - |
27-849770A1 |
|
|
|
|
GASKET SET, Engine |
1 |
|
|
| - |
61-848040T48 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
848040T40 |
No Longer Available |
