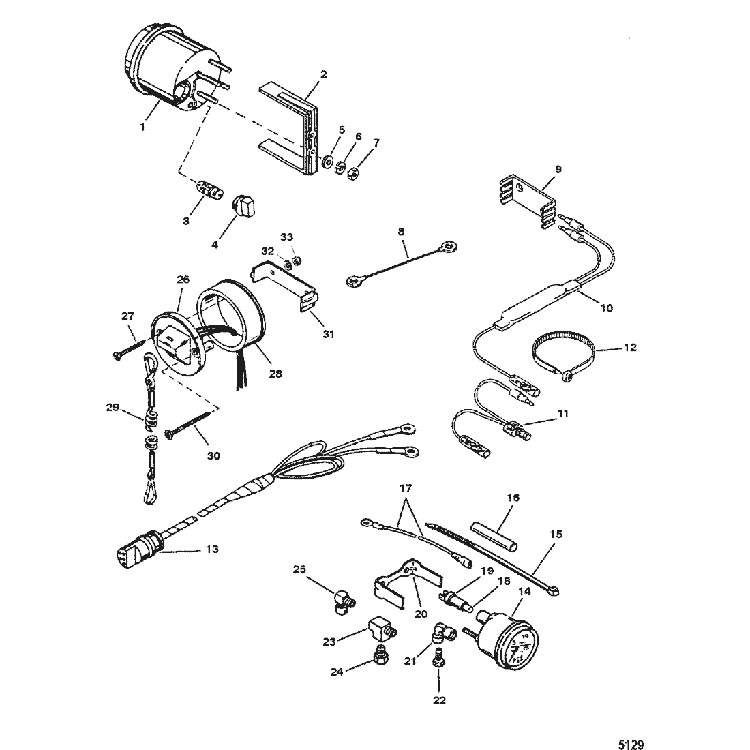

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
79-840526A1 |
|
|
|
|
TACHOMETER |
1 |
|
No Longer Available |
| 2 |
79101T |
|
|
|
|
BRACKET |
1 |
|
No Longer Available |
| 3 |
88-72729 |
|
|
|
|
LIGHT BULB, Wedge Base (14V - .19W) |
1 |
|
|
| 4 |
88-79888 |
|
|
|
|
SOCKET, Light Bulb |
1 |
|
|
| 5 |
12-24676 |
|
|
|
|
WASHER, (.200 x .440 x .032) |
5 |
|
|
| 6 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) Stainless Steel |
5 |
|
|
| 7 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass |
5 |
|
|
| 8 |
84-86322A7 |
|
|
|
|
CABLE ASSEMBLY, (1.50 Feet) Black |
1 |
|
|
| 8 |
84-86323A5 |
|
|
|
|
CABLE ASSEMBLY, (1.50 Feet) Purple |
1 |
|
|
| 9 |
79146 |
|
|
|
|
RETAINER |
AR |
|
|
| 10 |
812497A2 |
|
|
|
|
DIODE ASSEMBLY |
1 |
|
No Longer Available |
| 11 |
84-11149A2 |
|
|
|
|
CABLE ASSEMBLY, (6.00 Inches) |
1 |
|
|
| 12 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 13 |
84-86396A8 |
|
|
|
|
HARNESS ASSEMBLY, Tachometer (5.00 Feet) |
1 |
|
|
| 14 |
79-895288A23 |
|
|
|
|
GAUGE KIT, Water Pressure (2-30 PSI) White Face, Black Graduation, White Bezel |
1 |
859688A11 |
|
| 14 |
79-895288Q43 |
|
|
|
|
GAUGE KIT, Water Pressure (2-30 PSI) Black Face, White Graduation, Black Bezel |
1 |
858654A4 |
|
| 15 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
5 |
|
|
| 16 |
32-64088A09 |
|
|
|
|
TUBING, (53.00 Feet Bulk) |
1 |
640886 |
|
| 17 |
84-88532A1 |
|
|
|
|
CABLE ASSEMBLY, (2.00 Feet) Dark Blue |
1 |
|
No Longer Available |
| 17 |
84-86322A16 |
|
|
|
|
CABLE ASSEMBLY, (2.00 Feet) Black |
1 |
|
|
| 18 |
88-72729 |
|
|
|
|
LIGHT BULB, Wedge Base (14V - .19W) |
1 |
|
|
| 19 |
88-825362 |
|
|
|
|
SOCKET |
1 |
|
No Longer Available |
| 20 |
825363 |
|
|
|
|
BRACKET |
1 |
|
No Longer Available |
| 21 |
22-63651 |
|
|
|
|
ELBOW (90 DEGREES) |
2 |
|
No Longer Available |
| 22 |
22-63670 |
|
|
|
|
FITTING |
2 |
|
No Longer Available |
| 23 |
22-64706001 |
|
|
|
|
TEE |
1 |
64706 |
|
| 24 |
22-36492 |
|
|
|
|
BUSHING, Reducer |
1 |
|
|
| 25 |
22-77863 |
|
|
|
|
FITTING |
1 |
|
No Longer Available |
| 26 |
87-19674A1 |
|
|
|
|
SWITCH ASSEMBLY, Lanyard |
1 |
|
No Longer Available |
| 27 |
10-18303 |
|
|
|
|
SCREW, (.190-16 x 1.750) Stainless Steel |
2 |
|
|
| 28 |
813679 |
|
|
|
|
ADAPTER |
1 |
|
|
| 29 |
15920Q54 |
|
|
|
|
LANYARD ASSEMBLY |
1 |
|
No Longer Available |
| 30 |
10-32866 |
|
|
|
|
SCREW, (#10-32 x 2.00) Stainless Steel |
2 |
|
|
| 31 |
18321 |
|
|
|
|
CLAMP, Mounting |
1 |
|
|
| 32 |
12-24676 |
|
|
|
|
WASHER, (.200 x .440 x .032) |
2 |
|
|
| 33 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
